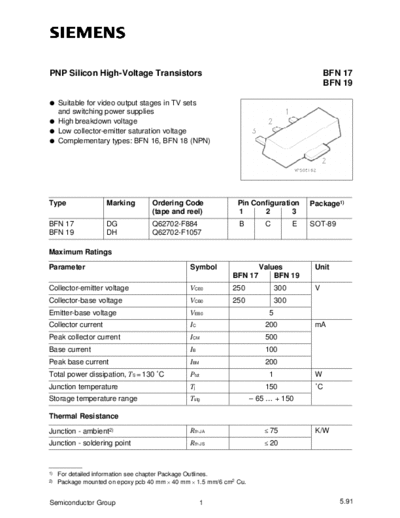

Image preview - the first page of the document
>> Download bfn17_bfn19 documenatation <<
Text preview - extract from the document
PNP Silicon High-Voltage Transistors BFN 17
BFN 19
q Suitable for video output stages in TV sets
and switching power supplies
q High breakdown voltage
q Low collector-emitter saturation voltage
q Complementary types: BFN 16, BFN 18 (NPN)
Type Marking Ordering Code Pin Configuration Package1)
(tape and reel) 1 2 3
BFN 17 DG Q62702-F884 B C E SOT-89
BFN 19 DH Q62702-F1057
Maximum Ratings
Parameter Symbol Values Unit
BFN 17 BFN 19
Collector-emitter voltage VCE0 250 300 V
Collector-base voltage VCB0 250 300
Emitter-base voltage VEB0 5
Collector current IC 200 mA
Peak collector current ICM 500
Base current IB 100
Peak base current IBM 200
Total power dissipation, TS = 130 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
