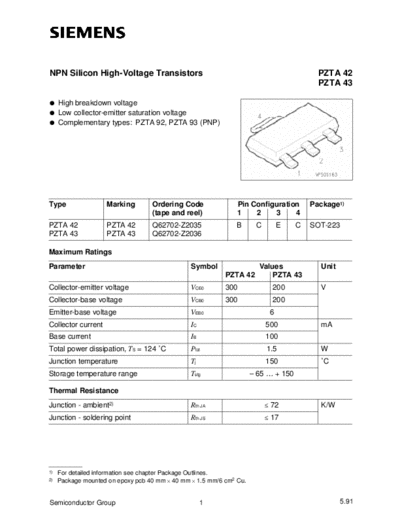

Image preview - the first page of the document
pzta42


>> Download pzta42 documenatation <<

Text preview - extract from the document
NPN Silicon High-Voltage Transistors                                                        PZTA 42
                                                                                            PZTA 43

q High breakdown voltage
q Low collector-emitter saturation voltage
q Complementary types: PZTA 92, PZTA 93 (PNP)




Type                Marking        Ordering Code               Pin Configuration          Package1)
                                   (tape and reel)             1    2    3     4
PZTA 42             PZTA 42        Q62702-Z2035               B        C          E   C   SOT-223
PZTA 43             PZTA 43        Q62702-Z2036

Maximum Ratings
Parameter                                       Symbol                  Values              Unit
                                                           PZTA 42          PZTA 43
Collector-emitter voltage                       VCE0       300                200           V
Collector-base voltage                          VCB0       300                200
Emitter-base voltage                            VEB0                          6
Collector current                               IC                         500              mA
Base current                                    IB                         100
Total power dissipation, TS = 124
