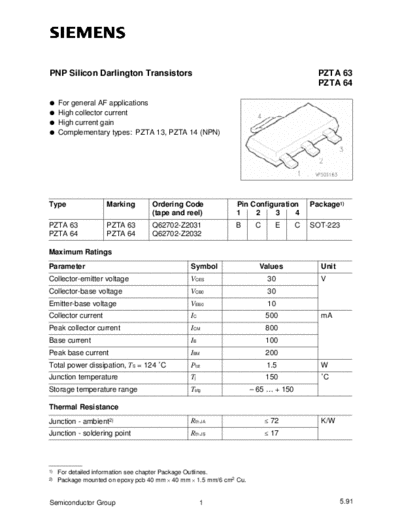

Image preview - the first page of the document
pzta63


>> Download pzta63 documenatation <<

Text preview - extract from the document
PNP Silicon Darlington Transistors                                                          PZTA 63
                                                                                            PZTA 64

q For general AF applications
q High collector current
q High current gain
q Complementary types: PZTA 13, PZTA 14 (NPN)




Type                Marking        Ordering Code              Pin Configuration           Package1)
                                   (tape and reel)            1    2    3     4
PZTA 63             PZTA 63        Q62702-Z2031               B       C       E       C   SOT-223
PZTA 64             PZTA 64        Q62702-Z2032

Maximum Ratings
Parameter                                       Symbol                  Values              Unit
Collector-emitter voltage                       VCES                      30                V
Collector-base voltage                          VCB0                      30
Emitter-base voltage                            VEB0                      10
Collector current                               IC                        500               mA
Peak collector current                          ICM                       800
Base current                                    IB                        100
Peak base current                               IBM                       200
Total power dissipation, TS = 124
