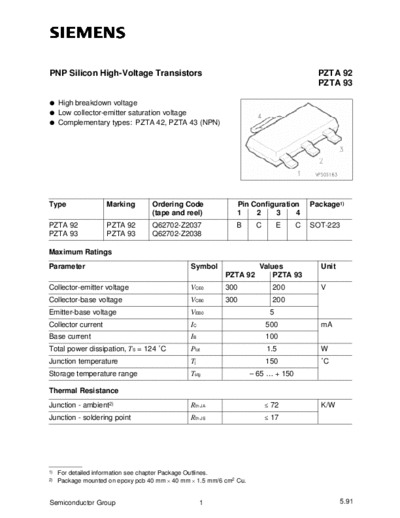

Image preview - the first page of the document
pzta92


>> Download pzta92 documenatation <<

Text preview - extract from the document
PNP Silicon High-Voltage Transistors                                                        PZTA 92
                                                                                            PZTA 93

q High breakdown voltage
q Low collector-emitter saturation voltage
q Complementary types: PZTA 42, PZTA 43 (NPN)




Type                Marking        Ordering Code               Pin Configuration          Package1)
                                   (tape and reel)             1    2    3     4
PZTA 92             PZTA 92        Q62702-Z2037               B        C          E   C   SOT-223
PZTA 93             PZTA 93        Q62702-Z2038

Maximum Ratings
Parameter                                       Symbol                  Values              Unit
                                                           PZTA 92          PZTA 93
Collector-emitter voltage                       VCE0       300                200           V
Collector-base voltage                          VCB0       300                200
Emitter-base voltage                            VEB0                          5
Collector current                               IC                         500              mA
Base current                                    IB                         100
Total power dissipation, TS = 124
