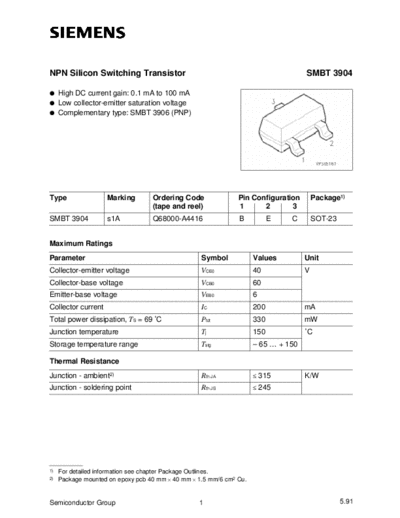

Image preview - the first page of the document



>> Download smbt3904_s1a_sot23 documenatation <<

Text preview - extract from the document

NPN Silicon Switching Transistor                                                      SMBT 3904

q High DC current gain: 0.1 mA to 100 mA
q Low collector-emitter saturation voltage
q Complementary type: SMBT 3906 (PNP)




Type                Marking        Ordering Code               Pin Configuration          Package1)
                                   (tape and reel)             1      2       3
SMBT 3904           s1A            Q68000-A4416                B           E     C        SOT-23


Maximum Ratings
Parameter                                          Symbol            Values           Unit
Collector-emitter voltage                          VCE0              40               V
Collector-base voltage                             VCB0              60
Emitter-base voltage                               VEB0              6
Collector current                                  IC                200              mA
Total power dissipation, TS = 69
