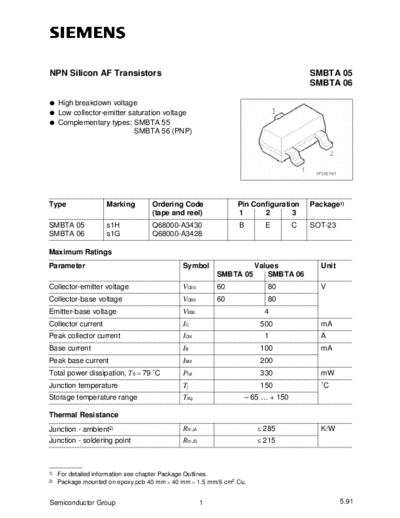

Image preview - the first page of the document
>> Download smbta05 documenatation <<
Text preview - extract from the document
NPN Silicon AF Transistors SMBTA 05
SMBTA 06
q High breakdown voltage
q Low collector-emitter saturation voltage
q Complementary types: SMBTA 55
SMBTA 56 (PNP)
Type Marking Ordering Code Pin Configuration Package1)
(tape and reel) 1 2 3
SMBTA 05 s1H Q68000-A3430 B E C SOT-23
SMBTA 06 s1G Q68000-A3428
Maximum Ratings
Parameter Symbol Values Unit
SMBTA 05 SMBTA 06
Collector-emitter voltage VCE0 60 80 V
Collector-base voltage VCB0 60 80
Emitter-base voltage VEB0 4
Collector current IC 500 mA
Peak collector current ICM 1 A
Base current IB 100 mA
Peak base current IBM 200
Total power dissipation, TS = 79 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
