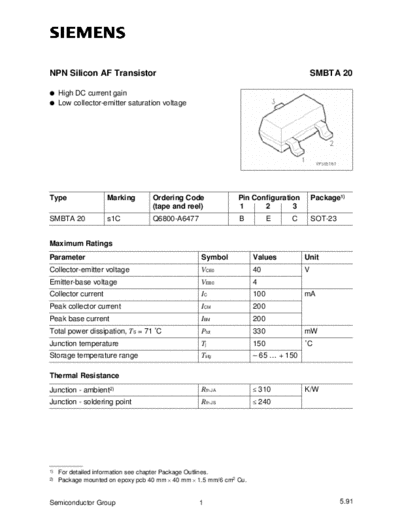

Image preview - the first page of the document



>> Download smbta20 documenatation <<

Text preview - extract from the document

NPN Silicon AF Transistor                                                                 SMBTA 20

q High DC current gain
q Low collector-emitter saturation voltage




Type                Marking        Ordering Code               Pin Configuration          Package1)
                                   (tape and reel)             1      2       3
SMBTA 20            s1C            Q6800-A6477                 B           E     C        SOT-23


Maximum Ratings
Parameter                                          Symbol            Values           Unit
Collector-emitter voltage                          VCE0              40               V
Emitter-base voltage                               VEB0              4
Collector current                                  IC                100              mA
Peak collector current                             ICM               200
Peak base current                                  IBM               200
Total power dissipation, TS = 71
