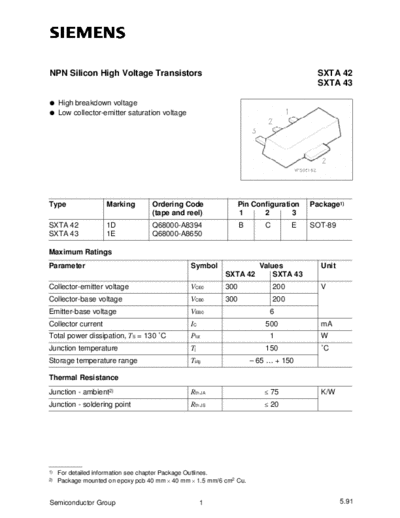

Image preview - the first page of the document
>> Download sxta42 documenatation <<
Text preview - extract from the document
NPN Silicon High Voltage Transistors SXTA 42
SXTA 43
q High breakdown voltage
q Low collector-emitter saturation voltage
Type Marking Ordering Code Pin Configuration Package1)
(tape and reel) 1 2 3
SXTA 42 1D Q68000-A8394 B C E SOT-89
SXTA 43 1E Q68000-A8650
Maximum Ratings
Parameter Symbol Values Unit
SXTA 42 SXTA 43
Collector-emitter voltage VCE0 300 200 V
Collector-base voltage VCB0 300 200
Emitter-base voltage VEB0 6
Collector current IC 500 mA
Total power dissipation, TS = 130 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
