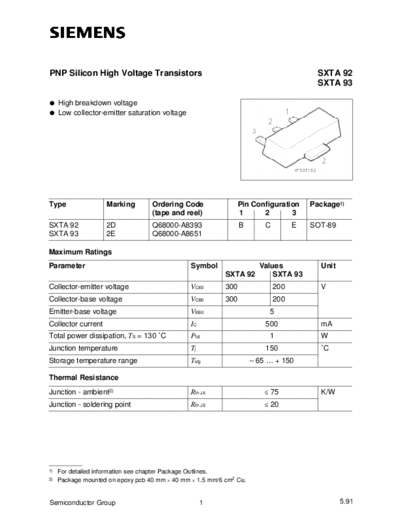

Image preview - the first page of the document
sxta92


>> Download sxta92 documenatation <<

Text preview - extract from the document
PNP Silicon High Voltage Transistors                                                    SXTA 92
                                                                                        SXTA 93

q High breakdown voltage
q Low collector-emitter saturation voltage




Type                Marking        Ordering Code                 Pin Configuration     Package1)
                                   (tape and reel)               1      2       3
SXTA 92             2D             Q68000-A8393                  B       C         E   SOT-89
SXTA 93             2E             Q68000-A8651

Maximum Ratings
Parameter                                       Symbol                  Values           Unit
                                                           SXTA 92          SXTA 93
Collector-emitter voltage                       VCE0       300               200         V
Collector-base voltage                          VCB0       300               200
Emitter-base voltage                            VEB0                        5
Collector current                               IC                        500            mA
Total power dissipation, TS = 130
