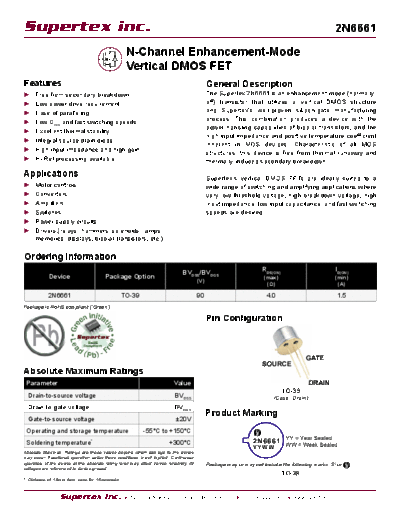

Supertex inc.                                                                                                                                         2N6661
                                                    N-Channel Enhancement-Mode
                                                    Vertical DMOS FET
Features                                                                                        General Description
     Free from secondary breakdown                                                              The Supertex 2N6661 is an enhancement-mode (normally-
     Low power drive requirement                                                                off) transistor that utilizes a vertical DMOS structure
     Ease of paralleling                                                                        and Supertex's well-proven silicon-gate manufacturing
                                                                                                process. This combination produces a device with the
     Low CISS and fast switching speeds
                                                                                                power handling capabilities of bipolar transistors, and the
     Excellent thermal stability
                                                                                                high input impedance and positive temperature coefficient
     Integral source-drain diode
                                                                                                inherent in MOS devices. Characteristic of all MOS
     High input impedance and high gain                                                         structures, this device is free from thermal runaway and
     Hi-Rel processing available                                                                thermally-induced secondary breakdown.

Applications                                                                                    Supertex's vertical DMOS FETs are ideally suited to a
     Motor controls                                                                             wide range of switching and amplifying applications where
     Converters                                                                                 very low threshold voltage, high breakdown voltage, high
     Amplifiers                                                                                 input impedance, low input capacitance, and fast switching
     Switches                                                                                   speeds are desired.
     Power supply circuits
     Drivers (relays, hammers, solenoids, lamps,
     memories, displays, bipolar transistors, etc.)

Ordering Information
                                                                                 BVDSS/BVDGS                           RDS(ON)                        ID(ON)
             Device                      Package Option                                                                 (max)                         (min)
                                                                                          (V)
                                                                                                                         ()                            (A)

            2N6661                               TO-39                                    90                             4.0                           1.5
Package is RoHS compliant (`Green')

                                                                                                Pin Configuration



                                                                                                                                         GATE
                                                                                                                       SOURCE
Absolute Maximum Ratings
 Parameter                                                                  Value                                                            DRAIN
                                                                                                                                 TO-39
  Drain-to-source voltage                                                    BVDSS                                          (Case : Drain)
  Drain-to-gate voltage                                                     BVDGS
                                                                                                Product Marking
  Gate-to-source voltage
