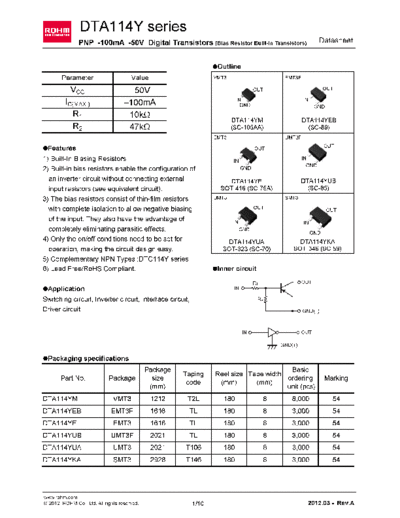

Image preview - the first page of the document



>> Download dta114y documenatation <<

Text preview - extract from the document

               DTA114Y series
               PNP -100mA -50V Digital Transistors (Bias Resistor Built-in Transistors)                        Datasheet


                                                                 Outline
       Parameter                      Value                      VMT3                          EMT3F

           VCC                     50V                                              OUT                           OUT

         IC(MAX.)                  100mA                                  IN
                                                                            GND
                                                                                                       IN
                                                                                                             GND
           R1                      10k
                                                                        DTA114YM                       DTA114YEB
           R2                      47k                                  (SC-105AA)                       (SC-89)
                                                                 EMT3                          UMT3F
                                                                                                                  OUT
Features                                                                            OUT

1) Built-In Biasing Resistors                                           IN
                                                                                                       IN
                                                                                                         GND
2) Built-in bias resistors enable the configuration of                        GND

  an inverter circuit without connecting external                     DTA114YE                         DTA114YUB
  input resistors (see equivalent circuit).                        SOT-416 (SC-75A)                      (SC-85)
3) The bias resistors consist of thin-film resistors             UMT3                          SMT3

  with complete isolation to allow negative biasing                                 OUT                            OUT
  of the input. They also have the advantage of                         IN                             IN
  completely eliminating parasitic effects.                                  GND
                                                                                                            GND
4) Only the on/off conditions need to be set for                      DTA114YUA                     DTA114YKA
  operation, making the circuit design easy.                        SOT-323 (SC-70)               SOT-346 (SC-59)
5) Complementary NPN Types :DTC114Y series
6) Lead Free/RoHS Compliant.                                     Inner circuit

                                                                                    R1                 OUT
Application                                                              IN

Switching circuit, Inverter circuit, Interface circuit,                              R2

Driver circuit                                                                                         GND(+)



                                                                              IN                       OUT

                                                                                              GND(+)

Packaging specifications
                                             Package                                   Basic
                                                       Taping    Reel size Tape width
       Part No.             Package            size                                   ordering                    Marking
                                                        code      (mm)       (mm)
                                              (mm)                                    unit (pcs)
DTA114YM                      VMT3            1212      T2L         180                   8       8,000             54
DTA114YEB                    EMT3F            1616      TL          180                   8       3,000             54
DTA114YE                      EMT3            1616      TL          180                   8       3,000             54
DTA114YUB                    UMT3F            2021      TL          180                   8       3,000             54
DTA114YUA                     UMT3            2021     T106         180                   8       3,000             54
DTA114YKA                     SMT3            2928     T146         180                   8       3,000             54




www.rohm.com
