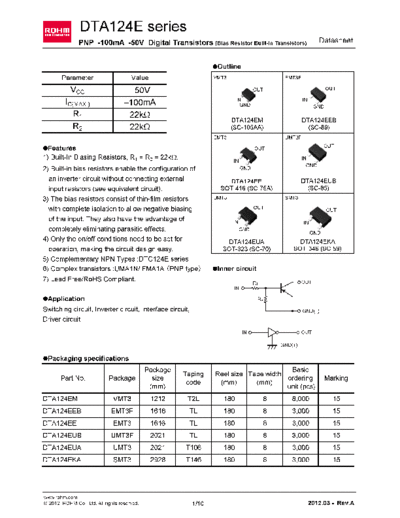

Image preview - the first page of the document



>> Download dta124e documenatation <<

Text preview - extract from the document

               DTA124E series
               PNP -100mA -50V Digital Transistors (Bias Resistor Built-in Transistors)                        Datasheet


                                                                 Outline
       Parameter                      Value                      VMT3                          EMT3F

           VCC                     50V                                              OUT                            OUT

         IC(MAX.)                  100mA                                  IN
                                                                            GND
                                                                                                       IN
                                                                                                             GND
           R1                      22k
                                                                        DTA124EM                       DTA124EEB
           R2                      22k                                  (SC-105AA)                       (SC-89)
                                                                 EMT3                          UMT3F
                                                                                                                  OUT
Features                                                                            OUT
1) Built-In Biasing Resistors, R1 = R2 = 22k.                           IN
                                                                                                       IN
                                                                                                         GND
2) Built-in bias resistors enable the configuration of                        GND

  an inverter circuit without connecting external                    DTA124EE                          DTA124EUB
  input resistors (see equivalent circuit).                        SOT-416 (SC-75A)                      (SC-85)
3) The bias resistors consist of thin-film resistors             UMT3                          SMT3

  with complete isolation to allow negative biasing                                 OUT                            OUT
  of the input. They also have the advantage of                         IN                             IN
  completely eliminating parasitic effects.                                  GND
                                                                                                            GND
4) Only the on/off conditions need to be set for                      DTA124EUA                     DTA124EKA
  operation, making the circuit design easy.                        SOT-323 (SC-70)               SOT-346 (SC-59)
5) Complementary NPN Types :DTC124E series
6) Complex transistors :UMA1N/ FMA1A PNP type                    Inner circuit
7) Lead Free/RoHS Compliant.                                                        R1                 OUT
                                                                         IN

Application                                                                          R2

Switching circuit, Inverter circuit, Interface circuit,                                                GND(+)
Driver circuit
                                                                              IN                       OUT

                                                                                              GND(+)

Packaging specifications
                                             Package                                   Basic
                                                       Taping    Reel size Tape width
       Part No.             Package            size                                   ordering                     Marking
                                                        code      (mm)       (mm)
                                              (mm)                                    unit (pcs)
DTA124EM                      VMT3            1212      T2L         180                   8       8,000              15
DTA124EEB                    EMT3F            1616      TL          180                   8       3,000              15
DTA124EE                      EMT3            1616      TL          180                   8       3,000              15
DTA124EUB                    UMT3F            2021      TL          180                   8       3,000              15
DTA124EUA                     UMT3            2021     T106         180                   8       3,000              15
DTA124EKA                     SMT3            2928     T146         180                   8       3,000              15




www.rohm.com
