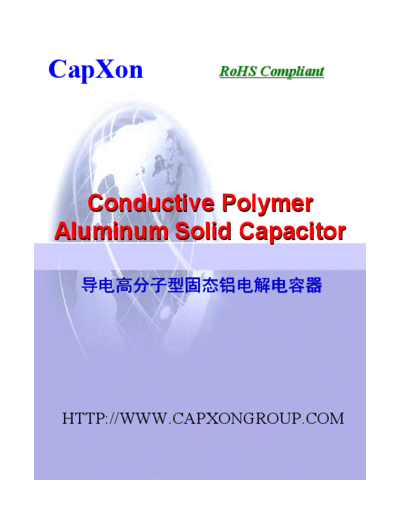

Image preview - the first page of the document
>> Download Capxon 2008 Polymer Full documenatation <<
Text preview - extract from the document
CapXon RoHS Compliant
Conductive Polymer
Aluminum Solid Capacitor
HTTP://WWW.CAPXONGROUP.COM
CapXon Contents CP-CAP
Aluminum Solid Capacitors With Conductive Polymer
Contents Page
1. List of the Solid Capacitors .. 2
2. Solid Capacitor System 3
3. Lead Cutting and Forming .. 4
4. Lead Tapping .. 5
5. Lead Tapping Package for Radial Type ... 7
6. Lead Tapping Package for SMD Type 8
7.Part Number System 9
8.Precautions and Guidelines 11
9.Specifications for each series . 16
Note : 1. Specification and dimensions in this catalog are subject to change without notice.
If necessary, drawing can be provided.
2. Catalog printed in Aug. 2008
1
CapXon List of the Solid Capacitors
Series Operating Leakage Load
Working
Sleeve Type Features Temperature Capacitance Current Life page
Voltage
Color Range (max) /Hrs
PL Radial Very low ESR -55 to +105 2.5-16V 180~3500uF 0.2CV 2000 16
Conductive Polymer Electrolyte
PS Radial Standard -55 to +105 2.5-25V 39~3500uF 0.2CV 2000 19
PU Radial Ultra low ESR -55 to +105 2.5-10V 180~3500uF 0.2CV 2000 22
PX Radial Low profile -55 to +105 2.5-25V 10~560uF 300uA 2000 25
PE Radial Low ESR & down size -55 to +105 2.5-16V 180~820uF 0.2CV 2000 28
PM SMD SMD and Low profile -55 to +105 2.5-25V 10~560uF 300uA 2000 29
PD SMD SMD and Large capacitance -55 to +105 2.5-25V 39~3300uF 0.2CV 2000 32
PV SMD SMD and Low height -55 to +105 2.5-25V 39~2500uF 0.2CV 2000 35
2
CapXon Solid Capacitors System
Conductive Polymer AL.E. Capacitors Radial type
PS PL PU
Ultra low ESR
Low ESR
105 2000H 105 2000H 105 2000H
2.5-25V 2.5-16V 2.5-10V
39~3500uF 180~3500uF 180~3500uF
Low Profile Down size
PX PE
105 2000H 105 2000H
2.5-25V 2.5-6.3V
10~560uF 180~820uF
Conductive Polymer AL.E. Capacitors SMD type
PM PD PV
Low Profile Low height
105 2000H 105 2000H 105 2000H
2.5-25V 2.5-25V 2.5-25V
10~560uF 39~3300uF 39~2500uF
3
CapXon Cutting and Forming for Solid Capacitors
D 4 5 6.3 8 10
F 1.5 2 2.5 3.5 5
d 0.45 0.45 0.45 0.60 0.60 0.60
Fig1 Fig2
Fig1 D 4 5 Fig2 D 4 4 4 5 5 6.3 6.3 8 10
F 2 2.5 F 2.5 3.5 5 3.5 5 3.5 5 5 7.5
D 4 5 6.3 8 10
F 1.5 2.0 2.5 3.5 5.0
Fig1 Fig2
Fig1 D 4 5 Fig2 D 4 4 4 5 5 6.3 6.3 8 10
F 2 2.5 F 2.5 3.5 5 3.5 5 3.5 5 5 7.5
4
CapXon Taping for Solid Capacitors
Code D L d P P0 P1 P2 F F1 W W0 W1 W2 H D0 I h
Fig
