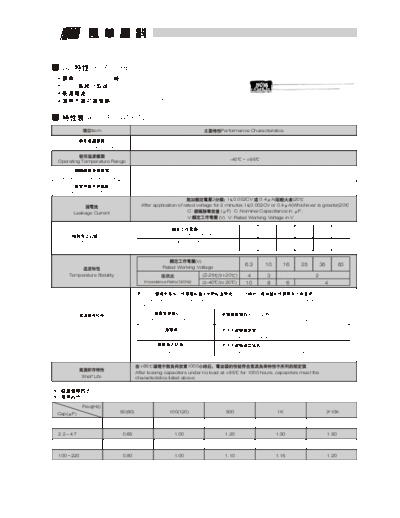

Image preview - the first page of the document
![LH NOVA-Fenghua [radial thru-hole] SL Series](/pics/5c2dcd3e4dcf3.gif)
>> Download LH NOVA-Fenghua [radial thru-hole] SL Series documenatation <<
Text preview - extract from the document
SL FEATURE
: 85 1000 Life time:85 1000 hours
5mm Super miniature series with 7 mm height
Low leakage current
Ideally suited for high stability circuits
SPECIFICATIONS
Item Performance Characteristics
6.3V.DC 50V.DC
Rated Voltage Range
-40 +85
Operating Temperature Range
0.1 F 220 F
Nominal Capacitance Range
Capacitance Tolerance 20%(M,+20 ,120Hz)
2 I 0.002CV 0.4 A( )20
After application of rated voltage for 2 minutes: I 0.002CV or 0.4 A(Whichever is greater)20
Leakage Current C: ( F) C: Nominal Capacitance in F;
V: (V) V: Rated Working Voltage in V
(V)
Rated Working Voltage 6.3 10 16 25 35 50
(tan )
Dissipation Factor tan (MAX)
(20 120Hz) 0.24 0.20 0.16 0.14 0.12 0.10
(V)
Rated Working Voltage
6.3 10 16 25 35 50
Temperature Stability (Z-25 /z+20 ) 4 3 2
Impedance Ratio(120Hz) (z-40 /z+20 ) 10 8 6 4
+85 1000
After applying rated voltage for 1000 hours at +85 , Capacitors meet the characteristics
requirements measured at +20 listed below;
25%
Capacitance Change Within 25% of the initial measured value
Load Life
Leakage current Less than the initial specified value
200%
Tan Less than 200% the initial specified value
+85 1000
After leaving capacitors under no load at +85 for 1000 hours, capacitors meet the
Shelf Life characteristics listed above
MULTIPLIER FOR RIPPLE CURRENT
Frequency coefficient
Freq(Hz)
50(60) 100(120) 500 1K 10K
Cap( F)
0.1 1.0 0.50 1.00 1.20 1.30 1.50
2.2 4.7 0.65 1.00 1.20 1.30 1.50
10 47 0.80 1.00 1.20 1.30 1.50
100 220 0.80 1.00 1.10 1.15 1.20
48
ALUMINUM ELECTROLYTIC CAPACITOR(CD113C SL)
CASE SIZE TABLE
D 4 5 6.3 8
F 0.5 1.5 2.0 2.5 3.5
d 0.1 0.45 0.5
SL
DIMENSIONS, RATED VOLTAGE AND CAPACITANCE
WV(v) 6.3(LA) 10(LB) 16(LC) 25(LD) 35(LE) 50(LF)
Cap( F) (1) (2) (1) (2) (1) (2) (1) (2) (1) (2) (1) (2)
0.1(R10) 4 7 1
0.22(R22) 4 7 2.3
0.33(R33) 4 7 3.5
0.47(R47) 4 7 5.0
1(1R0) 4 7 10
2.2(2R2) 4 7 16
3.3(3R3) 4 7 19
4.7(4R7) 4 7 21 4 7 22 4 7 23 5 7 29
10(100) 4 7 29 5 7 33 5 7 36 6.3 7 44
22(220) 4 7 34 5 7 38 5 7 44 6.3 7 55 6.3 7 57 8 7 65
33(330) 5 7 42 5 7 47 6.3 7 62 6.3 7 63 8 7 72
47(470) 5 7 50 6.3 7 66 6.3 7 73 8 7 80
100(101) 6.3 7 77 8 7 96 8 7 107
220(221) 8 7 130
Max allowable ripple current (mA r.m.s./85 .120Hz)
Case Size D L(mm)
49
