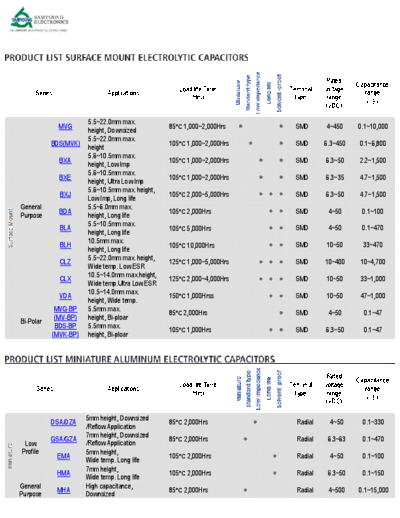

Image preview - the first page of the document
>> Download Samyoung Series Table documenatation <<
Text preview - extract from the document
Rated Capacitance
Load life Time Terminal voltage range
Series Applications
(Hrs) type range
()
(VDC)
5.5~22.0mm max.
MVG 85 1,000~2,000Hrs SMD 4~450 0.1~10,000
height, Downsized
5.5~22.0mm max.
BDS(MVK) 105 1,000~2,000Hrs SMD 6.3~450 0.1~6,800
height
5.6~10.5mm max.
BXA 105 1,000~2,000Hrs SMD 6.3~50 2.2~1,500
height, Low Imp
5.6~10.5mm max.
BXE 105 1,000~2,000Hrs SMD 6.3~35 4.7~1,500
height, Ultra Low Imp
5.6~10.5mm max. height,
BXJ 105 2,000~5,000Hrs SMD 6.3~50 4.7~1,500
Low Imp, Long life
General 5.5~6.0mm max.
BDA 105 2,000Hrs SMD 4~50 0.1~100
Purpose height, Long life
5.5~10.5mm max.
BLA 105 5,000Hrs SMD 4~50 0.1~470
height, Long life
10.5mm max.
BLH 105 10,000Hrs SMD 10~50 33~470
height, Long life
5.5~22.0mm max. height,
CLZ 125 1,000~5,000Hrs SMD 10~400 10~4,700
Wide temp. Low ESR
10.5~14.0mm max.height,
CLX 125 2,000~4,000Hrs SMD 10~50 33~1,000
Wide temp.Ultra Low ESR
10.5~14.0mm max.
VDA 150 1,000Hrss SMD 10~50 47~1,000
height, Wide temp.
MVG-BP 5.5mm max.
85 2,000Hrs SMD 4~50 0.1~47
(MV-BP) height, Bi-ploar
Bi-Polar
BDS-BP 5.5mm max.
105 1,000Hrs SMD 6.3~50 0.1~47
(MVK-BP) height, Bi-ploar
Rated Capacitance
Load life Time Terminal voltage range
Series Applications
(Hrs) type range
()
(VDC)
5mm height, Downsized
DSA/DZA 85 2,000Hrs Radial 4~50 0.1~330
/Reflow Application
7mm height, Downsized
GSA/GZA 85 2,000Hrs Radial 6.3~63 0.1~470
Low /Reflow Application
Profile 5mm height,
EMA 105 2,000Hrs Radial 4~50 0.1~100
Wide temp. Long life
7mm height,
HMA 105 2,000Hrs Radial 6.3~50 0.1~150
Wide temp. Long life
General High capacitance,
MHA 85 2,000Hrs Radial 4~500 0.1~15,000
Purpose Downsized
High capacitance,
KMG 105 1,000~2,000Hrs Radial 6.3~450 0.1~22,000
Downsized
High capacitance,
NHA 105 1,000~2,000Hrs Radial 6.3~500 0.1~15,000
Downsized
Low GSA(SRA)
Height 7mm / General 85 2,000Hrs Radial 6.3~100 0.1~4,700
Leakage -LL/LL
DSA(SRE)
5mm height 85 1,000Hrs Radial 4~50 0.1~47
-BP
GSA-BP 7mm height 85 2,000Hrs Radial 6.3~50 0.1~47
MHA-BP General 85 2,000Hrs Radial 6.3~250 3.3~6,800
Bi-polar
NHA-BP General, Wide temp. 105 1,000Hrs Radial 6.3~250 3.3~6,800
SSP Speaker Network 85 2,000Hrs Radial 25~63 1~100
Horizontal deflection,
KSA 105 1,000Hrs Radial 25, 50 2.2~10
Wide temp.
EXB Height 5mm Ultra Low Imp. 105 2,000Hrs Radial 6.3~35 1~100
HXB Height 7mm Ultra Low Imp. 105 2,000Hrs Radial 6.3~50 10~330
Height 7mm Ultra Low Imp.,
HXL 105 3,000Hrs Radial 6.3~50 10~330
Long life
NXL(LXV) Low Imp., Long life, 105 2,000~5,000Hrs Radial 6.3~100 0.47~15,000
Low Imp., Long life,
NXP(LXZ) 105 2,000~5,000Hrs Radial 6.3~50 33~18,000
Downsized
Low NXA Low Imp.,Long life 105 4,000~10,000Hrs Radial 6.3~100 6.8~18,000
E.S.R
NXB Low Imp.,Long life 105 2,000~5,000Hrs Radial 6.3~100 3.3~8,200
Low
Imp. NXH Low Imp.,Long life 105 6,000~10,000Hrs Radial 6.3~50 27~8,200
NXJ Low Imp.,High ripple 105 5,000Hrs Radial 16~63 10~680
Low Imp.,Long life
NXQ 105 6,000~10,000Hrs Radial 6.3~100 8.2~8,200
High ripple
Low Imp.,Long life
NXK 105 4,000~5,000Hrs Radial 10~50 100~2,700
High ripple
NXF Ultra Low ESR 105 2,000Hrs Radial 6.3~16 470~3,300
NXE Ultra Low ESR, Long life 105 3,000~4,000Hrs Radial 6.3~35 150~3,300
NFD(KMF) High ripple 105 2,000Hrs Radial 160~450 3.3~330
NZE High ripple, Downsized 105 2,000Hrs Radial 160~500 8.2~390
NFC Long life, High ripple 105 2,000~5,000Hrs Radial 160~500 1~470
NFK Long life, High ripple 105 5,000Hrs Radial 160~500 4.7~330
High
NFS Long life, High ripple 105 5,000Hrs Radial 200~400 22~68
Reliability
NFA Long life, High ripple 105 8,000~10,000Hrs Radial 160~500 3.3~330
NFL Long life, High ripple 105 10,000~12,000Hrs Radial 160~500 3.3~470
NLA Long life 105 4,000~10,000Hrs Radial 6.3~50 10~18,000
NLC Long life 105 10,000Hrs Radial 6.3~50 10~680
PXB Wide Temp., Imp. Long life 1252,000~5,000Hrs Radial 10~450 4.7~4,700
Wide Temp., Ultra Low Imp.
PXD 125 2,000~4,000Hrs Radial 10~50 10~4,700
Long life
PHA Wide Temp. 150 1,000Hrs Radial 10~50 100~3,300
AHS Audio grade, Downsized 85 2,000Hrs Radial 10~100 0.1~10,000
Special
PHL For photo flash 5~35 5,000Times Radial 300~330 5~160
Application
NZD Air bag 105 5,000Hrs Radial 16~35 820~5,600
Rated Capacitance
Load life Time Terminal voltage range
Series Applications
(Hrs) type range
()
(VDC)
RDC More Downsized 85 2,000Hrs Pin 16~500 68~56,000
TDA Miniature 105 2,000Hrs Pin 16~500 47~47,000
General
Purpose
TDC More Downsized 105 2,000Hrs Pin 160~450 68~1,200
TEA 15mm height 105 2,000Hrs Pin 160~400 39~390
RLS Miniature, Long life 85 3,000Hrs Pin 160~450 47~1,200
Downsized, Long life,
TLA 105 3,000Hrs Pin 160~500 56~2,200
Wide temp.
Downsized, Long life,
High TLS 105 3,000Hrs Pin 160~450 100~3,300
Wide temp., High ripple
Reliability
UDA Wide Temp. 125 1,000Hrs Pin 16~250 100~10,000
TLC(LXG) Miniature, Long life 105 5,000Hrs Pin 10~500 56~47,000
TLB Miniature, Long life 105 7,000Hrs Pin 160~450 47~2,200
No spark with DC
RVA 85 2,000Hrs Pin 200~450 68~2,200
overvoltage
No spark with DC
Special TVA 105 2,000Hrs Pin 200~450 68~2,200
overvoltage
Application
DL General Audio 85 2,000Hrs Pin 50~100 3,300~22,000
AHS Hi-Fi Audio Miniature 85 2,000Hrs Pin 50~100 3,300~22,000
General TGA
General, Wide temp. 105 2,000Hrs Screw 10~400 180~680,000
Purpose (KMH)
RFC
High ripple, Long life 85 5,000Hrs Screw 350~450 2,700~15,000
(RWF)
For RGA High ripple, High voltage 85 2,000Hrs Screw 500~600 100~3,900
Inverter
RFA High ripple, Long life 85 2,000Hrs Screw 500~500 2,200~12,000
TFA High ripple, Long life 105 5,000Hrs Screw 350~450 2,200~10,000
PH For Photo Flash 5~35 5,000Times 330 165~2,000
Pin/Screw
Special
DH For Welding 40 1,000,000Times 315, 475 100~330
Application
RP Customized Product 85 2,000~20,000Hrs Screw 10~450 1,000~20,000
TP Customized Product 1055,000Hrs Screw 350~450 1,300~8,200
Rated
Capacitance
Load life Time Terminal voltage
Series Applications range
(Hrs) type range
()
(VDC)
Vertical type, 125,
APV 125 2,000Hrs SMD 10~35 8.2~82
Low ESR
Vertical type, Stable
ARV 105 2,000Hrs SMD 16~20 22~330
Surface Leakage Current at SV
mount Vertical type, 105,
AXV 105 2,000Hrs SMD 2.5~16 68~2,700
Super Low ESR
Vertical type, 105,
ASV 105 2,000Hrs SMD 2.5~25 6.8~1,500
Low ESR
Radial type, 105,
AXA 105 2,000Hrs Radial 2.5~16 68~2,700
Super Low ESR
Radial
Radial type, 105,
ASA 105 2,000Hrs Radial 2.5~35 6.8~1,50
Low ESR
