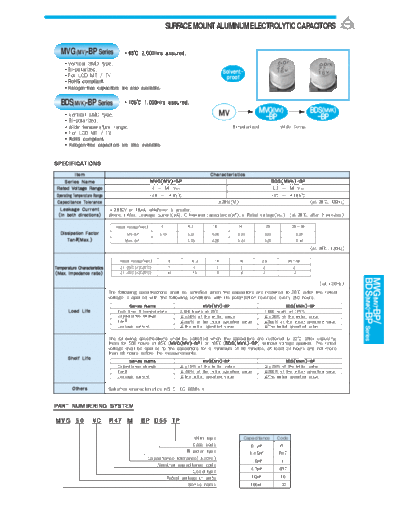

Image preview - the first page of the document
Samyoung [bi-polar smd] MVG (MV) BP Series


>> Download Samyoung [bi-polar smd] MVG (MV) BP Series documenatation <<

Text preview - extract from the document
                                                               SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS


   MVG(MV)-BP Series                 85 2,000Hrs assured.
    Vertical SMD type.
    Bi-polarized.                                                                           Solvent-
    For LCD MT / TV                                                                          proof
    RoHS compliant.
    Halogen-free capacitors are also available.

   BDS(MVK)-BP Series                105 1,000Hrs assured.

    Vertical SMD type.                                                                     MV                  MVG(MV)                    BDS(MVK)
    Bi-polarized.
                                                                                                                -BP                         -BP
    Wide temperature range.                                                                     Bi-polarized              Wide Temp.
    For LCD MT / TV
    RoHS compliant.
    Halogen-free capacitors are also available.


SPECIFICATIONS
           Item                                                                     Characteristics
     Series Name                                       MVG(MV)-BP                                                      BDS(MVK)-BP
 Rated Voltage Range                                    4 ~ 50 V DC                                                     6.3 ~ 50 V DC
 Operating Temperature Range                           -40 ~ +85                                                       -40 ~ +105
 Capacitance Tolerance
