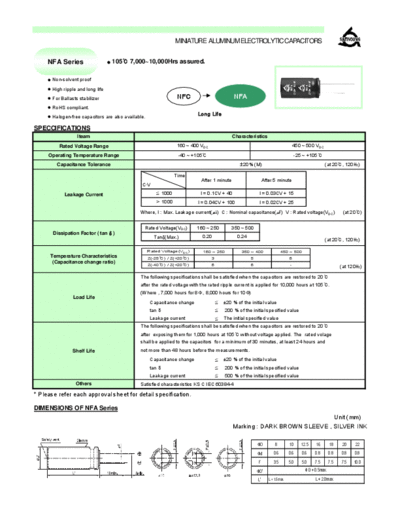

Image preview - the first page of the document



>> Download Samyoung [radial thru-hole] NFA Series documenatation <<

Text preview - extract from the document

                                                                 MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS


     NFA Series                        105 7,000~10,000Hrs assured.

        Non-solvent proof
        High ripple and long life
        For Ballasts stabilizer                                   NFC                         NFA
        RoHS compliant.
        Halogen-free capacitors are also available.                         Long Life

SPECCIFICATIONS
                    Iteam                                                                     Characteristics
           Rated Voltage Range                                    160 ~ 400 VDC                                                      450 ~ 500 VDC
     Operating Temperature Range                                   -40 ~ +105                                                         -25 ~ +105
          Capacitance Tolerance
