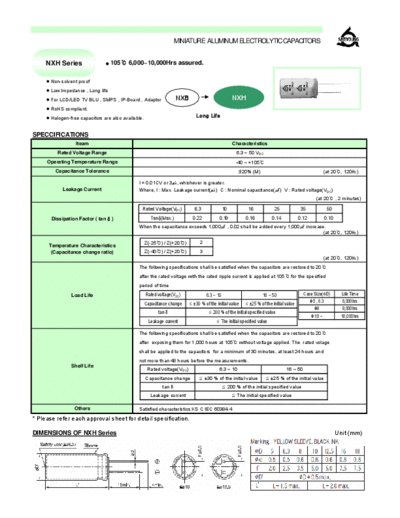

Image preview - the first page of the document
Samyoung [radial thru-hole] NXH Series


>> Download Samyoung [radial thru-hole] NXH Series documenatation <<

Text preview - extract from the document
                                                                     MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS


     NXH Series                     105 6,000~10,000Hrs assured.

        Non-solvent proof
        Low Impedance , Long life
        For LCD/LED TV BLU , SMPS , IP-Board , Adaptor               NXB                             NXH
        RoHS compliant.
        Halogen-free capacitors are also available.                            Long Life


SPECCIFICATIONS
                   Iteam                                                                             Characteristics
           Rated Voltage Range                                                                         6.3 ~ 50 VDC
     Operating Temperature Range                                                                       -40 ~ +105
          Capacitance Tolerance
