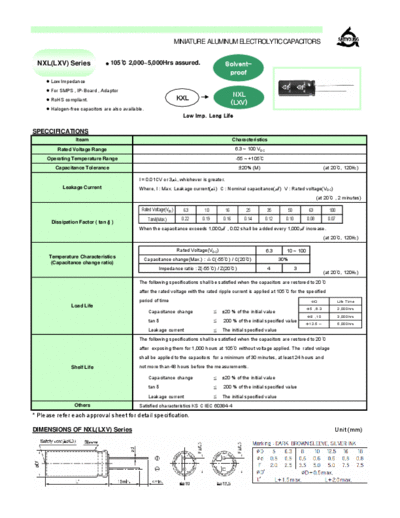

Image preview - the first page of the document



>> Download Samyoung [radial thru-hole] NXL (LXV) Series documenatation <<

Text preview - extract from the document

                                                                       MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS


 NXL(LXV) Series                    105 2,000~5,000Hrs assured.                              Solvent-
                                                                                              proof
        Low Impedance
        For SMPS , IP-Board , Adaptor
                                                                                                   NXL
        RoHS compliant.                                                KXL
                                                                                                  (LXV)
        Halogen-free capacitors are also available.
                                                                         Low Imp. Long Life

SPECCIFICATIONS
                   Iteam                                                                           Characteristics
           Rated Voltage Range                                                                      6.3 ~ 100 VDC
     Operating Temperature Range                                                                    -55 ~ +105
          Capacitance Tolerance
