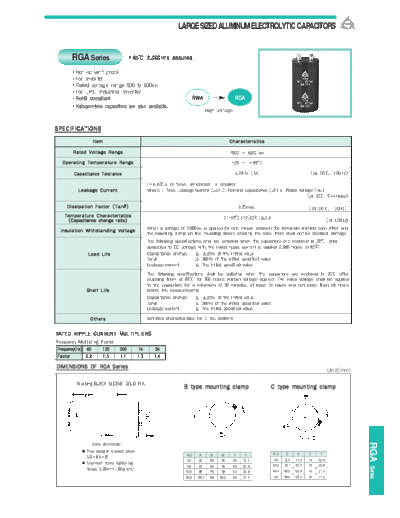

Image preview - the first page of the document



>> Download Samyoung [screw-terminal] RGA Series documenatation <<

Text preview - extract from the document

                                                                  LARGE SIZED ALUMINUM ELECTROLYTIC CAPACITORS


       RGA Series                         85 2,000Hrs assured.
      Non-solvent proof.
      For inverter.
      Rated voltage range:500 to 600VDC
      For UPS, Industrial Inverter.
      RoHS compliant.                                                        RWA                      RGA
      Halogen-free capacitors are also available.
                                                                                      High voltage


SPECIFICATIONS

                    ltem                                                                            Characteristics

        Rated Voltage Range                                                                         500 ~ 600 VDC

   Operating Temperature Range                                                                      -25 ~ +85

        Capacitance Tolerance
