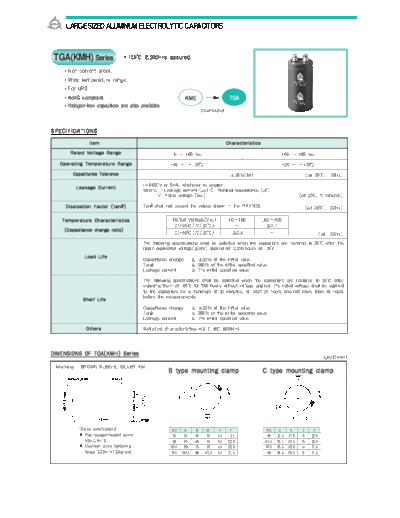

Image preview - the first page of the document



>> Download Samyoung [screw-terminal] TGA (KMH) Series documenatation <<

Text preview - extract from the document

     LARGE SIZED ALUMINUM ELECTROLYTIC CAPACITORS


TGA(KMH) Series                 105 2,000Hrs assured.
    Non-solvent proof.
    Wide temperature range.
    For UPS
    RoHS compliant.                                           KME                        TGA
    Halogen-free capacitors are also available.
                                                                          Downsized



SPECIFICATIONS
               ltem                                                                     Characteristics
       Rated Voltage Range                           10 ~ 100 VDC                                                    160 ~ 400 VDC
   Operating Temperature Range                       -40 ~ +105                                                      -25 ~ +105
        Capacitance Tolerance
