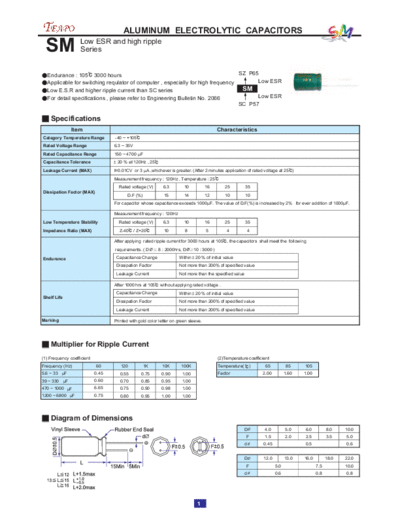

Image preview - the first page of the document



>> Download Teapo [radial thru-hole] SM Series documenatation <<

Text preview - extract from the document

                                       ALUMINUM ELECTROLYTIC CAPACITORS

  SM               Low ESR and high ripple
                   Series


  Endurance : 105 3000 hours                                                     SZ P65
  Applicable for switching requlator of computer , especially for high frequency       Low ESR
  Low E.S.R and higher ripple current than SC series                              SM
  For detail specifications , please refer to Engineering Bulletin No. 2066            Low ESR
                                                                                 SC P57

    Specifications
               Item                                                                         Characteristics
Category Temperature Range         -40 ~ +105
Rated Voltage Range                6.3 ~ 35V
Rated Capacitance Range            150 ~ 4700
