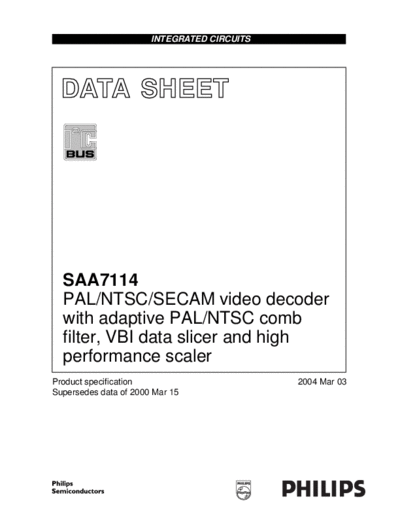

Image preview - the first page of the document
>> Download SAA7114_2 documenatation <<
Text preview - extract from the document
INTEGRATED CIRCUITS
DATA SHEET
SAA7114
PAL/NTSC/SECAM video decoder
with adaptive PAL/NTSC comb
filter, VBI data slicer and high
performance scaler
Product specification 2004 Mar 03
Supersedes data of 2000 Mar 15
Philips Semiconductors Product specification
PAL/NTSC/SECAM video decoder with adaptive PAL/NTSC
SAA7114
comb filter, VBI data slicer and high performance scaler
CONTENTS 10 BOUNDARY SCAN TEST
10.1 Initialization of boundary scan circuit
1 FEATURES
10.2 Device identification codes
1.1 Video decoder
11 LIMITING VALUES
1.2 Video scaler
1.3 Vertical Blanking Interval (VBI) data decoder 12 THERMAL CHARACTERISTICS
and slicer 13 CHARACTERISTICS
1.4 Audio clock generation 14 APPLICATION INFORMATION
1.5 Digital I/O interfaces
1.6 Miscellaneous 15 I2C-BUS DESCRIPTION
2 APPLICATIONS 15.1 I2C-bus format
15.2 I2C-bus details
3 GENERAL DESCRIPTION 15.3 Programming register audio clock generation
4 QUICK REFERENCE DATA 15.4 Programming register VBI data slicer
5 ORDERING INFORMATION 15.5 Programming register interfaces and scaler
part
6 BLOCK DIAGRAM
16 PROGRAMMING START SET-UP
7 PINNING
16.1 Decoder part
8 FUNCTIONAL DESCRIPTION
16.2 Audio clock generation part
8.1 Decoder 16.3 Data slicer and data type control part
8.2 Decoder output formatter 16.4 Scaler and interfaces
8.3 Scaler
17 PACKAGE OUTLINES
8.4 VBI data decoder and capture
(subaddresses 40H to 7FH) 18 SOLDERING
8.5 Image port output formatter 18.1 Introduction to soldering surface mount
(subaddresses 84H to 87H) packages
8.6 Audio clock generation 18.2 Reflow soldering
(subaddresses 30H to 3FH) 18.3 Wave soldering
9 INPUT/OUTPUT INTERFACES AND PORTS 18.4 Manual soldering
18.5 Suitability of surface mount IC packages for
9.1 Analog terminals
wave and reflow soldering methods
9.2 Audio clock signals
9.3 Clock and real-time synchronization signals 19 DATA SHEET STATUS
9.4 Video expansion port (X port) 20 DEFINITIONS
9.5 Image port (I port) 21 DISCLAIMERS
9.6 Host port for 16-bit extension of video data I/O
(H port) 22 PURCHASE OF PHILIPS I2C COMPONENTS
9.7 Basic input and output timing diagrams I port
and X port
2004 Mar 03 2
Philips Semiconductors Product specification
PAL/NTSC/SECAM video decoder with adaptive PAL/NTSC
SAA7114
comb filter, VBI data slicer and high performance scaler
1 FEATURES
1.1 Video decoder
