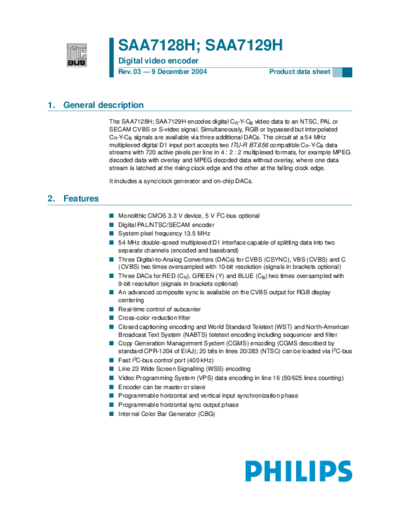

Image preview - the first page of the document



>> Download SAA7128H_SAA7129H_3 documenatation <<

Text preview - extract from the document

                  SAA7128H; SAA7129H
                  Digital video encoder
                  Rev. 03 -- 9 December 2004                             Product data sheet




1. General description
              The SAA7128H; SAA7129H encodes digital CR-Y-CB video data to an NTSC, PAL or
              SECAM CVBS or S-video signal. Simultaneously, RGB or bypassed but interpolated
              CR-Y-CB signals are available via three additional DACs. The circuit at a 54 MHz
              multiplexed digital D1 input port accepts two ITU-R BT.656 compatible CR-Y-CB data
              streams with 720 active pixels per line in 4 : 2 : 2 multiplexed formats, for example MPEG
              decoded data with overlay and MPEG decoded data without overlay, where one data
              stream is latched at the rising clock edge and the other at the falling clock edge.

              It includes a sync/clock generator and on-chip DACs.


2. Features
              s   Monolithic CMOS 3.3 V device, 5 V I2C-bus optional
              s   Digital PAL/NTSC/SECAM encoder
              s   System pixel frequency 13.5 MHz
              s   54 MHz double-speed multiplexed D1 interface capable of splitting data into two
                  separate channels (encoded and baseband)
              s   Three Digital-to-Analog Converters (DACs) for CVBS (CSYNC), VBS (CVBS) and C
                  (CVBS) two times oversampled with 10-bit resolution (signals in brackets optional)
              s   Three DACs for RED (CR), GREEN (Y) and BLUE (CB) two times oversampled with
                  9-bit resolution (signals in brackets optional)
              s   An advanced composite sync is available on the CVBS output for RGB display
                  centering
              s   Real-time control of subcarrier
              s   Cross-color reduction filter
              s   Closed captioning encoding and World Standard Teletext (WST) and North-American
                  Broadcast Text System (NABTS) teletext encoding including sequencer and filter
              s   Copy Generation Management System (CGMS) encoding (CGMS described by
                  standard CPR-1204 of EIAJ); 20 bits in lines 20/283 (NTSC) can be loaded via I2C-bus
              s   Fast I2C-bus control port (400 kHz)
              s   Line 23 Wide Screen Signalling (WSS) encoding
              s   Video Programming System (VPS) data encoding in line 16 (50/625 lines counting)
              s   Encoder can be master or slave
              s   Programmable horizontal and vertical input synchronization phase
              s   Programmable horizontal sync output phase
              s   Internal Color Bar Generator (CBG)
Philips Semiconductors                                                   SAA7128H; SAA7129H
                                                                                                             Digital video encoder


                     s Macrovision
