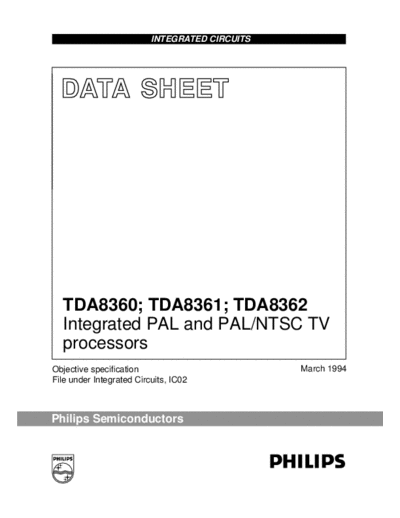

                          INTEGRATED CIRCUITS




  DATA SHEET




  TDA8360; TDA8361; TDA8362
  Integrated PAL and PAL/NTSC TV
  processors
Objective specification                         March 1994
File under Integrated Circuits, IC02



Philips Semiconductors
Philips Semiconductors                                                                         Objective specification

  Integrated PAL and PAL/NTSC TV
                                                                    TDA8360; TDA8361; TDA8362
  processors

FEATURES                                 Additional features                      GENERAL DESCRIPTION
Available in TDA8360, TDA8361            TDA8360                                  The TDA8360, TDA8361 and
and TDA8362                                                                       TDA8362 are single-chip TV
