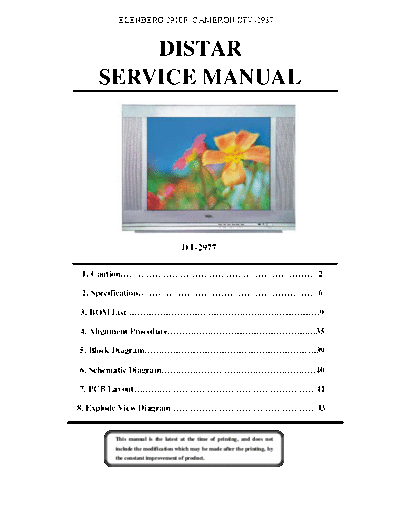

Image preview - the first page of the document
>> Download 2910F_STV-2937_DT2977 documenatation <<
Text preview - extract from the document
ELENBERG 2910F, CAMERON STV-2937
DISTAR
SERVICE MANUAL
DT-2977
1. Caution.....................................................................2
2. Specification...............................................................6
3. BOM List ........................... .......................................9
4. Alignment Procedure....................................................35
5. Block Diagram............................................................39
6. Schematic Diagram......................................................40
7. PCB Layout................................................................41
8. Explode View Diagram...................................................43
This manual is the latest at the time of printing, and does not
include the modification which may be made after the printing, by
the constant improvement of product.
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CA UTION: TO REDUCE THE RISK OF
CAUTION ELECTRICAL SHOCK, DO NOT REMOVE
RISK OF ELECTRIC
ELECTRIC COVER (OR BACK). NO USER SERVICEABLE
SHOCK DO NOT OPEN. PARTS INSIDE. REFER SER VICING TO
QUALIFIED SERVICE PERSONNEL.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated dangerous voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
2
IMPORTANT SAFETY INSTRUCTIONS
CAUTION:
Read all of these instructions. Save these instructions for later use. Follow all Warnings and
Instructions marked on the audio equipment.
1. Read Instructions- All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
FOR YOUR PERSONAL SAFETY
1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance. Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.
10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
3
PROTECTION AND LOCATION OF YOUR SET
11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in a built-in enclosure, unless proper ventilation is provided.
PROTECTION AND LOCATION OF YOUR SET
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
ANTENNA
LEAD- IN WIRE
GROUND CLAMP
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
ELECTRIC SERVICE (NEC SECTION 810-21)
EQUIPMENT
GROUND CLAMPS
POWER SERVICE GROUNDING
NEC-NATIONAL ELECTRICAL CODE ELECTRODE SYSTEM
(NEC ART 250. PART H)
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system installer s attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.
4
OPERATION OF YOUR SET
18. This television set should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set off and unplug the television set from the wall outlet.
IF THE SET DOES NOT OPERATE PROPERLY
21. If you are unable to restore normal operation by following the detailed procedure in your operating instructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off. If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
FOR SERVICE AND MODIFICATION
24. Do not use attachments not recommended by the television set manufacturer as they may cause hazards.
25. When replacement parts are required, be sure the service technician has used replacement parts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
26. Upon completion of any service or repairs to the television set, ask the service technician to perform
routine safety checks to determine that the television is in safe operating condition.
5
PFS2 FORMAT-1 Report
Date:2004-7-6 17:19
ProductView......:
Report by............: Product:
Specs / Products DT-2977
MasterData
Customer Id Distar
Version 0.1
Status New
Brand
EAN \
UPC \
Reception
+Tuning - presets/channels 100
+Tuning - technology PLL
+Tuning - Indication
+Freq Bands FS TUNER
+Channels CATV 470MHz
+IF Freq PICTURE 38.9 MHz
+TV Systems Off Air PAL B/G
+Add Systems Ext In NTSC 3.58, NTSC 4.43, NTSC Play
Back, PAL 60 IN AV mode
+TV Systems Multi PAL
+Sound Systems AV Stereo
Picture - Processing
+Scan Standard
+Scan Modes 4;3
+Wide Screen Switching
+Combfilter
+Picture Control Brightness, Colour, Contrast, Color
Temperature, Hue, Sharpness Cont
Var, Smart Pict. 4 Modes
Three kinds Color
Temperatures:Normal, Cool, Warm
+Pict Enhancement Black Stretch
+Pict Noise Reduction
Picture - Display
+Display Type DV - CRT - RF
+Screen Format 4:3
+Size(Visual)" - size/vis. cm 25"
+Deflection System (CRT only)
+Tube Technology (CRT only) Black Matrix, Iron
+CRT Defl
+CRT Gun Stand Gun
+CRT Magn field
+Resolution
+Coating (only for D.V. sets)
+White Point
Sound
+RMS Power Intern
+RMS Power Extern
+Surround Sound
+Sound Features Mute
+Sound Control Volume, super woofer
Sound - Speakers
+Speaker configuration 2
+Speakers used Normal
+Speaker Size
User Interface
+Interface Name L01- Full Interface
+Voice Control
+Menu Cursor Control
+Menu Colours
+Menu Languages Thai
+Special Features Program preengage/soft start/
Calendar/ Notebook
/Favorite channel/ Build-in Game /
Hotel Lock / Surround System/
Channel Edit List
+Operational Features Alternate Channel
+PP Features
+Tuning/Install Features Auto Store, Factory Mode, Fine
Tuning, Manual Search/Store,
Manual Sort, Service Mode
+Clock/Timer Functions Clock, On/off timer, Sleep timer
2004-7-6 17:33 29228PFS 1 of 3
Date:2004-7-6 17:19
ProductView......:
Report by............: Product:
Specs / Products DT-2977
+Local Controls Front Channel +-, Volume +-,
TV/AV,MENU,
Power Switch,
+Local Controls Top
+Indicators - screen
+Indicators - front RC Recvd LED, SB LED
+Numb of Loc Cont (incl Mains) 7
+Number of Ind. (incl Mains) 1
+Local Controls (Old)
Remote Control
Connectors Rear
+Scart RGB+Y/C+CVBS
+Scart RGB+CVBS
+Scart CVBS+Y/C
+Component In (Y/U/V) Cinch X
+In Y/C+Cinch(CVBS+St)
+In Y/C+Cinch(CVBS+Mo)
+In Y/C+Cinch(St)
+In BNC (CVBS)
+In Cinch(CVBS+St) X
+In Cinch(CVBS+Mo)
+Out Cinch(CVBS+St) X
+Out Cinch(CVBS+Mo)
+Out Cinch Audio Stereo
+Out Cinch Audio Mono
+Out Cinch Dolby Surround
+Out Cinch Subwoofer
+Dig Audio Out
+Loudspeakers
+Control Busses
+Feature Slot
+ITV Smart Port
+Terr. Antenna in 75 Ohms (IEC type)
Guide + IR Blaster Jack
Connectors Front
+In Y/C + Cinch(CVBS+St + Mo)
+In Y/C + Cinch Stereo
+In Cinch (CVBS + St)
+In Cinch (CVBS+Mo +St)
+Headphone Out
+Feature Slot
Connectors Side
+In Y/C + Cinch(CVBS+St+ Mo) x
+In Y/C + Cinch Stereo
+In Cinch (CVBS + St+ Mo)
+IN Cinch (CVBS + Mo)
+Headphone Out
Connectors Top
+In Cinch (CVBS + St)
+Headphone Out
Connectors Mechanical
+Headphone
+Cinch A/V in/out
+Cinch Component
+Cinch Y/C
Styling
+Cabinet Name 29228
+Configuration
+Graphics/Logo's
-Cabinet Colour and Finish
Silver Frost
+Mechanics
+Speaker Visibility Standard
General
+Segment Standard 4:3
+Chassis M113A
+Software Delivery Mode
+Software Version
+Mains Voltage 180-240V
+Mains Frequency 50Hz/60Hz
+Type Mains Cord
Power Consumption (P)TV in On
2004-7-6 17:33 29228PFS 2 of 3
Date:2004-7-6 17:19
ProductView......:
Report by............: Product:
Specs / Products DT-2977
Power Consumption SB in Watts Less than 10W
Power Consumption Semi SB in W
+Power in "ON" for
+Power in Standby for
+Power in "OFF" for
Weight (P)TV (incl. Packaging)
Weight (P)TV (excl. Package)
Weight AVUnit excl Packaging
+INDICATION on BACKCOVER
+Channel
Final Equipment
+Packaging - methods
+Documents and manuals
+Languages DFU
+Cables Supplied
+Antenna Supplied
+Stand Supplied
+Aux Equipm Supplied
Packaging - width cm
Packaging - height cm
Packaging - depth cm
Miscellaneous
+EAN Indication
+Approbation
+Tests
+Local Integration
Various Perf. Param.
+Service Call-Rate
PIP/POP
+Type
+Features
Digital Reception
+Transmission
Built-in Data System
+Text Standard
+(Tele)text Features
+Nbr bckgrnd page / Mem Size
+Text Technology
+Digital Data handling
+Program Guide
Built-in Clock/Timer
+Type
+Features
Built-in Radio
+Type
Built-in PC display
+PC Synch
+PC Control
Built-in DVD drive
+Type of Medium
+Type of Deck
+Version of Deck
Phased Out Items
+Tuner/Frontend
+Sensitivity
+CRT EHT
+Lightning Protection
+Account
+XX(Radio Antenna in)
+Non Volatile Memory
+In Y/C + Cinch(CVBS+Mo)
Version of deck
2004-7-6 17:33 29228PFS 3 of 3
Item No. Description Quantity Req. Designator Remarks
08-00034E-WOY 1
10-0RU4YX-F0X DIODE RU4YX (FAST RECOVERY) 1 D827
13-TDA894-5SS IC TDA8945S 1 IC603
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R623
18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R603
18-CD0829-JNX RES. C.F. 8.2 OHM 1/4W +/-5% 1 R621
18-RG0109-JHX RES. WIRE ROUND 1 OHM 2W +/-5% 1 R622
25-BDA102-M1X CAP. ELEC 1000 UF 25V +/-20% 1 C636
25-BDA102-M1X CAP. ELEC 1000 UF 25V +/-20% 1 C829
25-BDB100-M1X CAP. ELEC 10 UF 25V +/-20% 1 C642
25-BFB229-M1X CAP. ELEC 2.2 UF 50V +/-20% 1 C606
26-ABC104-ZFX CAP. CER 0.1 UF 50V +80-20% F 1 C637
26-ABC104-ZFX CAP. CER 0.1 UF 50V +80-20% F 1 C638
26-ABC104-ZFX CAP. CER 0.1 UF 50V +80-20% F 1 C828
26-AIC221-KBX CAP. CER 220 PF 500V +/-10% B 1 C827
27-MBC224-J0X CAP. M.P.E 0.22UF 63V +/-5% 1 C640
27-MBC224-J0X CAP. M.P.E 0.22UF 63V +/-5% 1 C641
27-MBC333-J0X CAP. M.P.E 0.033UF 63V +/-5% 1 C639
35-237250-00X FERR. BEAD HF70 4.5X5.0 2 FOR D827
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J622
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J816
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J607
41-WJ0095-B00 WIRE BARE JUMPER 9.5MM 1 J611
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J614
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J814
64-B30100-104 M/C SCREW B 3 X 10 2 FOR IC603
67-H34423-5A0 HEAT SINK (A=50 C=17.5MM) 1 FOR IC603
66-343740-0B0 HOLLOW RIVET (2.3mmx4.0mmx3.5mm) 2 FOR IC603
26-ABC102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C609
08-029ABE-CR1 1
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D501
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D502
11-A562TM-0BX TRANSISTOR 2SA562TM-0 1 Q507
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q502
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q504
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q506
11-SC4544-0AX TRANSISTOR 2SC4544 1 Q501
9
Item No. Description Quantity Req. Designator Remarks
11-SC4544-0AX TRANSISTOR 2SC4544 1 Q503
11-SC4544-0AX TRANSISTOR 2SC4544 1 Q505
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R515
18-CB0272-JNX RES. C.F. 2.7k OHM 1/6W +/-5% 1 R514
18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% 1 R501
18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% 1 R505
18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% 1 R510
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R502
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R506
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R509
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R522
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R503
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R508
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R513
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R511
18-FE0272-JNX RES. M.O. 2.7K OHM 1/2W +/-5% 1 R519
18-FE0272-JNX RES. M.O. 2.7K OHM 1/2W +/-5% 1 R520
18-FE0272-JNX RES. M.O. 2.7K OHM 1/2W +/-5% 1 R521
18-FG0183-JHX RES. M.O. 18K OHM 2W +/-5% 1 R516
18-FG0183-JHX RES. M.O. 18K OHM 2W +/-5% 1 R517
18-FG0183-JHX RES. M.O. 18K OHM 2W +/-5% 1 R518
25-BCB471-M1X CAP. ELEC 470 UF 16V +/-20% 1 C506
26-AMK182-KRX CAP. CER 1800PF 2KV +/-10% R 1 C505
27-MBC474-J0X CAP. M.P.E 0.47UF 63V +/-5% 1 C508
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C509
26-EBP391-JCX CAP. CER. 390PF 50V +/-5% CH 1 C502
26-EBP391-JCX CAP. CER. 390PF 50V +/-5% CH 1 C501
26-EBP471-JCX CAP. CER 470PF 50V +/-5% CH 1 C503
34-R100K2-1BX COIL CHOKE 10 UH +/-10% 1 L503
40-02501C-CRH1X P.C.B CRT BD 1
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 L504
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 R504
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 R507
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 R512
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J503
46-10967W-01X PIN BASE *1 TJC1-1A 1 P501 FOR CRT GROUNDING HOUS.
46-30615H-04X HS 4P24 460 F/W TJC3-4Y/SCN-4 1 P502 FOR M.BD P421
10
Item No. Description Quantity Req. Designator Remarks
46-37030H-05X HS 5P 2468#24 450 TJC3-5Y/SCN 1 P503 FOR M.BD P201
47-CRT004-XX0 CRT SOCKET GZS10-2-AC2 1 S501
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 L501 ("+" TO P503"1")
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 L502
25-BLA100-M1X CAP. ELEC 10 UF 250V +/-20% 1 C504
08-02970E-MAY 1
10-0BY228-F0X DIODE BY228 1 D411
10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D412
10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D421
10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D441
10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D431
10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D432
10-1N4001-EBX DIODE 1N4001 (RECTIFIER) 1 D301
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D201
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D202
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D203
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D204
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D205
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D602
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D603
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D002
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D003
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D310
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D604
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D305B
10-79C5V1-DBX DIODE ZENER 5V1 1/2W 5% 1 D001
10-79C8V2-DBX DIODE ZENER 8V2 1/2W 5% 1 D303
10-CW574C-DJX DIODE CW574CD 1 D101
11-630MFP-0AX TRANSISTOR IRF630MFP 1 Q414
11-C124ES-0BX TRANSISTOR PDTC124ES (NPN) 1 Q001
11-C124ES-0BX TRANSISTOR PDTC124ES (NPN) 1 Q002
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q008
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q215
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q412
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q413
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q601
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q912
11
Item No. Description Quantity Req. Designator Remarks
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q007
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q202
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q909
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q910
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q911
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q913
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q914
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q214
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q630
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q631
11-SC2482-0BX TRANSISTOR 2SC2482 1 Q401
11-SC3779-DBX TRANSISTOR 2SC3779D (RF AMPL) 1 Q101
13-000040-52P IC 4052 1 IC901
13-000040-52P IC 4052 1 IC902
13-0TDA81-77S IC TDA8177 1 IC301
13-NJW113-6LP IC NJW1136L 1 IC601
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R203
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R213
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R101
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R100
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R003
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R004
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R031
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R032
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R453
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R904
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R906
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R923
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R924
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R925
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R926
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R931
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R950
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R950A
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R951
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R951A
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R910
12
Item No. Description Quantity Req. Designator Remarks
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R912
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R001A
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R033
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R035
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R012
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R224
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R227
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R246
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R013
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R607
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R247
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R248
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R252
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R314
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R617
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R034
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R210
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R943
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R235
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R236
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R907
18-CB0122-JNX RES. C.F. 1.2k OHM 1/6W +/-5% 1 R253
18-CB0123-JNX RES. C.F. 12k OHM 1/6W +/-5% 1 R310
18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R102
18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R108
18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R228
18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R928
18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R929
18-CB0183-JNX RES. C.F. 18k OHM 1/6W +/-5% 1 R225
18-CB0183-JNX RES. C.F. 18k OHM 1/6W +/-5% 1 R933
18-CB0202-JNX RES. C.F. 2K OHM 1/6W +/-5% 1 R412
18-CB0220-JNX RES. C.F. 22 OHM 1/6W +/-5% 1 R027
18-CB0220-JNX RES. C.F. 22 OHM 1/6W +/-5% 1 R028
18-CB0220-JNX RES. C.F. 22 OHM 1/6W +/-5% 1 R104
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R401
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R015
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R016
13
Item No. Description Quantity Req. Designator Remarks
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R615
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R903
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R946
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R946A
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R417
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R423
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R420A
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R909
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R905
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R932
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R938
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R939
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R942
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R940
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R941
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R911
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R913
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R220
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R616
18-CB0224-JNX RES. C.F. 220k OHM 1/6W +/-5% 1 R240
18-CB0271-JNX RES. C.F. 270 OHM 1/6W +/-5% 1 R243
18-CB0271-JNX RES. C.F. 270 OHM 1/6W +/-5% 1 R244
18-CB0271-JNX RES. C.F. 270 OHM 1/6W +/-5% 1 R245
18-CB0303-JNX RES. C.F. 30K OHM 1/6W +/-5% 1 R241
18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R214
18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R608
18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R609
18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R201
18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R944
18-CB0332-JNX RES. C.F. 3.3k OHM 1/6W +/-5% 1 R212
18-CB0332-JNX RES. C.F. 3.3k OHM 1/6W +/-5% 1 R216
18-CB0470-JNX RES. C.F. 47 OHM 1/6W +/-5% 1 R927
18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R036
18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R103
18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R211
18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R315
18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% 1 R226
14
Item No. Description Quantity Req. Designator Remarks
18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% 1 R610
18-CB0512-JNX RES. C.F. 5.1k OHM 1/6W +/-5% 1 R219
18-CB0560-JNX RES. C.F. 56 OHM 1/6W +/-5% 1 R107
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R106
18-CB0683-JNX RES. C.F. 68K OHM 1/6W +/-5% 1 R418
18-CB0750-JNX RES. C.F. 75 OHM 1/6W +/-5% 1 R922
18-CB0752-JNX RES. C.F. 7.5K OHM 1/6W +/-5% 1 R256
18-CB0820-JNX RES. C.F. 82 OHM 1/6W +/-5% 1 R908
18-CB0820-JNX RES. C.F. 82 OHM 1/6W +/-5% 1 R902
18-CB0822-JNX RES. C.F. 8.2K OHM 1/6W +/-5% 1 R202
18-CD0479-JNX RES. C.F. 4.7 OHM 1/4W +/-5% 1 R030
18-CD0829-JNX RES. C.F. 8.2 OHM 1/4W +/-5% 1 R620
18-CD0829-JNX RES. C.F. 8.2 OHM 1/4W +/-5% 1 R613
18-CE0271-JNX RES. C.F. 270 OHM 1/2W +/-5% 1 R209
18-CE0472-JNX RES. C.F. 4.7k OHM 1/2W +/-5% 1 R316
18-DB0103-FNX RES. M.F. 10K OHM 1/6W +/-1% 1 R302
18-DB0104-FNX RES. M.F. 100K OHM 1/6W +/-1% 1 R303
18-DB0123-FNX RES. M.F. 12K OHM 1/6W +/-1% 1 R312
18-DB0912-FNX RES. M.F. 9.1K OHM 1/6W +/-1% 1 R311
18-EG0109-JHX RES. FUS. 1 OHM 2W +/-5% 1 R422
18-FF0242-JGX RES. M.O. 2.4K OHM 1W +/-5% 1 R402
18-FF0681-JGX RES. M.O. 680 OHM 1W +/-5% 1 R419
18-FG0103-JHX RES. M.O. 10K OHM 2W +/-5% 1 R421
18-FG0399-JHX RES. M.O. 3.9 OHM 2W +/-5% 1 R415
18-GM0302-KUX1 RES.C.C.7W 3KOHM +/-10% 1 R404
25-264610-M1X CAP. ELEC 4.7UF 50V +/-20% NP 1 C415
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C021
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C033
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C228
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C235
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C902
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C903
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C911
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C912
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C917
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C905
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C906
15
Item No. Description Quantity Req. Designator Remarks
25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C219
25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C233
25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C914
25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C930
25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C930A
25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C028
25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C612
25-BCB221-M1X CAP. ELEC 220 UF 16V +/-20% 1 C910
25-BCB331-M1X CAP. ELEC 330 UF 16V +/-20% 1 C630
25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C213
25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C901
25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C920
25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C229
25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C631
25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C904
25-BDA102-M1X CAP. ELEC 1000 UF 25V +/-20% 1 C623
25-BDB101-M1X CAP. ELEC 100 UF 25V +/-20% 1 C308
25-BDB470-M1X CAP. ELEC 47 UF 25V +/-20% 1 C632
25-BEA102-M1X CAP. ELEC 1000 UF 35V +/-20% 1 C432
25-BEA221-M1X CAP. ELEC 220 UF 35V +/-20% 1 C301
25-BEB101-M1X CAP. ELEC 100 UF 35V +/-20% 1 C302
25-BFB101-M1X CAP. ELEC 100 UF 50V +/-20% 1 C224
25-BFB101-M1X CAP. ELEC 100 UF 50V +/-20% 1 C105
25-BFB101-M1X CAP. ELEC 100 UF 50V +/-20% 1 C237
25-BFB101-M1X CAP. ELEC 100 UF 50V +/-20% 1 C104
25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C218
25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C221
25-BFB229-M1X CAP. ELEC 2.2 UF 50V +/-20% 1 C601
25-BFB229-M1X CAP. ELEC 2.2 UF 50V +/-20% 1 C607
25-BFB229-M1X CAP. ELEC 2.2 UF 50V +/-20% 1 C650
25-BFB229-M1X CAP. ELEC 2.2 UF 50V +/-20% 1 C657
25-BFB478-M1X CAP. ELEC 0.47 UF 50V +/-20% 1 C227
25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C223
25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C304
25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C614
25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C615
25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C616
16
Item No. Description Quantity Req. Designator Remarks
25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C617
25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C618
25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C619
25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C620
25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C101
25-BKA100-M1X CAP. ELEC 10 UF 200V +/-20% 1 C421
25-BLF100-M1X CAP. ELEC 10 UF 250V +/-20% 1 C442
25-GFB228-K1X CAP. ELEC 0.22 UF 50V +/-10% 1 C216
25-GFB478-K1X CAP. ELEC 0.47 UF 50V 10%CEC-K 1 C246
26-ABC104-ZFX CAP. CER 0.1 UF 50V +80-20% F 1 C624
26-ABC104-ZFX CAP. CER 0.1 UF 50V +80-20% F 1 C611
26-ABC104-ZFX CAP. CER 0.1 UF 50V +80-20% F 1 C622
26-ABC104-ZFX CAP. CER 0.1 UF 50V +80-20% F 1 C643
26-AIC221-KBX CAP. CER 220 PF 500V +/-10% B 1 C431
26-AIC221-KBX CAP. CER 220 PF 500V +/-10% B 1 C441
26-AIC221-KBX CAP. CER 220 PF 500V +/-10% B 1 C433
26-AIC332-KBX CAP. CER 3300 PF 500V +/-10% B 1 C402
26-AIC391-KBX CAP. CER 390 PF 500V +/-10% B 1 C403
26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C109
26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C226
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C022
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C029
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C234
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C238
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C244
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C250
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C921
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C931A
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C922
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C923
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C034
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C106
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C107
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C108
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C214
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C220
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C225
17
Item No. Description Quantity Req. Designator Remarks
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C418
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C913
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C103
26-EBP220-JCX CAP. CER 22PF 50V +/-5% CH 1 C252
26-EBP221-JCX CAP. CER 220PF 50V +/-5% CH 1 C907
26-EBP221-JCX CAP. CER 220PF 50V +/-5% CH 1 C027
26-EBP221-JCX CAP. CER 220PF 50V +/-5% CH 1 C030
26-EBP221-JCX CAP. CER 220PF 50V +/-5% CH 1 C015
26-EBP221-JCX CAP. CER 220PF 50V +/-5% CH 1 C016
26-EBP222-KBX CAP. CER 2200PF 50V +/-10% B 1 C217
26-EBP222-KBX CAP. CER 2200PF 50V +/-10% B 1 C231
26-EBP222-KBX CAP. CER 2200PF 50V +/-10% B 1 C306
26-EBP330-JCX CAP. CER 33PF 50V +/-5% CH 1 C916
26-EBP390-JCX CAP. CER 39PF 50V +/-5% CH 1 C031
26-EBP390-JCX CAP. CER 39PF 50V +/-5% CH 1 C032
26-EBP471-JCX CAP. CER 470PF 50V +/-5% CH 1 C239
27-MBC103-J0X CAP. M.P.E 0.01UF 63V+/-5% 1 C626
27-MBC103-J0X CAP. M.P.E 0.01UF 63V+/-5% 1 C628
27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C241
27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C243
27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C625
27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C633
27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C251
27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C242
27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C602
27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C603
27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C605
27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C652
27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C253
27-MBC222-J0X CAP. M.P.E 0.0022UF 63V +/-5% 1 C653
27-MBC222-J0X CAP. M.P.E 0.0022UF 63V +/-5% 1 C604
27-MBC222-J0X CAP. M.P.E 0.0022UF 63V +/-5% 1 C654
27-MBC333-J0X CAP. M.P.E 0.033UF 63V +/-5% 1 C656
27-MBC334-J0X CAP. M.P.E 0.33UF 63V +/-5% 1 C608
27-MBC334-J0X CAP. M.P.E 0.33UF 63V +/-5% 1 C305
27-MBC473-J0X CAP. M.P.E 0.047 UF 63V +/-5% 1 C655
27-MBC474-J0X CAP. M.P.E 0.47UF 63V +/-5% 1 C248
18
Item No. Description Quantity Req. Designator Remarks
27-MCC563-J0X CAP M.P.E 0.056UF 100V +/-5% 1 C451
27-PBC822-J0X CAP. P.E 0.0082UF 63V +/-5% 1 C247
34-A109K0-1IX COIL CHOKE 1 UH +/-10% 1 L102
34-R100J2-0EX COIL PL - 10 UH +/-5% 1 L002
34-R100J2-0EX COIL PL - 10 UH +/-5% 1 L208
34-R220J2-0EX COIL PL - 22 UH +/-5% 1 L206
34-R220J2-0EX COIL PL - 22 UH +/-5% 1 L202
34-R270J2-0EX COIL PL - 27 UH +/-5% 1 L207
34-R470J2-0EX COIL PL - 47 UH +/-5% 1 L101
35-237250-00X FERR. BEAD HF70 4.5X5.0 2 FOR D421
36-HDR001-AX1 TRANSFOR HOR. DRIVE (MAGNETIC CORE) 1 T401
41-WJ0055-B00 WIRE BARE JUMPER 5.5 MM 1 J915
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J018
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J218
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J229
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J624
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J307
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J924
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J909
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J910
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J911
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 R001
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 R002
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J014A
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J310
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J311
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J403
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J1111
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J1112
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J410
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 R930
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J004
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J005
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J235
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J201
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J202
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J236
19
Item No. Description Quantity Req. Designator Remarks
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J603
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J605
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J608A
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J625
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J627
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J923
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J925
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J926
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J002
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J007
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J008
41-WJ0070-B00 WIRE BARE JUMPER 7MM 1 J922
41-WJ0070-B00 WIRE BARE JUMPER 7MM 1 J404
41-WJ0070-B00 WIRE BARE JUMPER 7MM 1 J015B
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 D410
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J308
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J208
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J221
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J222
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J226
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J608
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J917
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J626
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J102
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J014B
41-WJ0080-B00 WIRE BARE JUMPER 8 MM 1 J013
41-WJ0080-B00 WIRE BARE JUMPER 8 MM 1 J620
41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J313
41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J223
41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J902
41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J907
41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J010
41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J305
41-WJ0095-B00 WIRE BARE JUMPER 9.5MM 1 J610
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J211
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J901
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J912
20
Item No. Description Quantity Req. Designator Remarks
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J914
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J916
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J921
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J602
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J618
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J619
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J931
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J932
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J312
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J1230
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J1231
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J1232
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J022
41-WJ0105-B00 WIRE BARE JUMPER 10.5MM 1 J230
41-WJ0105-B00 WIRE BARE JUMPER 10.5MM 1 J027
41-WJ0105-B00 WIRE BARE JUMPER 10.5MM 1 J1218
41-WJ0110-B00 WIRE BARE JUMPER 11MM 1 J609
41-WJ0110-B00 WIRE BARE JUMPER 11MM 1 J012
41-WJ0110-B00 WIRE BARE JUMPER 11MM 1 J601
41-WJ0110-B00 WIRE BARE JUMPER 11MM 1 J918
41-WJ0110-B00 WIRE BARE JUMPER 11MM 1 J026
41-WJ0120-B00 WIRE BARE JUMPER 12MM 1 J009
41-WJ0120-B00 WIRE BARE JUMPER 12MM 1 J216
41-WJ0120-B00 WIRE BARE JUMPER 12MM 1 J217
41-WJ0120-B00 WIRE BARE JUMPER 12MM 1 J302
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J206
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J011
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J227
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J306
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J402
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J405
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J406
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J927
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 R308
41-WJ0130-B00 WIRE BARE JUMPER 13MM 1 J613
41-WJ0130-B00 WIRE BARE JUMPER 13MM 1 J220
41-WJ0130-B00 WIRE BARE JUMPER 13MM 1 J207
21
Item No. Description Quantity Req. Designator Remarks
41-WJ0130-B00 WIRE BARE JUMPER 13MM 1 J612
41-WJ0135-B00 WIRE BARE JUMPER 13.5MM 1 J205
41-WJ0140-B00 WIRE BARE JUMPER 14MM 1 J224
41-WJ0145-B00 WIRE BARE JUMPER 14.5MM 1 J621
41-WJ0145-B00 WIRE BARE JUMPER 14.5MM 1 J904
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J101
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J303
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J920
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 L412
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 R614
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J609A
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J304
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 L411
41-WJ0165-B00 WIRE BARE JUMPER 16.5MM 1 J225
41-WJ0175-B00 WIRE BARE JUMPER 17.5MM 1 J105
41-WJ0175-B00 WIRE BARE JUMPER 17.5MM 1 J212
41-WJ0180-B00 WIRE BARE JUMPER 18MM 1 J213
41-WJ0180-B00 WIRE BARE JUMPER 18MM 1 J616A
41-WJ0180-B00 WIRE BARE JUMPER 18MM 1 J617A
41-WJ0185-B00 WIRE BARE JUMPER 18.5MM 1 J228
41-WJ0185-B00 WIRE BARE JUMPER 18.5MM 1 J028
41-WJ0185-B00 WIRE BARE JUMPER 18.5MM 1 J210
41-WJ0190-B00 WIRE BARE JUMPER 19MM 1 J908
41-WJ0190-B00 WIRE BARE JUMPER 19MM 1 J023
41-WJ0195-B00 WIRE BARE JUMPER 19.5MM 1 J017
41-WJ0195-B00 WIRE BARE JUMPER 19.5MM 1 J215
41-WJ0195-B00 WIRE BARE JUMPER 19.5MM 1 J209
41-WJ0195-B00 WIRE BARE JUMPER 19.5MM 1 J214
41-WJ0195-B00 WIRE BARE JUMPER 19.5MM 1 J021
41-WJ0195-B00 WIRE BARE JUMPER 19.5MM 1 J1217
41-WJ0200-B00 WIRE BARE JUMPER 20MM 1 J016
41-WJ0200-B00 WIRE BARE JUMPER 20MM 1 J905
41-WJ0200-B00 WIRE BARE JUMPER 20MM 1 J913
41-WJ0200-B00 WIRE BARE JUMPER 20MM 1 J604
41-WJ0200-B00 WIRE BARE JUMPER 20MM 1 J024
41-WJ0200-B00 WIRE BARE JUMPER 20MM 1 J025
45-OSC8M0-0Y0 CRYSTAL 8.0MHZ 1 X001
22
Item No. Description Quantity Req. Designator Remarks
46-20598W-04X PIN BASE *4 TJC1-4A 1 P411 FOR D.Y CONNECTOR
46-33079W-03X PIN BASE *3 TJC3-3A 1 P002 P2 - P4 FOR W. BAL . ADJUST
46-33079W-04X PIN BASE *4 TJC3-4A 1 P421 FOR CRT BD P502
46-33079W-05X PIN BASE *5 TJC3-5A 1 P201 FOR CRT BD P503
46-33079W-05X PIN BASE *5 TJC3-5A 1 P001 FOR F. CTL BD
62-227680-0UA BRACKET ABS-KINGFA 606 (UO) 1
64-P30080-104 M/C SCREW P 3 X 8 1 FOR Q411
64-P30080-104 M/C SCREW P 3 X 8 1 FOR IC301
64-P30080-104 M/C SCREW P 3 X 8 1 FOR Q414
64-P30100-104 M/C SCREW P 3 X 10 2 FOR IC602
65-Z30050-23M NUT M 3 2 FOR IC301 & Q411
66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 10 FOR T402
66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 3 FOR Q411
67-H27292-1A0 HEAT SINK 1 FOR Q414
67-H30147-0A0 HEAT SINK FOR HORIZ (2501/2909 1 FOR Q411
67-H30179-5A0 HEAT SINK 1 FOR IC301
57-10654X-00F cable ties(2.5mmX95mm) 3
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J411
34-R100J2-0EX COIL PL - 10 UH +/-5% 1 L005
25-BDG222-M1X CAP. ELEC 2200 UF 25V +/-20% 1 C435
25-KJG101-M1X CAP. ELEC 100 UF 160V +/-20% 1 C422
26-AIM103-KBX CAP. CER 0.01UF 500V +/-10% B 1 C401
