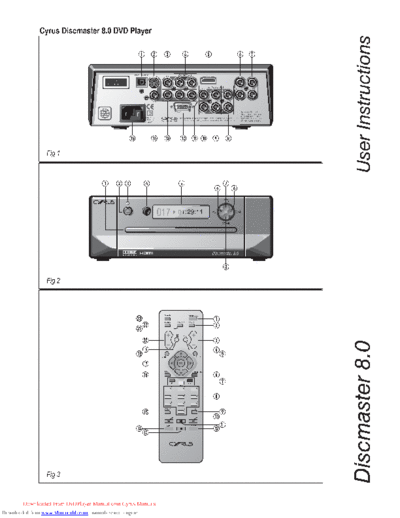

Image preview - the first page of the document
>> Download discmaster_80 documenatation <<
Text preview - extract from the document
Cyrus Discmaster 8.0 DVD Player
User Instructions
a b c d e f g
DIGITAL OUTPUT STEREO OUT HDMI
S-VIDEO SPDIF R L L OUT
5.1 AUDIO OUT
CENT DAC OUT MC-BUS
L
VIDEO Cr Cb Y REAR FRONT R IN
OUT
VGA VIDEO OUT R Apparatus Claims of U.S.
SUB
Patent Nos. 4,631,603;
4,577,216; 4,819,098 and
110-230V Manufactured under licence from Dolby Laboratories. "Dolby," "Pro 4,907,093 licensed for
50/60Hz MADE IN ENGLAND Logic," and the double-D symbol are trademarks of Dolby Laboratories. limited viewing uses only.
20W
1% 1$ 1# 1@ 1! 1) i h
Fig 1
a bc d e g
f f
017 01:29:11
Discmaster 8.0
h
Fig 2
Standby Open/close
2# Subtitle Language Program a
2!2@ b
Angle
2) c
Discmaster 8.0
1( de
1* Clear Setup
1& OK
Title Menu/PBC
1^ f
N/P
1
HD
2
VGA
3
g
4
7
5
8
6
9
h
Display Search
1% i
0
1)
1@1!
Zoom Repeat
1$1#
Fig 3
Downloaded From DvDPlayer-Manual.com Cyrus Manuals
Downloaded from www.Manualslib.com manuals search engine
User Instructions Cyrus Discmaster 8.0
IMPORTANT! Read before operating this equipment! LIGHTNING: For added protection for this product during a lightning storm, or
when it is left unattended or unused for long periods of time, unplug it from the
CAUTION: The exclamation mark is to draw your attention to wall outlet and disconnect the antenna or cable system. This will prevent
important instructions and safety procedures in this manual. damage to the product due to lightning and power-line surges.
ATTENTION: The lightning flash warns you of the risk of CAUTION! POLARISED CONNECTOR (CANADA and USA):
electrical shock presented by components inside this product. To prevent electrical shock, match wide blade of plug to wide slot, fully insert.
Unauthorised personnel must not open this unit. Do not alter or remove this plug if it does not fit your mains power socket.
WARNING: To reduce the risk of electrical shock do not remove Have a suitable socket installed by a competent electrician.
any unit covers or panels. There are no user serviceable parts in this product. POWER SUPPLY:
WARNING: To reduce the risk of electric shock, do not expose this
equipment to rain or moisture. The moulded IEC connector of the AC cord supplied plugs into the power inlet
HEED WARNINGS: All warnings on the product and in the operating 1% on the rear of the unit.
instructions should be adhered to. The mains supply requirement for your Discmaster 8.0 is marked on a label
READ ALL THE INSTRUCTIONS: All the safety and operating instructions on the rear panel. Before connecting, check that this voltage is the same as
should be read before the product is operated. your mains supply.
All Products: Voltage Range 110V-230V
RETAIN INSTRUCTIONS: The safety and operating instructions should be
retained for future reference. If you move to an area with a different mains voltage, contact your local Cyrus
distributor for advice.
FOLLOW INSTRUCTIONS: All operating and use instructions should be
followed. There are no user replaceable fuses in this unit.
CLEANING: Unplug this product from the mains before cleaning. Do not use NOTE FOR UK CUSTOMERS:
liquid or aerosol cleaners. Use a damp cloth for cleaning.
WATER AND MOISTURE: Do not use this product near water - for example, The Discmaster 8.0 is supplied with a power cable terminated by a fused 13A
near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement; or mains plug. This plug should not be removed but if it is removed, dispose of it
near a swimming pool and the like. The product must not be exposed to safely and do not re-use it. To connect a new 13A plug, proceed as follows:
dripping or splashing and no objects filled with liquids, such as vases, shall be Connect the brown wire to the terminal marked L or coloured red. Connect the
placed on the product. blue wire to the terminal marked N or coloured black. The internal plug fuse
HEAT: The product should be situated away from heat sources such as should be 3A.
radiators, stoves, or any other products (including amplifiers) that produce
heat.
SERVICING:
VENTILATION: Slots and openings in the cabinet are provided for ventilation, Do not attempt to service this product yourself as opening or removing covers
to ensure reliable operation of the product and to protect it from overheating may expose you to dangerous voltage or other hazards. Refer all servicing to
and these openings must not be blocked or covered. The openings should qualified service personnel.
never be blocked by placing the product on a bed, sofa, rug or similar surface. CONDITIONS REQUIRING SERVICE: Unplug this product from the wall
This product should not be placed in a built-in installation such as a bookcase outlet and refer servicing to qualified service personnel when:
or rack unless proper ventilation is provided or the manufacturer's instructions
