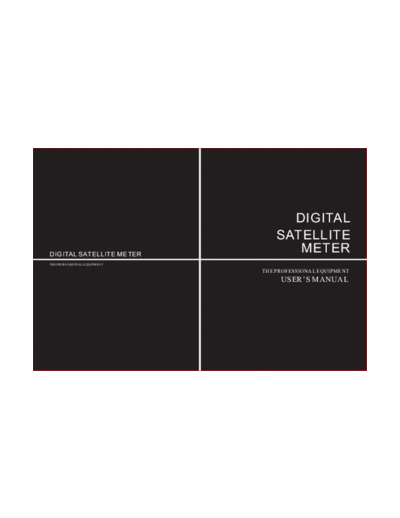

Image preview - the first page of the document
>> Download manual documenatation <<
Text preview - extract from the document
DIGITAL
SATELLITE
DIGITAL SATELLITE METER
METER
THE PROFESSIONAL EQUIPMENT
THE PROFESSIONAL EQUIPMENT
USER'S MANUAL
T H E P R O F E S S I O N A L E Q U I P M E N T - - - - - - - - - - - - - - - - - - | U S E R 'S M A N U A L | T H E P R O F E S S I O N A L E Q U I P M E N T - - - - - - - - - - - - - - - - - - | U S E R 'S M A N U A L |
CONTENTS Product Description
It is a battery powered hand held Satellite alignment
Product Description meter demodulating DVB-S Signal. It's very convenient
for installer to catch quick and accurate Alignment for
1.Guide 2 Antenna to the best position.
1.1 Face Panel & Button 3 It's with microprocessor controller, reliable and stable
1.2 Power On/Off 4 performance. When it's turned on, channel picture,
Signal Strength and Signal Quality will be showed on
1.3Power Supply & Battery 4 LCD Screen after you set up your local DVB-S Parameter.
2. Menu 4 Also, it enables you to select big menu window for data
2.1Quick Search 5 figure which is helpful for alignment.
2.2Satellite Install 9 It shows Azimuth and Elevation, CBER/VBER, S/N,
Signal Strength and signal lock sound
2.3 Multimedia 11
It detects very faint signal, and supports antenna power
2.4 System Setup 13 OFF/13V/18V selectable.
2.5 Shortcut Buttons 15 It's with auto-protection for LNB short-circuit.
4.Chapter III Specifications 18 It includes both AV IN and AV OUT for Camera,
LCD...etc
5.Product Standard Package 21 It's used with 12V Power Adaptor when you need to use
external power.
It includes high capacity Lithium Battery 8.4V
3000mAh which works for more than 4 hours after it's
fully charged.
Digita Satellite Meter | 1
T H E P R O F E S S I O N A L E Q U I P M E N T - - - - - - - - - - - - - - - - - - | U S E R 'S M A N U A L | T H E P R O F E S S I O N A L E Q U I P M E N T - - - - - - - - - - - - - - - - - - | U S E R 'S M A N U A L |
NO. Name Function
1.GUIDE 1 Signal Input To connect it with external antenna
1.1Face Panel & Button 2 LCD Screen To show menu and channel pictures...etc
3 Signal Lock Indicator Light To lock signal when it lights
4 Charging Indicator Light The light is on when it's charging;
It's off when charging is complete.
5 Power Indicator Light The light is on when meter is turned on
6 22K Switch Indicator Light 22K Switch is on when it lights
7 13/18V Indicator Light To show H/V switch output
8 F1 F2 F3 F4 Function Buttons
9 OK Arrow for Cursor Moving
OK for Confirmation
10 MENU To show main menu or return to previous
menu
11 EXIT To cancel selection or exit from current
menu
12 0-9 Numerical Button To input numerical for setting parameters
13 +/- Button To turn on or off sound indicator for signal
strength
14 B.Light LCD Screen Switch
15 Mute Sound On/Off Switch
16 TV/Radio Switch between TV Channel and Radio
Channel
17 SCAN Enter into Quick Seach
18 INFO To show parameter of current channel
19 USB Port Port for Upgrade or connecting to
multimedia
20 Power Connection port Port for connecting to external power supply
21 Power Switch Power Switch for machine power
22 A Ouput
V AV Output
23 A Input
V AV Input
2 | Digita Satellite Meter Digita Satellite Meter | 3
T H E P R O F E S S I O N A L E Q U I P M E N T - - - - - - - - - - - - - - - - - - | U S E R 'S M A N U A L | T H E P R O F E S S I O N A L E Q U I P M E N T - - - - - - - - - - - - - - - - - - | U S E R 'S M A N U A L |
use Arrow key to move cursor, and then press "OK" key to select
1.2 Power On/Off
sub-menu.
To turn on the meter when Power Switch moves to I
position.
To turn off the meter when Power Switch moves to 0
position.
Please turn off the meter to charge the meter in time
when system information for showing low power popes
up.
1.3Power Supply and Battery
It's used with 12V 1.5A Power Adaptor. It charges
through external power when battery is out of power.
It's used with 8.4V 3000 mAH Lithium Battery. It needs
2.1Quick Search
6 hours charging time by connecting power adaptor with
external power or car charging. After it's full charge, it
works for more than 5 hours (It also depends on the load
of external antenna).
Notice: For initial charge, please make battery fully-
charged(We suggest it charge for 8 hours).
2.MENU
Press " MENU" key to enter into main menu, and
4 | Digita Satellite Meter Digita Satellite Meter | 5
T H E P R O F E S S I O N A L E Q U I P M E N T - - - - - - - - - - - - - - - - - - | U S E R 'S M A N U A L | T H E P R O F E S S I O N A L E Q U I P M E N T - - - - - - - - - - - - - - - - - - | U S E R 'S M A N U A L |
SYMBOL RATE
2.1.6 Polarity
Select Polar Mode(OFF/13V/18V)
2.1.7 22K Tone
Select 22K TONE(ON/OFF)
2.1.8 Longitude
2.1.1 Satellite Name Use the numerical button to input Longitude of
To select the satellite name for receiving signal Satellite
2.1.2 LNB Type 2.1.10 My Longitude
Select LNB Type Use the numerical button to input Longitude of
Local Region
2.1.3 LNB Low Freq/ LNB High Freq
Use the numerical button to input Freq Value for
2.1.11 My Latitude
Local Freq
Use the numerical button to input Latitude of Local
2.1.4 Frequency Regio
Us the numerical button to input Freq Value for
Down Freq. 2.1.12 Set parameters, and press "OK" button to enter the
Sub-menu, and then align direction of antenna according
2.1.5 Symbol Rate to the interface parameters.
Use the numerical button to input Value for
6 | Digita Satellite Meter Digita Satellite Meter | 7
T H E P R O F E S S I O N A L E Q U I P M E N T - - - - - - - - - - - - - - - - - - | U S E R 'S M A N U A L | T H E P R O F E S S I O N A L E Q U I P M E N T - - - - - - - - - - - - - - - - - - | U S E R 'S M A N U A L |
2.1.12.2 Scan All
Scan all programs of all channels, and automatically
store them after scanning, and then return back to the
previous menu.
2.1.12.3Zoom
Use button to select Zoom, and press "OK"
button to enter the Sub-menu, and then align the antenna
position to reach the best state.
2.1.12.1TP Scan
Scan all programs of the current frequency, and
automatically store them after scanning, and then
return back to the previous menu.
2.2 Satellite Install
8 | Digita Satellite Meter Digita Satellite Meter | 9
T H E P R O F E S S I O N A L E Q U I P M E N T - - - - - - - - - - - - - - - - - - | U S E R 'S M A N U A L | T H E P R O F E S S I O N A L E Q U I P M E N T - - - - - - - - - - - - - - - - - - | U S E R 'S M A N U A L |
2.2.1 Sat Manager
Press "OK" button to enter the Sub-menu, and then
set connecting state.
2.2.1.1 Switch Type
Press button to select Switch Type(NONE,
DisEqC1.0/1.1, DisEqC 1.2/USALS)
2.2.1.2Toneburst
Press button to select Toneburst mode 2.3 Multimedia
(OFF/ON).
2.2.2 TP Manager For Multimedia, the external memory should be inserted
into USB port. Otherwise, "Device not supported" will
Press "OK" button to enter the Sub-Menu, and
then make operations according to its instructions. pop up on the window.
10 | Digita Satellite Meter Digita Satellite Meter | 11
T H E P R O F E S S I O N A L E Q U I P M E N T - - - - - - - - - - - - - - - - - - | U S E R 'S M A N U A L | T H E P R O F E S S I O N A L E Q U I P M E N T - - - - - - - - - - - - - - - - - - | U S E R 'S M A N U A L |
2.3.1 Photo 2.4 System Setup
Previewing the pictures in JPG format, and make
operations according to its instructions.
2.4.1 OSD Language
2.3.2My Music Set OSD Language
Play the Music in MP3 format, and then make
operations according to its instructions.
12 | Digita Satellite Meter Digita Satellite Meter | 13
T H E P R O F E S S I O N A L E Q U I P M E N T - - - - - - - - - - - - - - - - - - | U S E R 'S M A N U A L | T H E P R O F E S S I O N A L E Q U I P M E N T - - - - - - - - - - - - - - - - - - | U S E R 'S M A N U A L |
2.4.2 SW Update 2.4.3 Set Defualt
To upgrade SW or Data throught USB port. Press "OK" button to set Factory Default.
To store the upgrading file in the external memory,
and insert it into USB port, and the enter upgrademenu. 2.4.4 GMT Usage
To select the file, it will automatically return back to
the previous menu after upgrade. Set the GMT parameter
2.5 Shortcut Buttons
2.5.1 Press "OK" button to enter the Sub-menu when
it's playing programs, and make operations according
to its instructions.
2.5.2Press "F1" button to enter the Sub-menu when it's
playing programs, and make operations according to its
instructions.
14 | Digita Satellite Meter Digita Satellite Meter | 15
T H E P R O F E S S I O N A L E Q U I P M E N T - - - - - - - - - - - - - - - - - - | U S E R 'S M A N U A L | T H E P R O F E S S I O N A L E Q U I P M E N T - - - - - - - - - - - - - - - - - - | U S E R 'S M A N U A L |
2 . 5 . 3 Press "F2" button to enter Sub-menu when it's
playing programs, and make operations according 2.5.5 Press "F4" button to enter the Sub-menu when it's
toits instructions. playing programs, and make operations according to its
instructions.
2.5.4 Press "F3" button to enter the Sub-menu when it's
playing programs, and make operations according to its
instructions.
16 | Digita Satellite Meter Digita Satellite Meter |17
T H E P R O F E S S I O N A L E Q U I P M E N T - - - - - - - - - - - - - - - - - - | U S E R 'S M A N U A L | T H E P R O F E S S I O N A L E Q U I P M E N T - - - - - - - - - - - - - - - - - - | U S E R 'S M A N U A L |
Chapter III Specifications Handing Precautions and Prohibitions of Battery in
Sat Meter
System Capabilities Fully DVB-S Compliant Yes
Connector F type, Female Warning:
Frequency Range 950MHz-2150MHz You are using Lithium ion batteries and Nickel metal hydride
Signal Level -65dBm~-25dBm batteries in the machine now, so Please don't work under
LNB input
LNB Powewr 13/18V,Max350mA high temprature or high pressure conditions. If the follo-
LNB Switch Control 22KHz wing items happened,abnormal chemical reaction mey occur
DiSEqC Ver 1.0/ 1.2 which will lead to the battery overheat, emit smoke,ignite
Front end QPSK and/or burst.
Demodulator Demodulation Range 2Mbps~45Mbps (1)incinerate and dispose the battery in fire or heat it;
SCPC and MCPC Capable Yes (2)pierce the battery with a nail or other sharp objects,strike
Processor 32bit processor (133MHz)
it with a hammer or step on it;
System Resources FLASH 8Mbyte
(3)immerse the batttery with water or connect the positive(+)
SDRAM 4*16Mbyte
and negative(-) terminals with a metal objects such as
MPEG 2 MP@ML
neckles, hair pins,etc.
Data Rate Max15M bits/s
Video Decoder
Resolution 720*576,720*480 Notice:
Video format PAL/NTSC/SECAM
MPEG MPEG-1&2 The battery is only applicable to the charger which
Audio Type Single supplied or appointed by the manufacturer of this machine.
Sampling Rate 32,44.1 & 48KHz The charging time should be minimum 5 hours for the first
Data Transfer Connector USB time, and it should not be charged over 12 hours after the
LI-ION battery 3000 mAH/8.4V Max
first time.
Power Supply In AC 100-220
Power Adaptor
Out DC 12V
Please keep your machine off when the battery is charging.
Size 9.5x15.5x4.5 (cm) The battery should be stored within a temperature range of
Physical characteristics
Net Weight 0.5KG 0 to 40.
When stored for a long period, charge the battery at least
18 | Digita Satellite Meter Digita Satellite Meter |19
T H E P R O F E S S I O N A L E Q U I P M E N T - - - - - - - - - - - - - - - - - - | U S E R 'S M A N U A L | T H E P R O F E S S I O N A L E Q U I P M E N T - - - - - - - - - - - - - - - - - - | U S E R 'S M A N U A L |
once per half month so as to prevent over discharge. 5.Product Standard Package
The battery is expendable.
Handling:
Improper setting of new battery may lead to the battery
burst.
Please use the battery only supplied by the manufacturer,if
you want to change a new battery.
Please do not put the battery in fire or dispose it together Car charger cable AV cable
with garbage.
Please contact the waste administrative institute in your
place to get the nearest battery collction station.
Power Strap
Carrying case
20 | Digita Satellite Meter | Digita Satellite Meter 21
