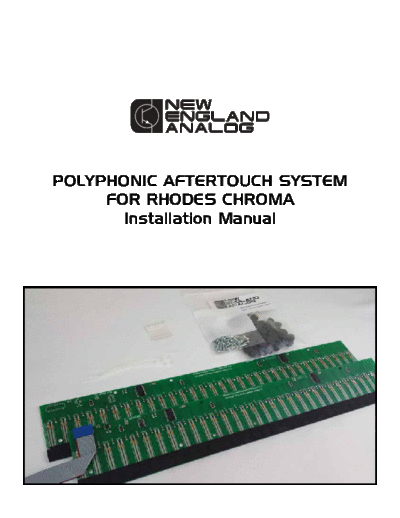

POLYPHONIC AFTERTOUCH SYSTEM
     FOR RHODES CHROMA
       Installation Manual
Introduction
     Thank you for purchasing a NEA Rhodes Chroma Aftertouch System.
     This product adds polyphonic aftertouch functionality to any Rhodes
     Chroma. Our aftertouch system uses high quality force-sensing-
     resistors that were designed for human touch applications, making
     them ideal for use in aftertouch systems. Each key's aftertouch
     sensitivity can be adjusted, allowing for uniform response across the
     Chroma's keyboard, which can require as much or as little pressure as
     your tastes require.
     The original aftertouch system for the Chroma required that the
     sensors be mounted to that back rail, which due to the mechanics of
     the Chroma keyboard, required more force than should have been
     necessary to engage aftertouch. The Chroma keyboard has the same
     style of keys as the Prophet T8 and Synclaviers, which both have
     fully adjustable, great feeling polyphonic aftertouch. The sensors in
     these two synths are located under the keys, which gives a significant
     mechanical advantage. (Requires less force to activate aftertouch)
     We decided to adapt the circuitry and mechanics from these synths
     into a system for the Chroma. We were able to take advantage of the
     Chroma's keyboard mechanics to make our aftertouch system feel
     great.
     This kit is easy to moderate in terms of difficulty, and can be installed
     in about 3 hours. We hope you enjoy our product.


Kit Contents
