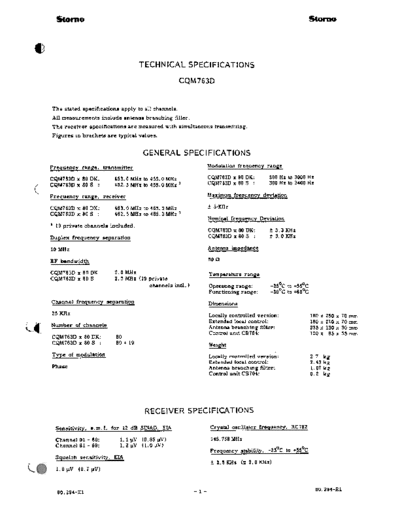

>> Download Storno CQM763D (low quality) documenatation <<Text preview - extract from the document Stomo Stomo
()
TECHNICAL SPECIFICATIONS
CQM763D
The stated specifications apply to all channels.
All measurements include antenna branching filter.
The receiver specifications are measured with simultaneous transmitting.
Figures in brachets are typical values.
GENERAL SPECIFICATIONS
Frequency range. transmitter Modulation frequency range
CQM763D x 80 DK: 453. O MHz to 455. O MHz CQM7630 x 80 OK: 300 Hz to 3000 Hz
( CQM763D x 80 S: 452.5 MHz to 455. O MHz I CQM7630 x 80 S: 300 Hz to 2400 Hz
Frequency range, receiver Maximum frequency deviation
CQM783D x 80 DK: 483. O MHz to 485. O MHz ~ S'KHz
CQM783D x 80 S: 482.5 MHz to 485. O MHz 1
Nominal frequency Deviation
119 private channels included.
CQM763D x 80 DK: ~ 3.3 KHz
Duplex frequency separation CQM763D x 80 S: ~ 3. O KHz
10 MHz Antenna impedance
RF bandwidth 50 il
CQM763D x 80 DK 2. O MHz
Temperature range
CQM763D x 80 S 2.5 MHz (19 private
channels incl. ) Operating range: -2SoC to +SSoC
Functioning range: -30
