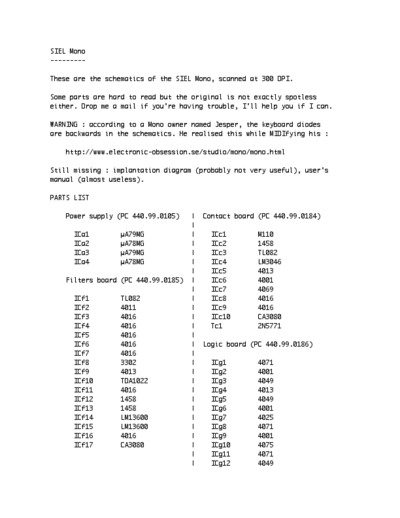

Image preview - the first page of the document
SIEL monoschematics


>> Download SIEL monoschematics documenatation <<

Text preview - extract from the document
SIEL Mono
---------

These are the schematics of the SIEL Mono, scanned at 300 DPI.

Some parts are hard to read but the original is not exactly spotless
either. Drop me a mail if you're having trouble, I'll help you if I can.

WARNING : according to a Mono owner named Jesper, the keyboard diodes
are backwards in the schematics. He realised this while MIDIfying his :

   http://www.electronic-obsession.se/studio/mono/mono.html

Still missing : implantation diagram (probably not very useful), user's
manual (almost useless).

PARTS LIST

   Power supply (PC 440.99.0105)    |   Contact board (PC 440.99.0184)
                                    |
     ICa1         A79MG             |    ICc1        M110
     ICa2         A78MG             |    ICc2        1458
     ICa3         A79MG             |    ICc3        TL082
     ICa4         A78MG             |    ICc4        LM3046
                                    |    ICc5        4013
   Filters board (PC 440.99.0185)   |    ICc6        4001
                                    |    ICc7        4069
     ICf1        TL082              |    ICc8        4016
     ICf2        4011               |    ICc9        4016
     ICf3        4016               |    ICc10       CA3080
     ICf4        4016               |    Tc1         2N5771
     ICf5        4016               |
     ICf6        4016               |   Logic board (PC 440.99.0186)
     ICf7        4016               |
     ICf8        3302               |    ICg1        4071
     ICf9        4013               |    ICg2        4001
     ICf10       TDA1022            |    ICg3        4049
     ICf11       4016               |    ICg4        4013
     ICf12       1458               |    ICg5        4049
     ICf13       1458               |    ICg6        4001
     ICf14       LM13600            |    ICg7        4025
     ICf15       LM13600            |    ICg8        4071
     ICf16       4016               |    ICg9        4001
     ICf17       CA3080             |    ICg10       4075
                                    |    ICg11       4071
                                    |    ICg12       4049
   All   PNP transistors BC416 unless otherwise indicated.
   All   NPN transistors BC173 unless otherwise indicated.
   All   diodes 1N4148 unless otherwise indicated.
   All   red LEDs FL V 117.
   All   green LEDs LT 233.

This is http://www.teaser.fr/~amajorel/mono/schematics/README, last
updated AYM 2007-05-31.
