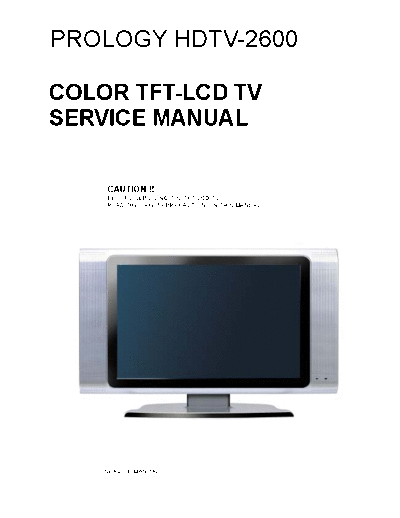

Image preview - the first page of the document



>> Download Prology HDTV-2600_v412-29.1 sm documenatation <<

Text preview - extract from the document

PROLOGY HDTV-2600

COLOR TFT-LCD TV
SERVICE MANUAL


    CAUTION !!
    BEFORE SERVICING THE TFT-LCD TV,
    READ THE SAFETY PRECAUTIONS IN THIS MANUAL.




    SERVICE MANUAL
                               CONTENTS

Contents ------------------------------------------------------------------------- 2

Safety precautions ----------------------------------------------------------- 3

Servicing precautions ------------------------------------------------------- 4

Specifications ------------------------------------------------------------------ 5

Location of control ----------------------------------------------------------- 9

Trouble Shooting ------------------------------------------------------------- 12

Deassembly procedure ---------------------------------------------------- 14

Exploded Drawing ----------------------------------------------------------- 19

Wire dressing ------------------------------------------------------------------ 21

Adjustment instruction with Default Factory Data----------------- 22

Inspection instruction ------------------------------------------------------ 24

PCB Layout --------------------------------------------------------------------- 28

Schematic Diagram -----------------------------------------------------------33

Replacement part list -------------------------------------------------------- 34

Block Diagram ----------------------------------------------------------------- 41

Circuit descriptions ---------------------------------------------------------- 42




   SERVICE MANUAL
                             SAFETY PRECAUTIONS

                             !! Important Safety Notice !!
  Many electrical and mechanical parts in this chassis have special safety-related
  characteristics.
  These parts are identified by in the Schematic Diagram and Replacement Parts List.
  It is essential that these special safety parts should be replaced with the same components
  as recommended in this manual to prevent Shock, Fire, or other Hazards.
  Do not modify the original design without permission of manufacturer.



Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor between a known good earth
ground (Water Pipe, Conduit, etc.) and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more
sensitivity.
Reverse plug of the AC cord into the AC outlet and repeat AC voltage measurements for each
exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS, which is,
corresponds to 0.5mA.
In case any measurement is out of the limits specified, there is possibility of shock hazard and
the set must be checked and repaired before it is returned to the customer.


Leakage Current Hot Check circuit




                SERVICE MANUAL
                           SERVICING PRECAUTIONS

CAUTION!!
Before servicing receivers covered by this service manual, read and follow the SAFETY
PRECAUTIONS on page 2 of this publication.

General Servicing Precautions
1.Always unplug the receiver AC power cord from AC power source before;
  Removing or reinstalling any component, circuit board module or any other receiver assembly.
  Disconnecting or reconnecting any receiver electrical plug or other electrical connection.
  Connecting a test substitute in parallel with an electrolytic capacitor in the receiver.
CAUTION!! A wrong part substitution or incorrect polarity installation of electrolytic capacitors
may result in an explosion harzard.
2.Do not spray chemicals on or near this receiver or any of its assemblies.
3.Do not defect any plug/socket voltage interlocks with which receivers covered by this service
  manual might be equipped.
4.Always connect the test receiver ground lead to the receiver chassis ground before
  connecting the test receiver positive lead. Always remove the test receiver ground lead last.
5.Do not connect the test fixture ground strap to power supply heatsink in this receiver

Electrostatically Sensitive(ES) Devices
Some semiconductor(solid state) devices can be damaged easily by static electricity. Such
components commonly are called Electrostatically Sensitive(ES) Device.Examples

Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive
that bonds the foil to the circuit board causing the foil th separate from or "lift-off" the board.
The following guidelines and procedures should be flollowed whenever this condition is
encountered.

At IC Connections
To repair a defective copper pattern at IC connections use the following procedure to install a
jumper wire on the copper pattern side of the circuit board.(Use this technique only on IC
connections.)

1.Carefully remove the damaged copper pattern with a sharp knife.
  (Remove only as much copper as absolutely necessary.)
2.Carefully scratch away the solder resist and acrylic coating(if used) from the end of the
  remaining coopper pattern.
3.Bend a small "U" in one end of a small guage jumper wire and carefully crimp it around the
  IC pin.
4.Route the jumper wire along the path of the out-away copper pattern and let it overlap the
  previously scraped end of the good copper pattern. Solder the overlapped area and clip off
  any excess jumper wire.




                SERVICE MANUAL
                                  SPECIFICATIONS
Note: Specifications and others are subject to change without notice for improvement.

1.Scope.
This document is the specification of 26" TFT-LCD Color TV.

2.Power
1) Power requirement
  DC 24V / 6A
2) AC / DC Adapter.
  Input Frequency : 50/60
