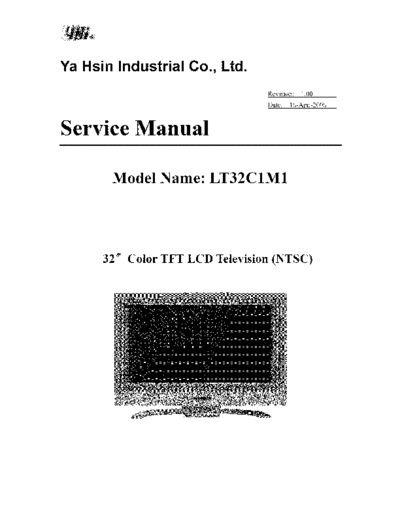

Image preview - the first page of the document
Protron+LT32C1M1+LCD


>> Download Protron+LT32C1M1+LCD documenatation <<

Text preview - extract from the document
Ya Hsin Industrial Co., Ltd.
                                  Revision:   1.00

                                  Date:   16-Apr.-2006



Service Manual

       Model Name: LT32C1M1




      32" Color TFT LCD Television (NTSC)
1.0 Product Description
 1.1 Introduction
 1.2 Features
 1.3 General          Information
 1.4 Outline         Dimension



2.0 Engineering Specifications
 2.1 TFT LCD                Panel Specifications:     AU T315XW01   V5
 2.2 Optical Characteristics
 2.3 I/O Connectors
 2.4 D-Sub          (Analog)       Input
 2.5 PC Audio               Input (line-in)
 2.6 ISP (In System               Programming)
 2.7 Analog          Compliant         Timings
 2.8 Power          Management
 2.9 Packaging               Specification
 2.10 Environmental                 Characteristics
 2.11 Safety



3.0 Functions                    & OSD Operation
 3.1 Function           Controls
 3.2 Remote           Controller
 3.30SD   Operating                Procedures
 3.4 PIP Structure



4.0 System descriptions
 4.1 System          block diagram            (1)
 4.2 System          Block      Diagram       (2)
 4.3 System          Circuitry
  4.3.1    Main     board

  4.3.2    Video    board

  4.3.3    Power     board

   4.3.4    Front    RCA board

   4.3.4    Key     board

 4.4 Pin Configuration
5.0 Mechanical Assembly
 5.1 Explore   Diagram
 5.2 Removal    and Replacement
   5.2.1 Remove and Replace   Stand
   5.2.2 Remove and Replace   Video board
   5.2.3 Remove and Replace   Rear cover
   5.2.4 Remove and Replace   Front RCA board and Card Reader(Option)
   5.2.5 Remove and Replace   Main board
   5.2.6 Remove and Replace   Power board
   5.2.7 Remove and Replace   Panel



6.0 Troubleshooting               Guide


7.0 Spare Part Material List
                                 1.0 Product Description
1.1 Introduction
       The purpose      of this service manual provides        integral information   for the qualified   skillful
       technicians    need to maintain     the LT32CxM1        (32.0- inches TFT-LCD      TV).


1.2 Features
   [       32" wide screen WXGA (1366*768)TFT LCD panel
           Analog PC signal input
           16 - CCFTs (Cold Cathode Fluorescent Tube)
           Supported to 85Hz refresh rate
           Supported to 16.7M colors display
           Supported VESA-DDC 2B plug & play function
           Supported VESA-DPMS power managelnent function
