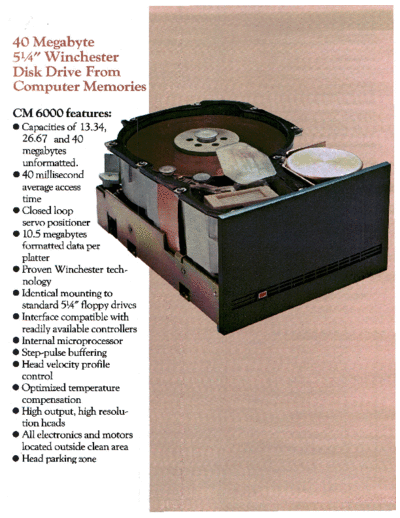

Image preview - the first page of the document
CMI_6000_data_sheet_198310xx


>> Download CMI_6000_data_sheet_198310xx documenatation <<

Text preview - extract from the document
40 Megabyte
51/4"Winchester
Disk Drive From
Computer Memories
CM 6000 features:
 Capacities of 13.34,
 26.67 and 40
 megabytes
 unformatted.
 40 millisecond
 average access
 time
 Closed loop
 servo positioner
 10.5 megabytes
 formatted data per
 platter
 Proven Winchester tech-
 nology
 Identical mounting to
 standard 5l/4"floppy drives
 Interface compatible with
 readily available controllers
 Internal microprocessor
 Step-pulse buffering
 Head velocity profile
 control
 Optimized temperature
 compensation
 High output, high resolu-
 tion heads
 All electronics and motors
 located outside clean area
 Head parking zone
  C M 6 0 0 0 disk drive, product infor-                                                         CM 6000 Specifications
  m a t i o n . The Computer Memories
  series of Winchester technology disk                                                           Performance        Specifications:
  drives offers high storage capacities                                                                               CM-6213         CM-6426   CM-6640
  in a minifloppy size package. The
  C M 6 0 0 0 series is available in 13.34,
  26.67 and 4 0 M Byte versions, all
  with average access time of only 40
  Msec. By means of a combination of
  Winchester technology and proven
  design techniques, the O E M is assured
  of the ultimate in quality and reliability.
         In order to ease system integration,
  the C M 6000 has the same physical
  dimensions and mounting hole loca-
  tions as a standard 5l/4"floppy disk
  drive. D C voltage requirements are also
  the same as a mini-floppy drive thus
  enabling the use of a single power
  supply for both types of drives.                                                               Functional       Specifications:
         The high capacities of the C M
  6000 are achieved by the utilization of
  a closed loop servo positioning system,
  on-board microprocessor, and manga-
  nese-zinc heads -- unique in such a
  small device. The combination of the
  swing-arm actuator, associated elec-
  tronics, and head allow the C M 6000
  to achieve a track density of 720TPI                                                           Physical      Specifications:
  and bit density of 9275 BPI.


                                    INTERFACE



                                                                                                 Mechanical       Dimensions:




                                                                                                 Reliability     Specifications:




Computer   Memories. I n c . Reserves the right to change specifications without n o t i c e .                                                     Rev 10/83 20M Printed in USA
