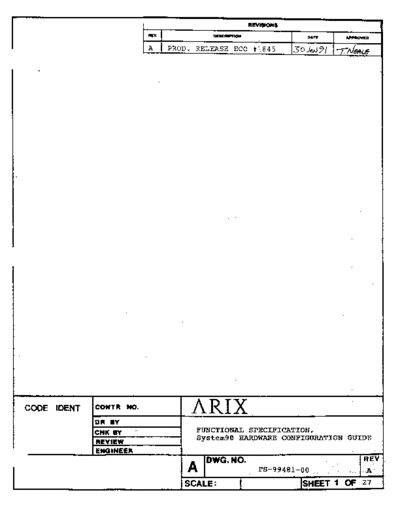

Image preview - the first page of the document



>> Download FS-99481-00_System90_Hardware_Configuration_Guide_Jan91 documenatation <<

Text preview - extract from the document

                                                           REVISIONS
                            MY.              DUCMt'1'ION                  DATE       ~


                            A     PROD~   RELEASE ECO #1845            30 JAN 9/   -rtJ64-L6-
  .                                                                                               ,




CODE IDENT   CONT~    NO.
                                          ARIX
             DR BY
             CHK BY                       FUNCTIONAL SPECIFICATION,
                                          System90 HARDWARE CONFIGURATION GUIDE
             REVIEW
             ENGINEEI'
                                            DWG.NO.                                        REV
                                      A                       FS-99481-00                  -.,A

                                     SCALE:            I                ISHEET 1 OF 27
                          System90 HARDWARE CONFIGURATION GUIDE

System90 HARDWARE CONFIGURATION GUIDELINES

The ARIX System90 offers a great deal of configuration flexibility. With this flexibility comes a degree of
complexity. This document details a set of rules and guidelines to assist in configuring System90. The rules
and guidelines presented here apply to current production systems as of the time of publication.

The following sections provide information and configuration rules for the various portions of the System90.
The information provided here applies primarily to the hardware portion of the system. There may be other
configuration requirements or limitations dictated by certain versions of software (operating system,
communications, networking, etc.) which are not addressed in this document. Keep in mind that several
items must be considered when configuring a System90. They include:
