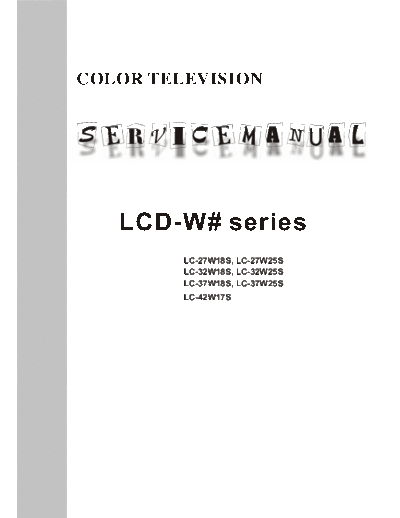

Image preview - the first page of the document
>> Download lc_27w18s_27w25s_32w18s_32w25s_37w18s_37w25s_42w17s_866 documenatation <<
Text preview - extract from the document
COLOR TELEVISION
LCD-W# series
LC-27W18S, LC-27W25S
LC-32W18S, LC-32W25S
LC-37W18S, LC-37W25S
LC-42W17S
CONTENTS
Safety precautions...................................................................................... 1
Alignment instructions .............................................................................. 3
Method of software upgrading .......................................................................10
Working principle analysis of the unit...............................................................13
Block diagram.......................................................................................... 14
IC block diagram.........................................................................................15
Wiring diagram ......................................................................................... 19
Assembly list............................................................................................ 20
Identification criteria for the bright spot and dark spot of the LCD screen............... 22
Troubleshooting............................................................................................
23
Schematic diagram .................................................................................... 34
Attention: This service manual is only for service personnel to take reference with. Before
servicing please read the following points carefully.
Safety precautions
1. Instructions
Be sure to switch off the power supply before replacing or welding any components or
inserting/plugging in connection wire Anti static measures to be taken (throughout the entire
production process!):
a) Do not touch here and there by hand at will;
b) Be sure to use anti static electric iron;
c) It's a must for the welder to wear anti static gloves.
Please refer to the detailed list before replacing components that have special safety requirements.
Do not change the specs and type at will.
2. Points for attention in servicing of LCD
2.1 Screens are different from one model to another and therefore not interchangeable. Be sure to
use the screen of the original model for replacement.
2.2 The operation voltage of LCD screen is 700-825V. Be sure to take proper measures in
protecting yourself and the machine when testing the system in the course of normal operation or
right after the power is switched off. Please do not touch the circuit or the metal part of the module
that is in operation mode. Relevant operation is possible only one minute after the power is
switched off.
2.3 Do not use any adapter that is not identical with the TV set. Otherwise it will cause fire or
damage to the set.
2.4 Never operate the set or do any installation work in bad environment such as wet bathroom,
laundry, kitchen, or nearby fire source, heating equipment and devices or exposure to sunlight etc.
Otherwise bad effect will result.
2.5 If any foreign substance such as water, liquid, metal slices or other matters happens to fall into
the module, be sure to cut the power off immediately and do not move anything on the module lest it
should cause fire or electric shock due to contact with the high voltage or short circuit.
2.6 Should there be smoke, abnormal smell or sound from the module, please shut the power off at
once. Likewise, if the screen is not working after the power is on or in the course of operation, the
power must be cut off immediately and no more operation is allowed under the same condition.
2.7 Do not pull out or plug in the connection wire when the module is in operation or just after the
power is off because in this case relatively high voltage still remains in the capacitor of the driving
circuit. Please wait at least one minute before the pulling out or plugging in the connection wire.
2.8 When operating or installing LCD please don't subject the LCD components to bending, twisting
or extrusion, collision lest mishap should result.
2.9 As most of the circuitry in LCD TV set is composed of CMOS integrated circuits, it's necessary
to pay attention to anti statics. Before servicing LCD TV make sure to take anti static measure and
ensure full grounding for all the parts that have to be grounded.
2.10 There are lots of connection wires between parts behind the LCD screen. When servicing or
moving the set please take care not to touch or scratch them. Once they are damaged the screen
1
would be unable to work and no way to get it repaired.
2.11 Special care must be taken in transporting or handling it. Exquisite shock vibration may lead to
breakage of screen glass or damage to driving circuit. Therefore it must be packed in a strong case
before the transportation or handling.
2.12 For the storage make sure to put it in a place where the environment can be controlled so as to
prevent the temperature and humidity from exceeding the limits as specified in the manual. For
prolonged storage, it is necessary to house it in an anti-moisture bag and put them altogether in one
place. The ambient conditions are tabulated as follows:
Temperature Scope for operation 0 ~ +50 oC
Scope for storage -20 ~ +60 oC
Humidity Scope for operation 20% ~ 85%
Scope for storage 10% ~ 90%
2.13 Display of a fixed picture for a long time may result in appearance of picture residue on the
screen, as commonly called "ghost shadow". The extent of the residual picture varies with the
maker of LCD screen. This phenomenon doesn't represent failure. This "ghost shadow" may remain
in the picture for a period of time (several minutes). But when operating it please avoid displaying
still picture in high brightness for a long time.
3. Points for attention during installation
3.1 The front panel of LCD screen is of glass. When installing it please make sure to put it in place.
3.2 For service or installation it's necessary to use specified screw lest it should damage the screen.
3.3 Be sure to take anti dust measures. Any foreign substance that happens to fall down between
the screen and the glass will affect the receiving and viewing effect
3.4 When dismantling or mounting the protective partition plate that is used for anti vibration and
insulation please take care to keep it in intactness so as to avoid hidden trouble.
3.5 Be sure to protect the cabinet from damage or scratch during service, dismantling or mounting.
2
Alignment instructions
1. Test equipment
PM5515 (Video signal generator)
PM54200(SCART signal generator)
VG-848(YUV, VGA and DVI signal generator)
K-7253 (VGA signal generator)
CA210 (White balancer)
2. The alignment flow chart (see below figure)
Check DDC and FLASH
Production of data processing board and
analogue board on the line.
Combined test for general assembly and aging
White balance adjustment
Connect to central signal source; check if various
TV functions (station skipping, modulate quantity
control etc), check if the output of earphone and
speaker are normal.
Input AV/S signal, SCART and HDTV signal;
check various functions under AV/S terminal
Input VGA signal and check if display is normal in
the state of PC and various functions (analog
quantity control, line/field center etc.)
Check accessories and then packing
Fig.1 Flow process of alignment
3 Unit adjustments
Method for entering factory menu: Press MENU -/-- 918 one by one, then enter factory
menu, press the SLEEP button to select adjustment page, exit factory menu to press the MENU
button.
3
4 EEPROM initialization
Enter the first page of factory menu, select "EEPROM INITIALIZE" to be "on", after turn off the unit,
repeating turn on the unit is over.
5 white balance adjustment
Input PAL signal of 16-level gray-scale (TIMING969 PATTAN921) from VG848 to AV channel, enter
user menu, set color to 0, APL to "off", enter factory menu white balance adjustment page, select
color temperature, fixed the GGAIN to 50H, adjust BGIAN and RGAIN to 400nits, then the color
coordinate to 284, 299. Fixed the BOFFSET to 50H, adjust GOFFSET and ROFFSET to 5nits, then
the color coordinate to 284, 299.
Select cool tint, adjust color coordinate to 270, 283.
Select warm tint, adjust color coordinate to 313, 329.
6. Performance Inspections
6.1 TV function
Enter the search menu auto search, connect RF-TV terminal to the central signal source, check if
there is station skipping.
6.2 AV/S input terminal
Input AV/S signal, check the picture and sound is normal
6.3 SCART terminal (note: check the SCART terminal, set display mode to AUTO)
6.3.1 Check SCART INPUT special function
6.3.1.1 SCART1 terminal function
a. After turn on the unit, connect the SCART1 to PM54200 signal generator, then the unit auto
select to SCART1 mode.
b. SCART signal generator sends CVBS signal to the unit, check if the image and sound is normal.
It sends image format (16:9 and 4:3) to the unit, check if the unit auto identify is normal. Change
SCART signal to RGB signal, check if the image and sound is normal, It sends image format (16:9
and 4:3) to the unit, check the unit auto identify is normal. Select the PIP mode, connect earphone
cable, and check if the sound is normal.
6.3.1.2 SCART2 terminal function
a. After turn on the unit, connect the SCART2 to PM54200 signal generator, then the unit auto
select to SCART2 AV mode.
b. SCART signal generator sends CVBS signal to the unit, check if the image and sound is normal.
It sends image format (16:9 and 4:3) to the unit, check if the unit auto identify is normal, and display
the SCART2 AV. Change SCART signal to Y/C signal, select the SCART2 Y/C channel mode,
check if the image and sound is normal, It sends image format (16:9 and 4:3) to the unit, check if the
unit auto identify is normal. Select the PIP mode, connect earphone cable, and check if the sound is
normal.
6.3.2 Check SCART OUTPUT special function
6.3.2.1 SCART1 terminal function
Input signal in the TV states, connect the SCART1 terminal to the TV. Change the TV program,
check if output signal of SCART1 is TV signal, and the image and sound is normal, change the unit
channel, the CART1 output TV signal, it can not other signal.
6.3.2.2 SCART2 terminal function
4
Input signal in the TV/AV/S states, connect the SCART2 terminal to the TV. Change the unit channel,
check if output signal of SCART2 is current signal, and the image and sound is normal.
6.4 YPbPr/YPbPr terminal
Input the YUV signal (VG-848 signal generator), separate input YUV format signal of table 1, check
if the image and sound is normal. If the image is deflection of the H-field, select auto sync correction
of the SCREEN menu. If the image is slight disturb, adjust the FINE TUNE correction of the
SCREEN menu. Open the PIP mode, connect the earphone, and check if the image and sound is
normal.
Table 1 YUV format signal
H-frequency(kHz) V-frenquency(Hz) signal
1 15.734 59.94 SDTV 480i
2 31.469 59.94 HDTV 480p
4 44.955 59.94 HDTV 720p
6 33.716 59.94 HDTV 1080i
7 15.625 50 SDTV 576i
8 31.25 50 HDTV 576p
9 33.75 50 HDTV 1080i
10 37.50 50 HDTV 720p
6.5 VGA terminal
Input the VGA signal (VG-848 signal generator), separate input VGA format signal of table 1, check
if the image and sound is normal. If the image is deflection of the H-field, select auto sync correction
of the SCREEN menu. If the image is slight disturb, adjust the FINE TUNE correction of the
SCREEN menu. Open the PIP mode, connect the earphone, and check if the image and sound is
normal.
6.6 HDMI terminal
HDMI signal format receive the three high definition signal: 480P, 576P, 720P/50/60 Hz, 1080I/50/60
Hz, except for the table 2 signal. Check if the image (contain HDCP ON and OFF) and sound is
normal. If the image is deflection of the H-field, select auto sync correction of the SCREEN menu.
Open the PIP mode, connect the earphone, and check if the image and sound is normal.
TABLE2 VGA signal format
Point clock pulse
resolution H-frequency(kHz) V-frenquency(Hz) remark
frenquency(MHz)
1 720 X 400 31.469 70.086 28.322 IBM
2 640 X 480 31.469 59.94 25.175 IBM
3 640 X 480 37.861 72.809 31.5 VESA
4 640 X 480 37.5 75 31.5 VESA
5 640 X 480 43.269 85.008 36 VESA
6 800 X 600 35.156 56.25 36 VESA
7 800 X 600 37.879 60.317 40 VESA
8 800 X 600 48.077 72.188 50 VESA
9 800 X 600 46.875 75 49.5 VESA
10 800 X 600 53.674 85.061 56.25 VESA
11 1024 X 768 48.363 60.004 65 VESA
5
12 1024 X 768 56.476 70.069 75 VESA
13 1024 X 768 60.023 75.029 78.75 VESA
14 1280 X 1024 63.98 60.02 108.00 VESA
15 1024 X 768 68.667 84.98 94.486 VESA
6.7 ex-factory setting see to TABLE 3 - TABLE 9
TABLE 3 Factory Option Menus
Items Ex-factory setting
IIC Bus-off Off
EEPROM Erase Off
Backlight Adjustable Off
Back Light 100
Menu Timeout 5
Blank switch enable On
ShowLogo On
Auto Program Sort On
West Europe / East Europe / Cyrillic / Turkish
TT Char Group
/Greek/Arabic/Hebrew
Dynamic Scart Off
Note: the latter 6 items should set according to clients' require.
TABLE 4 Factory Audio Setting
Ex-factory setting
Items
LC-27W18S/27W25S LC-32W25S LC-37W25S LC-42W17S
Volume 1 2CH 2CH 2CH 2CH
Volume 25 55H 57H 5AH 5AH
Volume 50 5CH 5EH 61H 61H
Volume 75 64H 65H 69H 69H
Volume 100 6BH 6DH 72H 72H
HP VOLUME SETTING
Volume 1 64H
Volume 25 96H
Volume 50 A1H
Volume 75 AEH
Volume 100 BEH
MSP Scart1 Volume 72H
Prescale Scart 4CH
Prescale FM/AM 27H
Prescale Nicam 64H
Scart TV Volume 20H
Scart AV Volume 72H
6
D/K select HDEV3 Off
AVC Off
Equalizer Bands Max 60H
Spatial Mode 0
Spatial Strength 00H
TABLE 5 Factory Video limit Setting
Items CVBS SC-RGB YPBPR D-SUB HDMI
Bright Min D5H CFH C7H CFH D2H
Bright Middle 00H 00H 03H 05H 07H
Bright Max 38H 3DH 34H 3DH 31H
Contrast Min 09H 09H 09H 09H 08H
Contrast Middle 20 25H 20H 25H 23H
Contrast Max 2AH 31H 29H 31H 2CH
Sharpness Min 00H 00H 00H 00H 00H
Sharpness 10H 10H 10H 10H
10H
Middle
Sharpness Max 1FH 1FH 1FH 1FH 1FH
Color Min 00H 00H 00H 00H 00H
Color Middle 1DH 1DH 1DH 1DH 1DH
Color Max 2DH 2DH 2DH 2DH 2DH
Hue Min 80H 80H 80H 80H 80H
Hue Middle 20H 20H 20H 20H 20H
Hue Max 7FH 7FH 7FH 7FH 7FH
TABLE 6 White Balance Adjust
Items LC-27WXXS LC-32WXXS LC-37WXXS LC-42WXXS
R Offset 55 55 54 53
G Offset 51 53 57 49
B Offset 50 50 50 50
R Gain 42 36 36 37
G Gain 50 50 50 50
B Gain 21 40 51 38
Brightness 51 51 51 51
Contrast 100 100 100 100
Color Temperature Standard
R Offset 60 59 58 55
G Offset 55 55 58 52
7
B Offset 50 50 50 50
R Gain 35 25 24 32
G Gain 50 50 50 50
B Gain 28 48 61 48
Brightness 51 51 51 51
Contrast 100 100 100 100
Color Temperature Cold
R Offset 55 49 49 44
G Offset 53 51 53 47
B Offset 50 50 50 50
R Gain 62 51 58 66
G Gain 50 50 50 50
B Gain 8 23 33 22
Brightness 51 51 51 51
Contrast 100 100 100 100
Color Temperature Warm
TABLE 7 Image analog setting
CVBS Vivid Standard Mild Custom
Contrast 90 80 50 80
Brightness 40 35 35 35
Color 70 60 40 60
Hue 00 00 00 00
Sharpness 60 50 30 50
SC-RGB Vivid Standard Mild Custom
Contrast 90 85 50 85
Brightness 60 50 35 50
Color 80 65 40 65
Hue 00 00 00 00
Sharpness 60 50 30 50
YPBPR Vivid Standard Mild Custom
Contrast 90 85 50 85
Brightness 50 40 35 50
Color 80 65 40 65
Hue 00 00 00 00
Sharpness 60 50 30 50
D-SUB Vivid Standard Mild Custom
Contrast 90 80 50 80
Brightness 50 40 35 40
Color 80 65 40 65
Hue 00 00 00 00
Sharpness 60 50 30 50
8
HDMI Vivid Standard Mild Custom
Contrast 90 80 50 80
Brightness 50 35 35 35
Color 80 70 40 70
Hue 00 00 00 00
Sharpness 60 50 30 50
Note: in factory menu states, it can change the factory mode to value of the image and sound,
else select the image and sound balanced value in the other states.
TABLE9 SOUND equilibrium value setting
Live Pop Rock Custom
120 Hz 50 50 65 50
500 Hz 50 50 55 50
1.5 kHz 50 60 55 50
5 kHz 80 70 55 50
10 kHz 85 70 55 50
6.8 Ex-factory setting of user menu
6.8.1 select TV channel
6.8.2 video menu, Mode: Standard, NR: Medium, APL:ON
6.8.3 sound menu, Volume: 20, Balance: 00, Equalizer: Custom, HP Volume: 20;
6.8.4 edit menu, Color System: Auto, Sound System: DK;
6.8.5 option menu, Default Zoom: Auto, Child Lock: Off, Menu Language: English, Country: UK,
WSS: OFF, Blue Screen: On.
Note: the 6.8.4 and 6.8.5 items should set according to clients require.
9
Method of software upgrading
1. Enter the software upgrading state of the TV
Method 1: press the VOL- button in the unit, turn on the main power switch, then the screen
display black screen, but the indicator to blue.
Method 2: Enter factory menu, select the IIC-BUS OFF item.
2. Connection upgrading tools with upgrading port.
3. Dual- click IAPWriter logo, enter the upgrading states (if the PC and the IIC communication
trouble, it can prompt.
4. Select the file menu load the software follow as:
10
5. Select WRITE DEVICE item of the device menu, till the right screen display "DONE".
6. turn off the power , restart the unit.
Note: because of the software, it may be no-stabilization, the software can auto download
and write.
Upgrading tools
Connection cable
11
Upgrading port
NOTE: Do not shut the power off or turn the TV set on during the FLASH write. Otherwise it may
lead to no way for flash to rewrite.
12
Working principle analysis of the unit
1. Analog signal flow
Antenna reception signal send to integrative tuner (contain HF and IF amplifier circuit), the tuner is
controlled the command (SDA and SCL) of the MCU N301 (M16C), select appropriate channel to
system switch, via HF amplifier and IF amplifier decode, output video signal of 2VPP and sound
signal of 1VPP.
Sound signal (SCART1, 2 sound, AV sound, YPbPr, HDMI and D-SUB) via N581 HEF4052BT
(sound diverter switch) to output signal, it send to N801(MPS3410 sound processing and volume
control) switch of audio. Select right/left sound channel, their send to digital sound amplifier N803
(TPA3008) amplify, then send to speaker.
After output video signal of tuner, SCART1 video signal and RGB signal via matched resistance, the
signal thought alone channel send to main decode IC(N101 SVP-EX52) video switch, A/D
transition, digital decode, image scale and OSD superposition, then send to LVDS level drive for
LCD screen.
AV, S-Video, SCART2 video and Y/C signal thought matched resistance, the signal send to the
N506 video switch (SN74CBT3257CDR), via switching to selected signal (EX52_Y and EX52_C) to
main decode IC (N101 SVP-EX52) video switch, A/D transition, digital decode, image scale and
OSD superposition, then send to LVDS level drive for LCD screen.
D-sub and YPbPr signal thought matched resistance, the signal send to the N507 video switch
(SN74CBT3257CDR), via switching to selected signal (EX52_YUV) to main decode IC (N101
SVP-EX52) video switch, A/D transition, digital decode, image scale and OSD superposition, then
send to LVDS level drive for LCD screen.
2. Digital signal flow:
HDMI signal thought HDMI reception chip N405 (SiI9011HDMI with HDCP function), after receive,
output digital format signal send to SVP-EX52 PIP channel thought image scale and OSD
superposition, then send to LVDS level drive for LCD screen. The HDMI chip output audio digital
format signal change to analog sound signal from N403 (CS4344 audio DA transfer chip), then
N581 switched to N801 (MPS3410 sound processing and volume control).
3. TELETEXT function
This unit adopt main decode IC N101(SVP-EX52) of Trident company, it has TELETEXT decode
function, after decoded, the teletext information in OSD display.
13
Block diagram
14
IC block diagram
1. Sound processing IC (MSP3410)
Sound signal send to sound processing N801 MSP3410, and dual-circuit tuner has second SIF, it
sends to N801 (stereo decode and auto volume control), N801 has audio channel switch, after
switching in N581 (HEF4052BT), the audio input of VGA/HDMI/YPbPr will be sent to N801 together
with the audio signal of TV and AV to do the switching process. A way signal thought volume and
high-low sound controlled, output the left and right audio send to digital audio amplifier N803
(TPA3008) amplify, then it send to speaker, other way signal output left-right audio send to
earphone amplifier N805 (NJW1109), after audio control and power amplifier, it output to earphone
socket. Other two ways signal output audio of TV out and AV out by SCART terminal of video board.
MSP3410 internal block diagram as follow:
Main pins instructions:
2, 3: SCL, SDA
27, 28: left-right audio of audio power amplification
36, 37: left-right audio of earphone
24, 25: left-right audio of AV OUT
33, 34: left-right audio of TV OUT
47, 48: left-right audio from main board
50, 51: left-right audio of SCART2
53, 54: left-right audio of SCART1
56, 57: left-right audio of AV IN
67, 69: SIF input of sub-channel and main-channel TV
59: MONO input of sub-channel TV
15
2. Sub-channel and SCART video signal decode IC (TVP5147)
Sub-tuner TUNER202 decode video, AV, S-VIDEO, SCART1 video, SCART2 video and Y/C signal,
after matching impedance, enter decoding IC N601 (TVP5147), so the PIP image of sub-channel
can selecting arbitrary video signal.
MSP3410 internal block diagram as follow:
TVP5147 main pins instructions:
28, 29: SCL, SDA
22: Video input for SCART1
7, 80: Y/C signal input for SCART2
16: video signal input of sub-tuner
8: Y signal input of AV or S-Video
1: C signal input of S-Video
9, 2, 18: YUV signal input of compatible DTV
16
3. Reception HDMI signal (SiI9011)
After differential signal of HDMI send to N405 (SiI9011), then it transform 24bit for video digital
signal, and sent to IC N101 (SVP-EX52) processing.
SiI9011 internal block diagram as follow:
4. Main decode and processing IC(DPTV-SVP-EX52)
SVP-EX52 internal block diagram as follow:
17
SVP-EX52 main pins instructions:
14, 16: SCL, SDA
10, 11: VGAHS, VGAVS input,
244, 231: EX52_Y and EX52_C input
243: main tuner video signal input
242: video signal input for Scart1
226, 248, 233: Scart1 RGB input
246, 232, 225: EX52_YUV input
236, 237: video output for SCART2
18
Wiring diagram
19
Assembly list
LC-27W18S/LC-27W25S
Name Part No. Main IC and No.
Data processing board 667-L27W18-69 N101 DPTV-SVP-EX52 (353-DPTV0-20)
N201 K4D2632838F (353-26323-10)
N302 W29C040P-90B (353-29040-30)
N301 M30620SPGP (353-30620-20)
N601 TVP5147PFP (353-51470-10)
N405 SiI9011CLU (353-90110-10)
N403 CS4344CZZ (353-43440-10)
Audio processing board 667-L27W18-15 TUNER201 JS-6B2/122A2-A2 (590-40512-00)
TUNER202 JS-6B2/121A2 (590-40511-00)
N801 MSP3410G (353-34100-80)
N803 TPA3008D2 (353-30080-10)
N805 NJW1109M (353-11092-20)
Video processing board 667-L27W18-40
IR reception board 667-L27W18-09
(LC-27W18S)
Button board 667-L27W18-05
(LC-27W18S)
667-L32W25-05
(LC-27W25S)
Power supply board 667-L27W18-20
LC-32W18S/LC-32W25S
Name Part no. Main IC and no.
Data processing board 667-L32W25-69 N101 DPTV-SVP-EX52 (353-DPTV0-20)
N201 K4D2632838F (353-26323-10)
N302 W29C040P-90B (353-29040-30)
N301 M30620SPGP (353-30620-20)
N601 TVP5147PFP (353-51470-10)
N405 SiI9011CLU (353-90110-10)
N403 CS4344CZZ (353-43440-10)
Audio processing board 667-L32W25-15 TUNER201 JS-6B2/122A2-A2 (590-40512-00)
TUNER202 JS-6B2/121A2 (590-40511-00)
N801 MSP3410G (353-34100-80)
N803 TPA3008D2 (353-30080-10)
N805 NJW1109M (353-11092-20)
Video processing board 667-L27W18-40
IR reception board 667-L32W18-09
(LC-32W18S)
Button board 667-L27W18-05
(LC-32W18S)
667-L32W25-05
(LC-32W25S)
20
Power supply board 667-L32K5-20A
LC-37W18S/LC-37W25S
Name Part no. Main IC and no.
Data processing board 667-L37W25-69 N101 DPTV-SVP-EX52 (353-DPTV0-20)
N201 K4D2632838F (353-26323-10)
N302 W29C040P-90B (353-29040-30)
N301 M30620SPGP (353-30620-20)
N601 TVP5147PFP (353-51470-10)
N405 SiI9011CLU (353-90110-10)
N403 CS4344CZZ (353-43440-10)
Audio processing board 667-L32W25-15 TUNER201 JS-6B2/122A2-A2 (590-40512-00)
TUNER202 JS-6B2/121A2 (590-40511-00)
N801 MSP3410G (353-34100-80)
N803 TPA3008D2 (353-30080-10)
N805 NJW1109M (353-11092-20)
Video processing board 667-L37W25-40
IR reception board 667-L37W18-09
(LC-37W18S)
Button board 667-L37W18-05
(LC-37W18S)
667-L37W25-05
(LC-37W25S)
Power supply board 667-L37K5-20C
LC-42W17S
Name Part no. Main IC and no.
Data processing board 667-L42W17-69 N101 DPTV-SVP-EX52 (353-DPTV0-20)
N201 K4D2632838F (353-26323-10)
N302 W29C040P-90B (353-29040-30)
N301 M30620SPGP (353-30620-20)
N601 TVP5147PFP (353-51470-10)
N405 SiI9011CLU (353-90110-10)
N403 CS4344CZZ (353-43440-10)
Audio processing board 667-L32W25-15 TUNER201 JS-6B2/122A2-A2 (590-40512-00)
TUNER202 JS-6B2/121A2 (590-40511-00)
N801 MSP3410G (353-34100-80)
N803 TPA3008D2 (353-30080-10)
N805 NJW1109M (353-11092-20)
Video processing board 667-L42W17-40
IR reception board 667-L42W17-09
Button board 667-L42W17-05
Power supply board 667-L42W17-20
21
Identification criteria for the bright spot and dark spot of the LCD screen
quantity allowed Distance between two spots
Category criteria
15" 20" 22" 30" 40" 15" 20" 22" 30" 40"
One single
5 2 5 2 3
spot
Bright Two
15mm
spot neighboring 2 1 2 1 1
spots
Total No. 5 2 5 2 3
15mm
One single
6 7 5 4 10
spot
Dark Two
10mm 5mm
spots neighboring 2 2 2 1 5
spots
Total No. 6 7 5 4 10
Total defected point 8 7 5 4 /
Notes:
1. Definition of defected point (bright spot, dark spot): It is identified as a defected point if its area
exceeds 1/2 of a single picture element (R, G, B).
2. Definition of bright spot: It is identified as a bright spot if it is bright in the state of dark field and its
bright size remains unchanged
3. Definition of dark spot: It is identified as a dark spot if it is dark in the state of white field and its
dark size remains unchanged
4. Definition of two neighboring points: Defects of a group of picture elements (RB,RG,GB).
22
Trouble shooting
1. Fault clearance
Before servicing please check to find the possible causes of the troubles according to the table
below.
1.1 Antenna (signal):
Picture is out of focus or jumping Bad status in signal receiving
Poor signal
Check if there are failures with the electrical connector or
the antenna.
Check if the antenna is properly connected.
Fringe in picture Check if the antenna is correctly oriented.
Maybe there is electric wave reflected from hilltop or
building.
Picture is interfered by stripe shaped Possibly due to interference from automobile, train, high
bright spots voltage transmission line, neon lamp etc.
Maybe there is interference between antenna and power
supply line. Please try to separate them in a longer
distance.
Maybe the shielded-layer of signal wire is not connected
properly to the connector.
There appear streaks or light color Check if interfered by other equipment and if interfered
on the screen possibly by the equipment like transmitting antenna,
non-professional radio station and cellular phone.
1.2 TV set:
Symptoms Possible cause
Unable to switch the power on Check to see if the power plug has been inserted properly
into the socket.
No picture and sound Check to see if the power supply of liquid crystal TV has
been switched on. (As can be indicated by the red LED at
the front of the TV set)
See if it's receiving the signal that is transmitted from other
source than the station
Check if it's connected to the wrong terminal or if the input
mode is correct.
Check if the signal cable connection between video
frequency source and the liquid crystal TV set is correct.
Deterioration of color phase or color Check if all the picture setups have been corrected.
tone
Screen position or size is not proper Check is the screen position and size is correctly set up.
Picture is twisted and deformed Check to see if the picture-frame ratio is properly set up.
Picture color changed or colorless Check the "Component" or "RGB" settings of the liquid
crystal TV set and make proper adjustment according to the
23
signal types.
Picture too bright and there is Check if the contrast setting is too high.
distortion in the brightest area Possibly the output quality of DVD broadcaster is set too
high.
It maybe also due to improper terminal connection of the
video frequency signal in a certain position of the system.
Picture is whitish or too bright in the Check if the setting for the brightness is too high
darkest area of the picture Possibly the brightness grade of DVD player (broadcaster)
is set too high.
No picture or signal produced from Check if the cable is disconnected.
the displayer if "XXX in search" Check if it's connected to the proper terminal or if the input
appears. mode is correct.
There appears an indication - Check if the TV set can receive input signal. The signal is
"outside the receivable scope) not correctly identified and VGA format is beyond the
specified scope.
Remote control cannot work Check if the batteries are installed in the reverse order.
properly Check if the battery is effective.
Check the distance or angle from the monitor.
Check if there is any obstruct between the remote control
and the TV set.
Check if the remote control signal- receiving window is
exposed to strong fluorescence.
No picture and sound, but only Check if the antenna cable is correctly connected, or if it
hash. has received the video signal correctly.
Blur picture Check if the antenna cable is correctly connected.
Of if it has received the right video signal.
No sound Check if the "mute" audio frequency setting is selected.
Check if the sound volume is set to minimum.
Make sure the earphone is not connected.
Check if the cable connection is loose.
When playing VHS picture search When being played or in pause VHS picture search tape
tape, there are lines at the top or sometimes can't provide stable picture, which may lead to
bottom of the picture. incorrect display of the liquid crystal TV, In this case please
press "auto" key on the remote control so as to enable the
liquid crystal TV set to recheck the signal and then to
display correct picture signal
24
2. Troubleshooting guide
Connect the power
No
A red indicator lights? Check Power supply, infra-red board, CPU and
its periphery circuit (flash) and power cord
Yes, turn the unit on
No Check if the pin 42 of CPU is square-wave; check
A blue indicator lights? the periphery circuit of CPU and FLASH/SRAM
Yes
No Check backlight board, CPU pin 77-backlight
Does backlight light up control condition.
Yes
Check the signal inputted from the channel to pin IC
Check if the display of each No is normal or IC and its periphery is normal or the
channel's video signal is normal output of LVDS is normal
Check the signal inputted from the channel to pin IC
Check if the display of each No is normal or IC(TPA3008D2/MSP3410) and its
channel's audio signal is normal
periphery is normal
( 1) , No raster, no picture and no sound
No raster, no picture and no sound
Is the power indicator lights?
Is the blue indicator Yes No Check Standby5V
lights?
No Yes Normal Abnormal
Check the power supply Check I2C
Disconnect the power supply board
of CPU(N301) and bus of the
with the data processing board, and
FLASH(N302) system
then measure Standby5V
Abnormal Normal Normal Abnormal
Disconnect CN902, and then The power
Check the capacitor of
Check the pin 10 find out that which part fails supply board
L301 and the periphery of
of CPU is high to work properly fails to work
CPU and FLASH
level or not properly
25
Yes No
Check if pin 42 of Check N301 and its reset circuit◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
