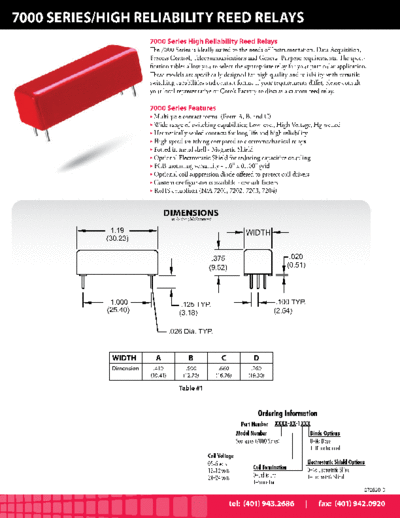

Image preview - the first page of the document
7000_series_reed_relay_datasheet


>> Download 7000_series_reed_relay_datasheet documenatation <<

Text preview - extract from the document
7000 SERIES/HIGH RELIABILITY REED RELAYS
                          7000 Series High Reliability Reed Relays
                          The 7000 Series is ideally suited to the needs of Instrumentation, Data Acquisition,
                          Process Control, Telecommunications and General Purpose requirements. The speci-
                          fication tables allow you to select the appropriate relay for your particular application.
                          These models are specifically designed for high quality and reliability with versatile
                          switching capabilities and contact forms. If your requirements differ, please consult
                          your local representative or Coto's Factory to discuss a custom reed relay.

                          7000 Series Features
                          u Multi-pole contact forms (Form A, B, and C)

                          u Wide range of switching capabilities; Low level, High Voltage, Hg wetted

                          u Hermetically sealed contacts for long life and high reliability

                          u High speed switching compared to electromechanical relays

                          u Potted in metal shell - Magnetic Shield

                          u Optional Electrostatic Shield for reducing capacitive coupling

                          u PCB mounting versatility - 1.0" x 0.100" grid

                          u Optional coil suppression diode offered to protect coil drivers

                          u Custom configurations available - consult factory

                          u RoHS compliant (N/A 7201, 7202, 7203, 7204)




                                DIMENSIONS
                                    in Inches (Millimeters)

             1.19                                                            WIDTH
            (30.23)

                                                          .375                                       .020
                                                         (9.52)                                     (0.51)




              1.000                      .125 TYP.                                           .100 TYP.
             (25.40)                    (3.18)                                              (2.54)

                                    .026 Dia. TYP.


              WIDTH         A                 B                 C                D
              Dimension     .410           .500                .660             .760
                          (10.41)         (12.70)             (16.76)         (19.30)

                                        Table #1


                                                                                   Ordering Information
                                                                          Part Number        XXXX-XX-1XXX
                                                                        Model Number                          Diode Options
                                                                        See Tables (7000 Series)              0=No Diode
                                                                                                              1=Diode Included
                                                         Coil Voltage
                                                         05=5 volts                                          Electrostatic Shield Options
                                                                                 Coil Termination            0=No Electrostatic Shield
                                                         12=12 volts
                                                         24=24 volts             0=End to End                1=Electrostatic Shield
                                                                                 1=Same End
                                                                                                                                        07082013

                                                                    tel: (401) 943.2686                  |        fax: (401) 942.0920
        7000 SERIES
        Parameters                     Test Conditions              Units        Form A, B2      Form C        Form A3          Form A
                                                                                                               Hg Wetted         High
                                                                                                                                Voltage
        CONTACT RATINGS
        Switching Voltage             Max DC/Peak AC Resist.         Volts          200            150           500              500
        Switching Current             Max DC/Peak AC Resist.         Amps           0.5            0.25           1.0             0.5
        Carry Current                 Max DC/Peak AC Resist.         Amps           2.0            0.5            2.0             2.0
        Contact Rating                Max DC/Peak AC Resist.         Watts           10             3             50              10
        Life Expectancy-Typical   1
                                      Signal Level 1.0V, 10mA      x 10 Ops.
                                                                      6
                                                                                    1000           100           1000             100
        Static Contact
                                            50mV, 10mA                             0.100          0.150          0.075           0.100
        Resistance (max. init.)
        Dynamic Contact                     0.5V, 50mA
                                                                                   0.150          0.200          0.100           0.150
        Resistance (max. init.)         at 100 Hz, 1.5 msec
        RELAY SPECIFICATIONS
        Insulation Resistance         Between all Isolated Pins
                                                                                    1012           1010          1012             1012
        (minimum)                      at 100V, 25
