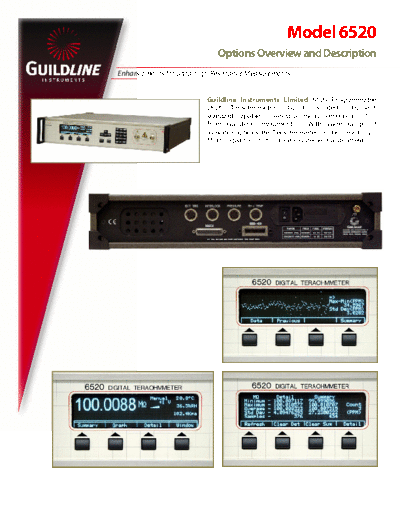

                                                   Model 6520
                             OptionsOverviewandDescription
Enhancements for Ultra-high Resistance Measurements


                          Guildline Instruments Limited 6520 Programmable
                          Digital Teraohmmeter is Guildline's latest instrument
                          standard capable of Resistive measurements to 1016
                          from Guildline Instruments.       With wide range of
                          available options, the Teraohmmeter can become truly a
                          Metrologist tool, not just a measurement Instrument.




                                                                               1
6520 Option Description

65201 PENN AIRBORNE (REFERENCE FIGURE 1)
The 65201 Penn Airborne enclosure is to allow the Penn Airborne series of High Value Resistors to be plugged directly
in for ease of measurements by the 6520. The connectors are plugged into the front of the 6520. Since the Penn
Airborne Resistors were susceptible to variables such as air flow and movement, this option is highly recommended if
you calibrate these resistors.


                                            Figure 1 - Penn Airborne Fixture




65220 ENVIRONMENTAL MONITOR
This option consists of two sensors that plug into the rear of the 6520. One sensor measures temperature and
humidity, the second sensor measures barometric pressure. The sensors convert a volt input into a full scale reading.
The temperature, humidity and pressure readings can be accessed via the front panel. The readings can also be time
stamped.

Combined Temperature/Humidity Sensor (Reference Figure 2 and Figure 3)                             Figure 2

Temperature/Humidity Sensor Construction

   The RH Sensor construction consists of a planar capacitor with a second polymer
   layer to protect against dirt, dust, oils and other hazards.

   The temperature sensors are precision integrated-circuit temperature sensors,
   whose output voltage is linearly proportional to the Celsius (Centigrade)
   temperature. The sensor thus has an advantage over linear temperature sensors
   calibrated in
