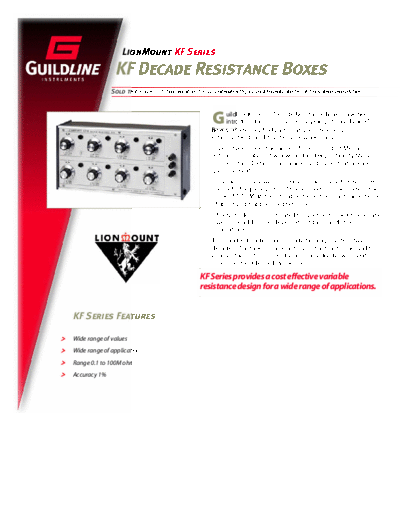

Image preview - the first page of the document
>> Download GuildlineKFDatasheet documenatation <<
Text preview - extract from the document
LionMount KF Series
KF Decade Resistance Boxes
Sold throughout the world to governments, educational authorities and industry
G uildline KF Series Decade Resistance Boxes have been
introduced as a complementary range to our Type RD
Boxes, where they find particular use in teaching
establishments and maintenance workshops.
Several types cover the range 0.1 ohm to 111.11 Megohms
with a combination of wirewound and High Stability Metal
Film resistors. Details of accuracies and current ratings are
given overleaf.
Since, all but the lowest two ranges have metal film resistors,
the useful frequency limit of these boxes is somewhere in the
range of 1-10 MHz, the limitation being the shunt capacitance
of about 20 pF at the input terminals.
Of very modest cost compared to other units, the KF series are
a welcome addition as development tools, and other
applications.
The 6 and 8 decade boxes include tapping points between
decades. The taps are brought out to the front panel and this
enables the unit to be used as a voltage divider with a ratio
which can be adjusted by the user.
KF Series provides a cost effective variable
resistance design for a wide range of applications.
KF Series Features
> Wide range of values
> Wide range of applications
> Range 0.1 to 100M ohms
> Accuracy 1%
KF Decade Resistance Boxes
KF Specifications
TYPE RANGE NUMBER OF DIMENSION and WEIGHT
DECADES (see code below)
KF1 0.1 ohm to 1.111 ohms 4 A
KF2 1 ohm to 11,110 ohms 4 A
KF3 10 ohm to 111,100 ohms 4 A
KF11 1000 ohm to 11.11 Megohms 4 A
KF16 1 ohm to 1,11 Megohms 6 B
KF17 0.1 ohm to 111,111 Kohms 6 B
KF18 10 ohm to 11,1111 Megohms 6 B
KF19 1 ohm to 111,11 Megohms 8 B
KF22 0.1 ohm to 11.11 Megohms 8 B
Current Rating, Accuracy of Decades
DECADE ACCURACY CURRENT RATING TYPE OF RESISTOR
x 0.1 5% 1 amp. max. High Stability Metal Film
x 1.0 2% 600 m.a. max. High Stability Metal Film
x 10 1% 200 m.a. max. High Stability Metal Film
x 100 1% 60 m.a. max. High Stability Metal Film
x 1000 1% 20 m.a. max. High Stability Metal Film
x 10K 1% 6 m.a. max. High Stability Metal Film
x 100K 1% 2 m.a. max. High Stability Metal Film
x 1 Meg 1% 350 volts max. High Stability Metal Film
x 10 Meg 1% 350 volts max. High Stability Metal Film
Continuous development may result in minor changes in internal and external design.
KF Series Ordering Information
KF/Type Decade Resistance Boxes
Certificate of Conformance (included)
Report of Calibration (extra charge)
GENERAL SPECIFICATIONS GUILDLINE IS DISTRIBUTED BY:
Dimensions
A 112 H x 90 W x 324 L mm (4.4 H x 3.5 W x 12.8 L in)
B 112 H x 180 W x 324 L mm (4.4 H x 7 W x 12.8 L in)
Weight
A 1.1 Kg (2.4 lbs)
B 1.7 Kg (3.8 lbs)
Guildline Instruments Limited
P.O. Box 99
21 Gilroy Street
Smiths Falls, Ontario Canada K7A 4S9
Phone: (613) 283-3000
FAX: (613) 283-6082
