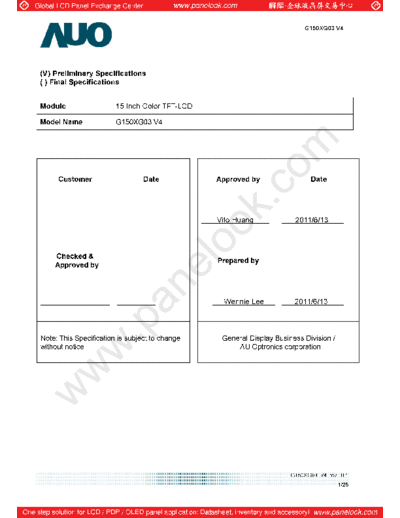

Image preview - the first page of the document
![Panel_AUO_G150XG03_V4_0_[DS]](/pics/5c36ac0de471b.gif)
>> Download Panel_AUO_G150XG03_V4_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
G150XG03 V4
(V ) Preliminary Specifications
( ) Final Specifications
Module 15 Inch Color TFT-LCD
Model Name G150XG03 V4
Customer Date Approved by Date
Vito Huang 2011/6/13
Checked &
Prepared by
Approved by
Wennie Lee 2011/6/13 __
Note: This Specification is subject to change General Display Business Division /
without notice. AU Optronics corporation
G150XG03 V4 rev. 0.1
1/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
G150XG03 V4
Contents
1. Operating Precautions.....................................................................................4
2. General Description .........................................................................................5
2.1 Display Characteristics...........................................................................................................5
2.2 Optical Characteristics ...........................................................................................................6
3. Functional Block Diagram ...............................................................................9
4. Absolute Maximum Ratings ..........................................................................10
4.1 Absolute Ratings of TFT LCD Module .................................................................................10
4.2 Absolute Ratings of Environment ........................................................................................10
5. Electrical Characteristics ..............................................................................11
5.1 TFT LCD Module .................................................................................................................. 11
5.2 Backlight Unit........................................................................................................................13
6. Signal Characteristic .....................................................................................14
6.1 Pixel Format Image ..............................................................................................................14
6.2 Scanning Direction ...............................................................................................................14
6.3 Signal Description ................................................................................................................15
6.4 The Input Data Format .........................................................................................................16
6.5 Interface Timing ....................................................................................................................17
6.6 Power ON/OFF Sequence ...................................................................................................18
7. Connector & Pin Assignment ........................................................................19
7.1 TFT LCD Module: LVDS Connector.....................................................................................19
7.2 Backlight Unit: LED Driver Connector .................................................................................20
7.3 LED Connector Pin Assignment ..........................................................................................21
9. Mechanical Characteristics ...........................................................................23
9.1 LCM Outline Dimension (Front View) ..................................................................................23
9.2 LCM Outline Dimension (Rear View)...................................................................................23
10. Label and Packaging....................................................................................24
10.1 Shipping Label (on the rear side of TFT-LCD display) ......................................................24
10.2 Carton Package .................................................................................................................24
11 Safety.............................................................................................................25
11.1 Sharp Edge Requirements.................................................................................................25
11.2 Materials .............................................................................................................................25
11.3 Capacitors...........................................................................................................................25
11.4 National Test Lab Requirement..........................................................................................25
G150XG03 V4 rev. 0.1
2/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
G150XG03 V4
Record of Revision
Version and Date Page Old description New Description
0.0 2011/6/8 All First Edition
0.1 2011/6/13 21 H208K-P06N-02B or compatible 3808K-F05N-02R or compatible
3808K-F06N-02R H208K-P05N-02B or compatible
G150XG03 V4 rev. 0.1
3/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
G150XG03 V4
1. Operating Precautions
1) Since front polarizer is easily damaged, please be cautious and not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or
spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or soft cloth.
5) Since the panel is made of glass, it may be broken or cracked if dropped or bumped on
hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human
earth when handling.
7) Do not open nor modify the module assembly.
8) Do not press the reflector sheet at the back of the module to any direction.
9) In case if a module has to be put back into the packing container slot after it was taken
out from the container, do not press the center of the CCFL Reflector edge. Instead,
press at the far ends of the CFL Reflector edge softly. Otherwise the TFT Module may
be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor
tilt the Interface Connector of the TFT Module.
11) TFT-LCD Module is not allowed to be twisted & bent even force is added on module in a
very short time. Please design your display product well to avoid external force applying
to module by end-user directly.
12) Small amount of materials without flammability grade are used in the TFT-LCD module.
The TFT-LCD module should be supplied by power complied with requirements of
Limited Power Source (IEC60950 or UL1950), or be applied exemption.
13) Severe temperature condition may result in different luminance, response time.
14) Continuous operating TFT-LCD Module under high temperature environment may
accelerate LED light bar exhaustion and reduce luminance dramatically.
15) The data on this specification sheet is applicable when TFT-LCD module is placed in
landscape position.
16) Continuous displaying fixed pattern may induce image sticking. It's recommended to
use screen saver or moving content periodically if fixed pattern is displayed on the
screen.
G150XG03 V4 rev. 0.1
4/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
2. General Description
G150XG03 V4 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a
driver circuit, and a backlight system. The screen format is intended to support XGA (1024(H) x
768(V)) screen and 16.2M (RGB 8-bits) or 262k colors (RGB 6-bits). All input signals are LVDS
interface compatible. All design rules of this module can correspond to PSWG standard.
G150XG03 V4 is designed for industrial display applications.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25
Items
Screen Diagonal
Active Area
Pixels H x V
Pixel Pitch
Pixel Arrangement
Display Mode
Nominal Input Voltage VDD
Typical Power Consumption
Weight
Physical Size
Electrical Interface
Surface Treatment
Support Color
Temperature Range
Operating
Storage (Non-Operating)
Unit
[inch]
[mm]
[mm]
[Volt]
[Watt]
[Grams]
[mm]
[]
[]
15
condition:
Specifications
304.128(H) x 228.096(V)
1024x3(RGB) x 768
0.297 x 0.297
R.G.B. Vertical Stripe
TN, Normally White
3.3 typ.
6.46 (64 Gray Bar Pattern)
1000g (max.)
326.5(H)x 253.5(V) x 12.0(D) (max.)
1 channel LVDS
Anti-glare, Hardness 3H
16.2M / 262K colors
-30 to +85
-30 to +85
G150XG03 V4
RoHS Compliance RoHS Compliance
G150XG03 V4 rev. 0.1
5/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
G150XG03 V4
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25 (Room Temperature):
Item Unit Conditions Min. Typ. Max. Note
[cd/m2]
White Luminance 200 250 - 1
%
Uniformity 9 Points 75 80 - 1, 2, 3
Contrast Ratio 400 700 - 4
Cross talk %
- 1.2 1.5 5
[msec] Rising 5.7
-
Response Time [msec] Falling - 2.3 6
[msec] Raising + Falling - 8
[degree] Horizontal (Right) 70 80 -
[degree] CR = 10 (Left)
70 80 -
Viewing Angle 7
Color / Chromaticity
Coordinates
(CIE 1931)
Color Gamut
Aperture
Test Point
Environment
mitiiti
