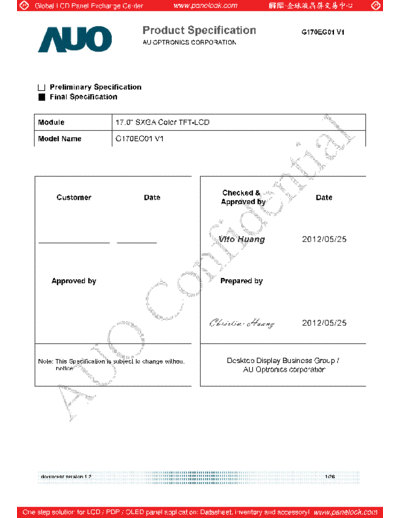

Image preview - the first page of the document
![Panel_AUO_G170EG01_V1_2_[DS]](/pics/5c36aca7820ec.gif)
>> Download Panel_AUO_G170EG01_V1_2_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Product Specification G170EG01 V1
AU OPTRONICS CORPORATION
Preliminary Specification
Final Specification
Module 17.0" SXGA Color TFT-LCD
Model Name G170EG01 V1
Checked &
Customer Date Date
Approved by
Vito Huang 2012/05/25
Approved by Prepared by
Christine Huang 2012/05/25
Note: This Specification is subject to change without Desktop Display Business Group /
notice. AU Optronics corporation
document version 1.2 1/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Product Specification G170EG01 V1
AU OPTRONICS CORPORATION
Contents
1. Handling Precautions .................................................................................................................. 4
2. General Description ..................................................................................................................... 5
2.1 Display Characteristics .......................................................................................................... 5
2.2 Optical Characteristics ........................................................................................................... 6
3. Functional Block Diagram.........................................................................................................10
4. Absolute Maximum Ratings......................................................................................................11
4.1 TFT LCD Module.................................................................................................................. 11
4.2 Backlight Unit ....................................................................................................................... 11
4.3 Absolute Ratings of Environment ........................................................................................ 11
5. Electrical characteristics ..........................................................................................................12
5.1 TFT LCD Module..................................................................................................................12
5.2 Backlight Unit .......................................................................................................................14
6. Signal Characteristic .................................................................................................................15
6.1 Pixel Format Image ..............................................................................................................15
6.2 The Input Data Format .........................................................................................................15
6.3 Signal Description ................................................................................................................16
6.4 Timing Characteristics..........................................................................................................18
6.5 Power ON/OFF Sequence...................................................................................................20
7. Connector & Pin Assignment ...................................................................................................22
7.1 TFT LCD Module..................................................................................................................22
7.2 Backlight Unit .......................................................................................................................23
8. Reliability Test ............................................................................................................................24
9. Label and Packaging .................................................................................................................25
9.1 Shipping Label (on the rear side of TFT-LCD display)........................................................25
9.2 Carton Package ...................................................................................................................25
10. Mechanical Characteristics ....................................................................................................26
document version 1.2 2/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Product Specification G170EG01 V1
AU OPTRONICS CORPORATION
Record of Revision
Version and Date Page Old description New Description Remark
0.1 2011/01/12 All First Edition for Customer All
0.2 2011/01/14 5 350
24
0.3 2011/01/24 11
26 Thickness= 15.8 mm Thickness= 18.0 mm
0.4 2011/04/06 5, 6 Optical ResponseTime= 5 ms Optical ResponseTime= 30 ms
5 This module does not contain an This module embbededs an LED
inverter card for backlight. driver on it.
5 Weight: 1800 (g) Typ. Weight: 1350 (g) Typ.
11
23 No pins drawing of LED driver board New add pins drawing
1.0 2011/09/30 Without RGB color coordinate
6
6
24 Without EMI item is RA list
25 Outside dimension of Outside dimension of
carton:434(L)mm*278(W)mm*3 carton:426(L)mm*270(W)mm*375
90(H)mm (H)mm
1.1 2012/02/01 Operation temperature -30 to +85 Operation temperature -30 to +70
5
1.2 2012/05/25 6 No Color Gamut spec Add Color Gamut 72%
document version 1.2 3/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Product Specification G170EG01 V1
AU OPTRONICS CORPORATION
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when
handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out
from the container, do not press the center of the LED light bar edge. Instead, press at the far ends
of the LED light bar edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module even
momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module
may be damaged.
12) Small amount of materials having no flammability grade is used in the LCD module. The LCD module
should be supplied by power complied with requirements of Limited Power Source (IEC60950 or
UL1950), or be applied exemption.
document version 1.2 4/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center
2. General Description
This specification applies to the 17 inch Color TFT-LCD Module G170EG01 V1.
The display supports the SXGA+ (1280(H) x 1024(V)) screen format and 16.7M colors (RGB 6-bits+Hi-FRC
data).All input signals are 2 Channel LVDS interface compatible.
This module embbededs an LED driver on it.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25
Screen Diagonal
Active Area
Pixels H x V
Pixel Pitch
Pixel Arrangement
Display Mode
White Luminance
Contrast Ratio
Optical ResponseTime
Nominal Input Voltage VDD
Power Consumption
(VDD line + LED line)
Weight
Electrical Interface
Surface Treatment
Support Color
Temperature Range
Operating
Items
Physical Size (H x V x D)
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Unit
[mm]
[mm]
[mm]
[cd/m ]
[msec]
[Volt]
[Watt]
[Grams]
[mm]
[oC]
2
432 (17.0")
condition:
Specifications
