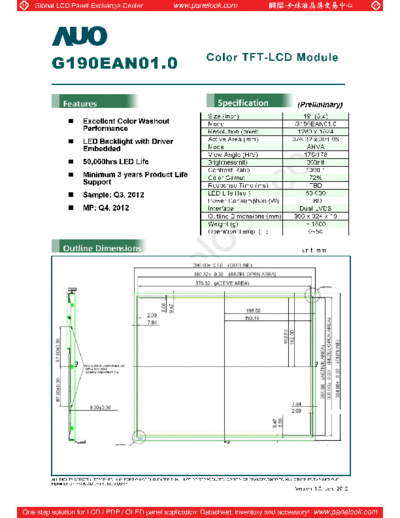

Color TFT-LCD Module
G190EAN01.0
(Preliminary)
Size (inch) 19" (5:4)
Excellent Color Washout Model G190EAN01.0
Performance Resolution (pixel) 1280 x 1024
LED Backlight with Driver Active Area (mm) 376.32 x 301.06
Embedded Mode AHVA
View Angle (H/V) 178/178
50,000hrs LED Life Brightness(nit) 300nit
Contrast Ratio 1000:1
Minimum 3 years Product Life Color Gamut 72%
Support Response Time (ms) TBD
Sample: Q3, 2012 LED Life (hrs.) 50,000
Power Consumption (W) TBD
MP: Q4, 2012 Interface Dual LVDS
Outline Dimensions (mm) 396 x 324 x 18
Weight (g) ~ 1800
Operation Temp. ( ) 0~50
unit: mm
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PAPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT
PERMISSION FROM AU OPTRONICS CORP.
Version 1.0, Jan. 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
