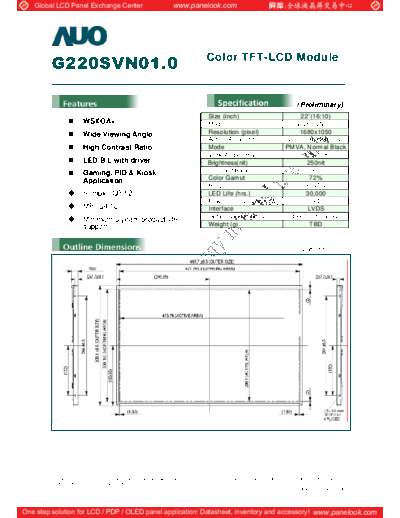

Image preview - the first page of the document
![Panel_AUO_G220SVN01-0_1_[DS]](/pics/5c36ad3f2874e.gif)
>> Download Panel_AUO_G220SVN01-0_1_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Color TFT-LCD Module
* 691
(Preliminary)
Size (inch) 22"(16:10)
WSXGA+ Model G220SVN01.0
Wide Viewing Angle Resolution (pixel) 1680x1050
Active Area (mm) 473.76(H)x296.1(V)
High Contrast Ratio Mode PMVA, Normal Black
View Angle (H/V) 178/178
LED B/L with driver Brightness(nit) 250nit
Contrast Ratio 2000:1
Gaming, PID & Kiosk
Application Color Gamut 72%
Response Time (ms) 8 GTG
Sample: Q3'12 LED Life (hrs.) 30,000
Power Consumption (W) TBD
MP: Q4'12 Interface LVDS
Outline Dimensions (mm) 493.7x320.1xTBD
Minimum 3 years product life
support Weight (g) TBD
unit: mm
TBD
4.0 mm
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PAPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT
PERMISSION FROM AU OPTRONICS CORP.
Version 1.2, June. 2008
