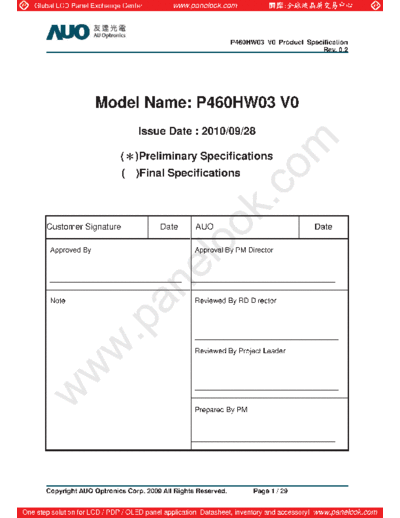

Image preview - the first page of the document
![Panel_AUO_P460HW03_V0_0_[DS]](/pics/5c36b1072c1e6.gif)
>> Download Panel_AUO_P460HW03_V0_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
P460HW03 V0 Product Specification
Rev. 0.2
Model Name: P460HW03 V0
Issue Date : 2010/09/28
( )Preliminary Specifications
( )Final Specifications
Customer Signature Date AUO Date
Approved By Approval By PM Director
_________________________________ ____________________________________
Note Reviewed By RD Director
____________________________________
Reviewed By Project Leader
____________________________________
Prepared By PM
____________________________________
Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 1 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
P460HW03 V0 Product Specification
Rev. 0.2
Contents
No
CONTENTS
RECORD OF REVISIONS
1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
3 ELECTRICAL SPECIFICATION
3-1 ELECTRIACL CHARACTERISTICS
3-2 INTERFACE CONNECTIONS
3-3 SIGNAL TIMING SPECIFICATION
3-4 SIGNAL TIMING WAVEFORM
3-5 COLOR INPUT DATA REFERENCE
3-6 POWER SEQUENCE
3-7 BACKLIGHT SPECIFICATION
4 OPTICAL SPECIFICATION
5 MECHANICAL CHARACTERISTICS
6 RELIABILITY TEST ITEMS
7 INTERNATIONAL STANDARD
7-1 SAFETY
7-2 EMC
8 PACKING
8-1 DEFINITION OF LABEL
8-2 PACKING METHODS
8-3 PALLET AND SHIPMENT INFORMATION
9 PRECAUTION
9-1 MOUNTING PRECAUTIONS
9-2 OPERATING PRECAUTIONS
9-3 ELECTROSTATIC DISCHARGE CONTROL
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE
9-5 STORAGE
9-6 HANDLING PRECAUTIONS FOR PROTECT FILM
Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 2 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
P460HW03 V0 Product Specification
Rev. 0.2
Record of Revision
Version Date Page Description
0.0 2010/9/27 First release
0.1 2010/12/22 4 Correct Haze Value from 2% to 11%
2011/01/13 20 Add suggest placement
Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 3 / 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
P460HW03 V0 Product Specification
Rev. 0.2
1. General Description
This specification applies to the 46 inch Color TFT-LCD Module P460HW03 V0. This LCD module has a TFT
active matrix type liquid crystal panel 1920 x 1080 pixels, and diagonal size of 46 inch. This module supports 1920
x 1080 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical
stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
The P460HW03 V0 has been designed to apply the 8-bit 2 channel LVDS interface method. It is intended to
support displays where high brightness, wide viewing angle, high color saturation, and high color depth.
* General Information
Items Specification Unit Note
Active Screen Size 46 inch
Display Area 1018.08(H) x 572.67(V) mm
Outline Dimension 1083.0(H) x 627.0(V) x 59.0(D) mm With Inverter
Driver Element a-Si TFT active matrix
Display Colors 8 bit, 16.7M Colors
Number of Pixels 1920 x 1080 Pixel
Pixel Pitch 0.53025 mm
Pixel Arrangement RGB vertical stripe
Display Mode Normally Black
Surface Treatment Anti-Glare, 3H Haze=11%
Life Time (minimum) 50,000 hours 1
Display Orientation Landscape/Portrait Enable
Note 1: Specified values are for a single lamp which is aligned horizontally. The life is determined as the
time at which luminance of the lamp is 50% compared to that of initial value at the typical lamp
current on condition of horizontally continuous operating at 25◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
