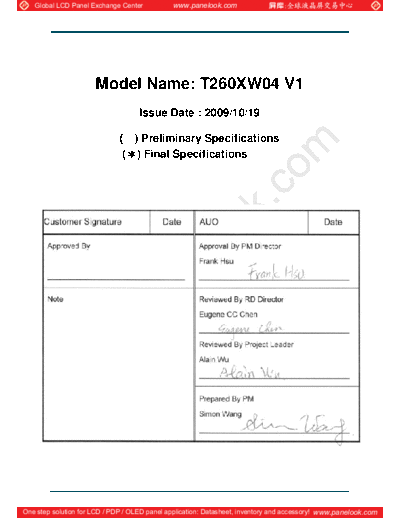

Image preview - the first page of the document
![Panel_AUO_T260XW04_V1_0_[DS]](/pics/5c36b33f0a6d7.gif)
>> Download Panel_AUO_T260XW04_V1_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Model Name: T260XW04 V1
Issue Date : 2009/10/19
( ) Preliminary Specifications
( ) Final Specifications
Customer Signature Date AUO Date
Approved By Approval By PM Director
Frank Hsu
_________________________________ ____________________________________
Note Reviewed By RD Director
Eugene CC Chen
____________________________________
Reviewed By Project Leader
Polo Shen
____________________________________
Prepared By PM
Derek Teng
____________________________________
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Contents
No
CONTENTS
RECORD OF REVISIONS
1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
3 ELECTRICAL SPECIFICATION
3-1 ELECTRIACL CHARACTERISTICS
3-2 INTERFACE CONNECTIONS
3-3 SIGNAL TIMING SPECIFICATION
3-4 SIGNAL TIMING WAVEFORM
3-5 COLOR INPUT DATA REFERENCE
3-6 POWER SEQUENCE
3-7 BACKLIGHT SPECIFICATION
4 OPTICAL SPECIFICATION
5 MECHANICAL CHARACTERISTICS
6 RELIABILITY TEST ITEMS
7 INTERNATIONAL STANDARD
7-1 SAFETY
7-2 EMC
8 PACKING
8-1 DEFINITION OF LABEL
8-2 PACKING METHODS
8-3 PALLET AND SHIPMENT INFORMATION
9 PRECAUTION
9-1 MOUNTING PRECAUTIONS
9-2 OPERATING PRECAUTIONS
9-3 ELECTROSTATIC DISCHARGE CONTROL
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE
9-5 STORAGE
9-6 HANDLING PRECAUTIONS FOR PROTECT FILM
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Record of Revision
Version Date Page Description
0.0 2009/10/19 First release
1.0 2010/01/04 Power and Lum.
2D Diagram
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
1. General Description
This specification applies to the 26.0 inch Color TFT-LCD Module T260XW04 V1. This LCD module has a
TFT active matrix type liquid crystal panel 1366x768 pixels, and diagonal size of 26.0 inch. This module
supports 768x1366 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are
arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray
scale signal for each dot.
The T260XW04 V1 has been designed to apply the 8-bit 1 channel LVDS interface method. It is intended to
support displays where high brightness, wide viewing angle, high color saturation, and high color depth are
very important.
* General Information
Items Specification Unit Note
Active Screen Size 26.00 inch
Display Area 575.769 (H) x 323.712(V) mm
Outline Dimension 626.0 (H) x 373.0 (V) x 49.6(D) mm Without inverter
Driver Element a-Si TFT active matrix
Display Colors 8 bit, 16.7M Colors
Number of Pixels 768 x1366 Pixel
Pixel Pitch 0.4215 (H) x 0.4215(W) mm
Pixel Arrangement RGB Horizontal stripe
Display Operation Mode Normally Black
Surface Treatment Anti-Glare, 3H Haze=13%
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
2. Absolute Maximum Ratings
The followings are maximum values which, if exceeded, may cause faulty operation or damage to the
unit
Item Symbol Min Max Unit Conditions
Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] Note 1
Input Voltage of Signal Vin -0.3 4 [Volt] Note 1
o
Operating Temperature TOP 0 +50 [ C] Note 2
Operating Humidity HOP 10 90 [%RH] Note 2
o
Storage Temperature TST -20 +60 [ C] Note 2
Storage Humidity HST 10 90 [%RH] Note 2
o
Panel Surface Temperature PST 65 [ C] Note 3
Note 1: Duration: 1sec.
Note 2 : Maximum Wet-Bulb should be 39 and No condensation.
The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At temperatures
greater than 40 , the wet bulb temperature must not exceed 39 .
Note 3: Surface temperature is measured at 50 Dry condition
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
3. Electrical Specification
The T260XW04 V1 requires two power inputs. One is employed to power the LCD electronics and to drive the
TFT array and liquid crystal. The second input for BLU is to power inverter.
3.1 Electrical Characteristics
Value
Parameter Symbol Unit Note
Min. Typ. Max
LCD
Power Supply Input Voltage (12V model) VDD 10.8 12 13.2 VDC 1
Power Supply Input Current (by Product define) IDD 0.27 0.35 A 2
Power Consumption (by Product define) PC 3.24 4.2 Watt 2
Inrush Current (by Product define) IRUSH 3.0 A 3
Differential Input High Threshold
VTH -- -- +100 4 4
Voltage
LVDS Differential Input Low Threshold
VTL -100 -- -- 4 4
Interface Voltage
Input Common Mode Voltage VICM 1.1 1.25 1.4 VDC 4
VIH
Input High Threshold Voltage 2.7 -- 3.3 VDC
CMOS (High)
Interface VIL
Input Low Threshold Voltage 0 -- 0.6 VDC
(Low)
Backlight Power Consumption
PBL 49 51.5 54 Watt
(Refer to Section: 3.7)
Life Time 50000 -- Hours 5
Note :
1. The ripple voltage should be controlled under 10% of VCC
2. Test Condition:
(1) VDD = 12.0V
(2) Fv = 60Hz
(3) FCLK = 80MHz
(4) Temperature = 25
(5) Test Pattern : White Pattern
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
3. Measurement condition : Rising time = 400us
9''
*1'
s
4. VICM = 1.25V
9 7+
9 ,&0
97/
9
5. Specified values are for a single lamp only which is aligned horizontally. The lifetime is defined as the
time which luminance of the lamp is 50% compared to its original value.
