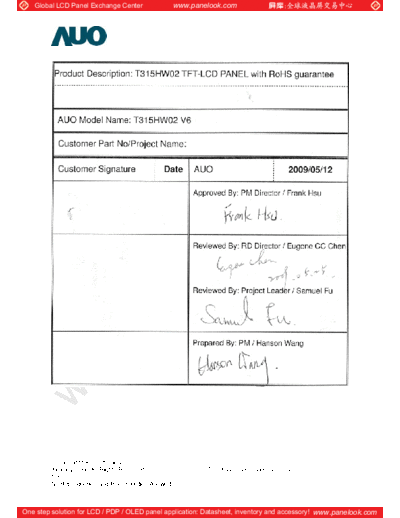

Image preview - the first page of the document
![Panel_AUO_T315HW02_V6_0_[DS]](/pics/5c36b49aa248a.gif)
>> Download Panel_AUO_T315HW02_V6_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T315HW02 V6 - Spec. Ver 0.4
1/32
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Document Version : 0.4
Date : 2008/5/12
Product Specifications
31.5" FHD Color TFT-LCD Module
Model Name: T315HW02 V6
() Preliminary Specifications
(*) Final Specifications
Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T315HW02 V6 - Spec. Ver 0.4
2/32
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Contents
No
COVER
CONTENTS
RECORD OF REVISIONS
1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTREISTICS
3-2 INTERFACE CONNECTIONS
3-3 SIGNAL TIMING SPECIFICATIONS
3-4 SIGNAL TIMING WAVEFORMS
3-5 COLOR INPUT DATA REFERNECE
3-6 POWER SEQUENCE
4 OPTICAL SPECIFICATIONS
5 MECHANICAL CHARACTERISTICS
6 RELIABLITY
7 INTERNATIONAL STANDARDS
8 PACKING
9 PRECAUTIONS
Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T315HW02 V6 - Spec. Ver 0.4
3/32
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Record of Revision
Version Date No Old Description New Description Remark
0 2009/3/23 First issue
0.1 2009/4/10 3.6.1 Power Sequence for LCD Power Sequence for LCD
T2 min = 0.1 T2 min = 2000, max = 2050
0.2 2009/4/14 Update TBD items
0.3 2009/4/27 3-1 Electrical Characteristics Icc Max = 1.4A
Update Max Value Pc Max = 16.6W
3-3 Signal Timing Specifications
Update Timing Table
3.6.1 Power Sequence for LCD Power Sequence for LCD
Value Values
Parameter Units Parameter Unit
Min. Typ. Max. Min. Typ. Max.
T1 0.4 --- 30 ms t1 0.4 -- 30 ms
T2 2000 --- 2050 ms t2 2480 -- 2980 ms
T3 300 --- --- ms t3 1300 -- -- ms
T4 10 --- --- ms t4 10 -- -- ms
T5 0.1 --- 50 ms t5 0.1 -- 50 ms
T6 --- --- 300 ms t6 -- -- 300 ms
T7 500 --- --- ms t7 500 -- -- ms
t8 2500 -- -- ms
t9 100 -- -- ms
0.4 2009/5/12 5 Mechanical Characteristics: Mechanical Characteristics
Old 2D drawing Updated 2D drawing
Final Spec
Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T315HW02 V6 - Spec. Ver 0.4
4/32
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
1. General Description
This specification applies to the 31.5 inch Color TFT-LCD Module T315HW02 V6. This LCD
module has a TFT active matrix type liquid crystal panel 1920x1080 pixels, and diagonal size of
31.5 inch. This module supports 1920x1080 HDTV mode (Non-interlace).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical
stripes. Gray scale or the brightness of the sub-pixel color is determined with an 8-bit gray scale
signal for each dot.
The T315HW02 V6 has been designed to apply the 8-bit 2 channel LVDS interface method. It is
intended to support displays where high brightness, wide viewing angle, high color saturation, and
high color depth are very important.
The T315HW02 V6 model is RoHS verified which can be distinguished on panel label.
* General Information
Items Specification Unit Note
Active Screen Size 31.55 inches
Display Area 698.4 (H) x 392.85 (V) mm
Outline Dimension 760.0(H) x 450.0(V) x 45(D) mm With inverter
Driver Element a-Si TFT active matrix
Display Colors 16.7M Colors
Number of Pixels 1920x1080 Pixel
Pixel Pitch 0.36375 mm
Pixel Arrangement RGB vertical stripe
Display Mode Normally Black
Surface Treatment AG, 3H Haze = 11%
Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T315HW02 V6 - Spec. Ver 0.4
5/32
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
2. Absolute Maximum Ratings
The following are maximum values which, if exceeded, may cause permanent damage to the unit.
Item Symbol Min Max Unit Conditions
Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] Note 1
Input Voltage of Signal Vin -0.3 3.6 [Volt] Note 1
BLU Input Voltage VDDB -0.3 28 [Volt] Note 1
BLU Brightness Control Voltage Vdim -0.3 7.0 [Volt] Note 1
Operating Temperature TOP 0 +50 [oC] Note 2
Operating Humidity HOP 10 90 [%RH] Note 2
o
Storage Temperature TST -20 +60 [ C] Note 2
Storage Humidity HST 10 90 [%RH] Note 2
o
Panel Surface Temperature PST 65 [ C] Note 3
Note 1: Duration:50 msec.
Note 2 : Maximum Wet-Bulb should be 39 and No condensation.
The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At temperatures greater
than 40 , the wet bulb temperature must not exceed 39 .
Note 3: Surface temperature is measured at 50 Dry condition
Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T315HW02 V6 - Spec. Ver 0.4
6/32
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
3. Electrical Specification
The T315HW02 V5 requires two power inputs. One is employed to power the LCD electronics and to drive the TFT
array and liquid crystal. The second input power for the BLU, is to power inverter..
3-1 Electrical Characteristics
Parameter Values
Unit Notes
Min Typ Max
LCD:
Power Supply Input Voltage Vcc 10.8 12 13.2 Vdc 1
Power Supply Input Current Icc - 1.1 1.4 A 2
Power Consumption Pc - 13.2 16.8 Watt 2
Inrush Current IRUSH - - 6 Apeak 3
Differential Input High Threshold
VTH 100 mV 4
Voltage
LVDS
Differential Input Low Threshold
Interface VTL -100 mV 4
Voltage
Common Input Voltage VCIM 1.10 1.25 1.40 V 4
VIH
Input High Threshold Voltage 2.4 3.3 Vdc
CMOS (High)
Interface VIL
Input Low Threshold Voltage 0 0.7 Vdc
(Low)
Backlight Power Consumption PDDB 63.5 67 70.5 Watt
Life Time 50,000 Hours 6
Note :
1. The ripple voltage should be controlled under 10% of VCC
2. Vcc=12.0V, f v = 60Hz, fCLK=81.5Mhz , 25 , Test Pattern : White Pattern
3. Measurement condition :
Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T315HW02 V6 - Spec. Ver 0.4
7/32
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
4. VCIM = 1.2V
5. The performance of the Lamp in LCD panel, for example life time or brightness, is extremely influenced by the
characteristics of the DC-AC Inverter. So all the parameters of an inverter should be carefully designed as not
to produce too much leakage current from high-voltage output of the inverter. When you design or order the
inverter, please make sure unwanted lighting caused by the mismatch of the lamp and the inverter (no lighting,
flicker, etc) never occurs. After confirmation, the LCD panel should be operated in the same condition as
installed in your instrument.
6. Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting tape, TFT-LCD
Module have a low luminance and the inverter has abnormal action because leakage current occurs between
lamp wire and conducting tape.
7. The relative humidity must not exceed 80% non-condensing at temperatures of 40 or less. At temperatures
greater than 40 , the wet bulb temperature must not exceed 39 . When operate at low temperatures, the
brightness of CCFL will drop and the life time of CCFL will be reduced.
Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T315HW02 V6 - Spec. Ver 0.4
8/32
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
3-2 Interface Connections
Connector on Panel: JAE FI-RE51S-HF (Manufactured by JAE)
Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T315HW02 V6 - Spec. Ver 0.4
9/32
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T315HW02 V6 - Spec. Ver 0.4
10/32
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LVDS_SEL = High/Open, NS mode
(X = O E)
LVDS_SEL = Low (0V) , JEIDA mode
(X = O E)
Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T315HW02 V6 - Spec. Ver 0.4
11/32
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
3-3 Signal Timing Specifications
This is the signal timing required at the input of the User connector. All of the interface signal timing should be satisfied
with the following specifications for it's proper operation.
* Timing Table
Vertical Frequency:
Signal Item Symbol Min. Typ. Max Unit
Period TV 1100 1125 1200 TH
Active TDISP (V) 1080 TH
Blanking TBLK (V) 20 45 120 TH
Vertical Section
Front porch Tfp(V) 1 4 110 TH
Back porch Tbp(V) 1 36 110 TH
9BV\QF TVsync_wdth 2 5 110 TH
Period TH 1050 1100 1150 TCLK
Active TDISP (H) 960 TCLK
Blanking TBLK (H) 90 140 190 TCLK
Horizontal Section
Front porch Tfp(H) 5 44 180 TCLK
Back porch T(H) 5 74 180 TCLK
+BV\QF 7+V\QFBZGWK 5 22 180 TCLK
Period TCLK 13.47 ns
LVDS Clock
Frequency FCLK 70.875 74.25 76 MHz
Vertical Frequency Frequency FV 59.5 60 60.5 Hz
Horizontal Frequency Frequency FH 66 67.5 72 KHz
Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T315HW02 V6 - Spec. Ver 0.4
12/32
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
3-4 Signal Timing Waveforms
Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T315HW02 V6 - Spec. Ver 0.4
13/32
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
3-5 Color Input Data Reference
The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input for the color; the
higher the binary input, the brighter the color. The table below provides a reference for color versus data input.
COLOR DATA REFERENCE
Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T315HW02 V6 - Spec. Ver 0.4
14/32
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
3-6 Power Sequence for LCD Module
3.6.1 Power Sequence for LCD
Values
Parameter Unit
Min. Typ. Max.
t1 0.4 -- 30 ms
t2 2480 -- 2980 ms
t3 1300 -- -- ms
t4 10 -- -- ms
t5 0.1 -- 50 ms
t6 -- -- 300 ms
t7 500 -- -- ms
t8 2500 -- -- ms
t9 100 -- -- ms
Note:
The timing controller will not be damaged in case of TV set AC input power suddenly shut down.
Once power reset, it should follow power sequence as spec. definition.
(1) Apply the lamp voltage within the LCD operation range. When the back-light turns on before the LCD operation or
the LCD turns off before the back-light turns off, the display may momentarily become abnormal screen.
Copyright AU Optronics, Inc.
January, 2008 All Rights Reserved. T315HW02 V6 - Spec. Ver 0.4
15/32
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
3-7 Backlight Power Specification for LCD Module
3.7.1 Electrical specification
Spec
Item Symbol Condition Unit Note
Min Typical Max
Input Voltage VDDB 21.6 24 26.4 VDC
Input Current IDDB VDDB=24V - 2.79 ADC 1
Input Power PDDB VDDB=24V - 67 W 1
Inrush current IRUSH VDDB=24V - - 6 ADC 2
Output Frequency FBL VDDB=24V 53.5 55 56.5 KHz
ON 2 - 5.25 VDC
On/Off control voltage VBLON VDDB=24V
OFF 0 - 0.8
Dimming Control Voltage VDIM MAX VDDB=24V 0 - 3.3 VDC
Internal Dimming Ratio DIM_R 10 100 %
MAX VDDB=24V 2 3.3 VDC
PWM control Voltage V_EPWM
MIN VDDB=24V 0 0.8
External PWM control I_EPWM VDDB=24V mADC
2
Current
External PWM Duty ratio D_EPWM VDDB=24V 10 100 % 3
External PWM Frequency F_EPWM VDDB=24V 120 180 240 Hz
Note1 : VDIM= 3.3V (MAX) Ta=25◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
