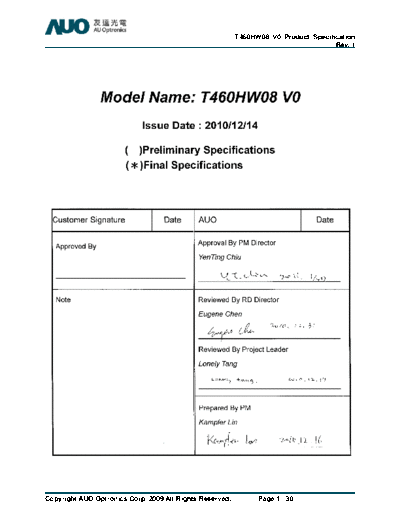

Image preview - the first page of the document
![Panel_AUO_T460HW08_V0_2_[DS]](/pics/5c8eb6f053522.gif)
>> Download Panel_AUO_T460HW08_V0_2_[DS] documenatation <<
Text preview - extract from the document
T460HW08 V0 Product Specification
Rev. 1
Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 1 / 30
T460HW08 V0 Product Specification
Rev. 1
Contents
No
CONTENTS
RECORD OF REVISIONS
1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
3 ELECTRICAL SPECIFICATION
3-1 ELECTRIACL CHARACTERISTICS
3-2 INTERFACE CONNECTIONS
3-3 SIGNAL TIMING SPECIFICATION
3-4 SIGNAL TIMING WAVEFORM
3-5 COLOR INPUT DATA REFERENCE
3-6 POWER SEQUENCE
3-7 BACKLIGHT SPECIFICATION
4 OPTICAL SPECIFICATION
5 MECHANICAL CHARACTERISTICS
6 RELIABILITY TEST ITEMS
7 INTERNATIONAL STANDARD
7-1 SAFETY
7-2 EMC
8 PACKING
8-1 DEFINITION OF LABEL
8-2 PACKING METHODS
8-3 PALLET AND SHIPMENT INFORMATION
9 PRECAUTION
9-1 MOUNTING PRECAUTIONS
9-2 OPERATING PRECAUTIONS
9-3 ELECTROSTATIC DISCHARGE CONTROL
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE
9-5 STORAGE
9-6 HANDLING PRECAUTIONS FOR PROTECT FILM
Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 2 / 30
T460HW08 V0 Product Specification
Rev. 1
Record of Revision
Version Date Page Description
0 201011/29 First release
1 2011/4/11 26, 27 Update ME Front View and Back View
Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 3 / 30
T460HW08 V0 Product Specification
Rev. 1
1. General Description
This specification applies to the 46 inch Color TFT-LCD Module T460HW08 V0. This LCD module has a TFT
active matrix type liquid crystal panel 1920 x 1080 pixels, and diagonal size of 46 inch. This module supports 1920
x 1080 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical
stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
The T460HW08 V0 has been designed to apply the 8-bit 2 channel LVDS interface method. It is intended to
support displays where high brightness, wide viewing angle, high color saturation, and high color depth are very
important.
* General Information
Items Specification Unit Note
Active Screen Size 46 inch
Display Area 1018.08(H) x 572.67(V) mm
Outline Dimension 1083.0(H) x 627.0(V) x 59.0(D) mm With Inverter
Driver Element a-Si TFT active matrix
Display Colors 8 bit, 16.7M Colors
Number of Pixels 1920 x 1080 Pixel
Pixel Pitch 0.53025 mm
Pixel Arrangement RGB vertical stripe
Display Operation Mode Normally Black
Surface Treatment Anti-Glare, 3H Haze=2%
Rotate Function Achievable Note 1
Note 1: Rotate Function refers to LCD display could be able to rotate.
Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 4 / 30
T460HW08 V0 Product Specification
Rev. 1
Absolute Maximum Ratings
The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit
Item Symbol Min Max Unit Conditions
Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] Note 1
Input Voltage of Signal Vin -0.3 4 [Volt] Note 1
BLU Input Voltage VDDB -0.3 28 VDC Note 1
BLU on/off Control Voltage VBLON -0.3 7 VDC Note 1
BLU Brightness Control Voltage Vdim -0.3 7 VDC Note 1
o
Operating Temperature TOP 0 +50 [ C] Note 2
Operating Humidity HOP 10 90 [%RH] Note 2
o
Storage Temperature TST -20 +60 [ C] Note 2
Storage Humidity HST 10 90 [%RH] Note 2
o
Panel Surface Temperature PST - 65 [ C] Note 3
Note 1: Duration:50 msec.
Note 2 : Maximum Wet-Bulb should be 39 and No condensation.
The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At temperatures
greater than 40 , the wet bulb temperature must not exceed 39 .
Note 3: Surface temperature is measured at 50 Dry condition
Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 5 / 30
T460HW08 V0 Product Specification
Rev. 1
3. Electrical Specification
The T460HW08 V0 requires two power inputs. One is employed to power the LCD electronics and to drive the TFT
array and liquid crystal. The second input for BLU is to power inverter.
3.1 Electrical Characteristics
3.1.1: DC Characteristics
Value
Parameter Symbol Unit Note
Min. Typ. Max
LCD
Power Supply Input Voltage VDD 10.8 12 13.2 VDC
Power Supply Input Current IDD -- 1 1.2 A 1
Power Consumption PC -- 12 14.4 Watt
Inrush Current IRUSH -- -- 4 A 2
Input Differential Voltage VID 200 400 600 mVDC 3
LVDS Differential Input High Threshold Voltage VTH +100 -- +300 mVDC 3
Interface
Differential Input Low Threshold Voltage VTL -300 -- -100 mVDC 3
Input Common Mode Voltage VICM 1.1 1.25 1.4 VDC 3
VIH
CMOS Input High Threshold Voltage 2.7 -- 3.3 VDC 4
(High)
Interface VIL
Input Low Threshold Voltage 0 -- 0.6 VDC 4
(Low)
Backlight Power Consumption PBL 114 120 126 Watt
Life Time 50,000 -- Hours 9,10
3.1.2: AC Characteristics
Value
Parameter Symbol Unit Note
Min. Typ. Max
Input Channel Pair Skew Margin tSKEW (CP) -500 -- +500 ps 5
Receiver Clock : Spread Spectrum Fclk Fclk
Fclk_ss -- MHz 6
Modulation range -3% +3%
LVDS
Interface Receiver Clock : Spread Spectrum
Fss 30 -- 200 KHz 6
Modulation frequency
Receiver Data Input Margin
Fclk = 85 MHz tRMG -0.4 -- 0.4 ns 7
Fclk = 65 MHz -0.5 -- 0.5
Note:
1. VDD = 12.0V, Fv = 60Hz, Fclk= 82MHz , 25 , Test Pattern : White Pattern
2. Measurement condition : Rising time = 400us
Copyright AUO Optronics Corp. 2009 All Rights Reserved. Page 6 / 30
T460HW08 V0 Product Specification
Rev. 1
VDD
90%
10%
GND
