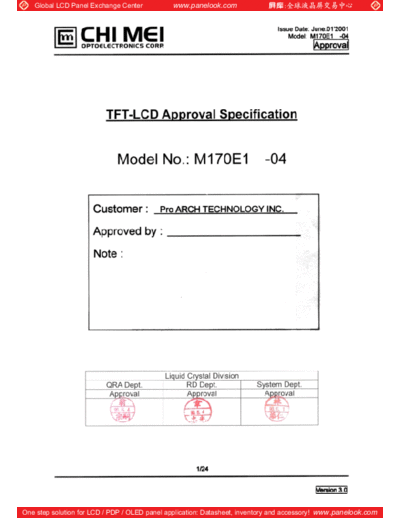

Image preview - the first page of the document
![Panel_CHIMEI_INNOLUX_M170E1-04_0_[DS]](/pics/5c8ebb23348f4.gif)
>> Download Panel_CHIMEI_INNOLUX_M170E1-04_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issue Date: June.01'2001
Model: M170E1 -04
Approval
CONTENTS
REVISION HISTORY
GENERAL DESCRIPTION
1. ABSOLUTE MAXIMUM RATINGS
1.1 ABSOLUTE RATINGS OF ENVIRONMENT
1.2 ELECTRICAL ABSOLUTE RATINGS
2. ELECTRICAL SPECIFICATIONS
2.1 TFT LCD MODULE
2.2 BACKLIGHT UNIT
3. BLOCK DIAGRAM
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. INTERFACE SPECIFICATIONS
4.1 THE LVDS INTERFACE SIGNAL DESCRIPTION
4.2 AC TIMING SPECIFICATIONS ( DE only mode )
4.3 COLOR DATA INPUT ASSIGNMENT
5. OPTICAL CHARACTERISTICS
5.1 TEST CONDITIONS
5.2 OPTICAL SPECIFICATIONS
6. OUTLINE DIMENTION
7. PRECAUTION
7.1 ASSEMBLY AND HANDLING PRECAUTION
7.2 SAFETY PRECAUTION
8. 8. PACKAGING
8.1 PACKING SPECIFICATIONS
8.2 PACKING Method
2/24
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issue Date: June.01'2001
Model: M170E1 -04
Approval
9. INCOMING INSPECTION DA
10. DEFINITION OF SHIPPING LABEL ON MODULE
3/24
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issue Date: June.01'2001
Model: M170E1 -04
Approval
REVISION HISTORY
Version Date Description
Ver3.0 Jun.01,'00 Issue Approval Specification for Pro ARCH.
4/24
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issue Date: June.01'2001
Model: M170E1 -04
Approval
GENERAL DESCRIPTION
OVERVIEW
This product is a 17.0" TFT Liquid Crystal Display Module with 2 dual CCFLs Backlight unit and 30 pins
LVDS interface. This module supports 1280 x 1024 SXGA mode and can display 16 million colors. The
inverter module for Backlight is not built in.
FEATURES
-SXGA (1280x1024 pixels) resolution
-2 dual CCFLs (Cold Cathode Fluorescent Lamp)
-DE only Mode
-LVDS (Low Voltage Differential Signaling) Interface
APPLICATION
-TFT-LCD Monitor
GENERAL SPECIFICATI0NS
Item Spec. Unit
Screen Size 17.0 Diagonal inch
Bezel Opening Area 342.0(H) x 274.4(V) mm
Effective Display Area 337.92(H) x 270.34(V) mm
Driver Element a-si TFT active matrix -
Pixel Number 1280 x R.G.B. x 1024 pixel
Pixel Pitch 0.264(H) x 0.264(W) mm
Pixel Arrangement RGB vertical stripe -
Display Colors 16M color
Transmissive Mode Normally White -
Surface Treatment Haze 25%,Hard-Coating,Anti-static -
MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit
Horizontal(H) 403.5 404 404.5 mm
Module Size Vertical(V) 321.7 322.2 322.7 mm
Depth(D) - - 21 mm
Weight - 2,000 2,150 g
5/24
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issue Date: June.01'2001
Model: M170E1 -04
Approval
1. ABSOLUTE MAXIMUM RATINGS
1.1 ABSOLUTE RATINGS OF ENVIRONMENT
Values
Item Symbol Unit Note
Min. Max.
Storage temperature Tst -20 +60 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
