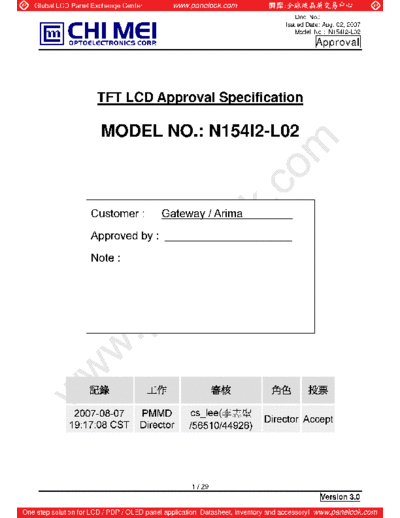

Image preview - the first page of the document
>> Download Panel_CMO_N154I2-L02_10_[DS] documenatation <<Text preview - extract from the document Global LCD Panel Exchange Center www.panelook.com
Doc No.:
Issued Date: Aug. 02, 2007
Model No.: N154I2-L02
Approval
TFT LCD Approval Specification
MODEL NO.: N154I2-L02
Customer : Gateway / Arima
Approved by :
Note :
2007-08-07 PMMD cs_lee(
Director Accept
19:17:08 CST Director /56510/44926)
1 / 29
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Doc No.:
Issued Date: Aug. 02, 2007
Model No.: N154I2-L02
Approval
-CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION ------------------------------------------------------- 4
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 10
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 11
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
5.5 EDID DATA STRUCTURE
5.6 EDID SIGNAL SPECIFICATION
6. INTERFACE TIMING ------------------------------------------------------- 19
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 21
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS ------------------------------------------------------- 25
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS
9. PACKING ------------------------------------------------------- 26
9.1 CARTON
9.2 PALLET
10. DEFINITION OF LABELS ------------------------------------------------------- 28
10.1 CMO MODULE LABEL
10.2 CARTON LABEL
2 / 29
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Doc No.:
Issued Date: Aug. 02, 2007
Model No.: N154I2-L02
Approval
REVISION HISTORY
Page
Version Date Section Description
(New)
Ver 0.0 Nov.11, 2005 All All Tentative specification first issued.
Ver 0.1 Jan, 03 2006 4 1.5 Weight reduce from 600g to 540g
6 2.2.2 Lamp current: Typ./6.0mA, Max./6.5mA
7 3.1 Power Supply Current reduce
9 3.2 BACKLIGHT UNIT Lamp Current: Typ./6.0mA, Max./6.5mA
19 7.2 OPTICAL SPCIFICATION, Luminance definition revise
Ver 2.0 Feb.14, 2006 9 3.2 Backlight Unit
14 5.5 EDID Data
20 7.2 Optical Specifications
27 10.2 Carton label
Ver 3.0 Aug.02, 2007 4 1.2 Features
