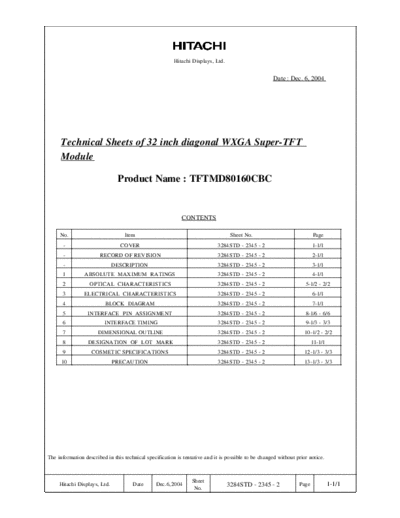

Image preview - the first page of the document
![Panel_HITACHI_TFTMD80160CBC_0_[DS]](/pics/5c8edc4299a28.gif)
>> Download Panel_HITACHI_TFTMD80160CBC_0_[DS] documenatation <<
Text preview - extract from the document
Hitachi Displays, Ltd.
Date : Dec. 6, 2004
Technical Sheets of 32 inch diagonal WXGA Super-TFT
Module
Product Name : TFTMD80160CBC
CONTENTS
No. Item Sheet No. Page
- COVER 3284STD - 2345 - 2 1-1/1
- RECORD OF REVISION 3284STD - 2345 - 2 2-1/1
- DESCRIPTION 3284STD - 2345 - 2 3-1/1
1 ABSOLUTE MAXIMUM RATINGS 3284STD - 2345 - 2 4-1/1
2 OPTICAL CHARACTERISTICS 3284STD - 2345 - 2 5-1/2 - 2/2
3 ELECTRICAL CHARACTERISTICS 3284STD - 2345 - 2 6-1/1
4 BLOCK DIAGRAM 3284STD - 2345 - 2 7-1/1
5 INTERFACE PIN ASSIGNMENT 3284STD - 2345 - 2 8-1/6 - 6/6
6 INTERFACE TIMING 3284STD - 2345 - 2 9-1/3 - 3/3
7 DIMENSIONAL OUTLINE 3284STD - 2345 - 2 10-1/2 - 2/2
8 DESIGNATION OF LOT MARK 3284STD - 2345 - 2 11-1/1
9 COSMETIC SPECIFICATIONS 3284STD - 2345 - 2 12-1/3 - 3/3
10 PRECAUTION 3284STD - 2345 - 2 13-1/3 - 3/3
The information described in this technical specification is tentative and it is possible to be changed without prior notice.
Sheet
Hitachi Displays, Ltd. Date Dec.6,2004 3284STD - 2345 - 2 Page 1-1/1
No.
RECORD OF REVISION
The upper section : Before revision
Date The lower section : After revision Summary
Sheet No. Page
3284STD - 2343 - 1
Dec. 6,2004 7 - 1/1 Change of Back light unit
3284STD - 2343 - 2
3284STD - 2343 - 1 10 - 1/2 -
Dec. 6,2004 Change of front view and back view
3284STD - 2343 - 2 2/2
Sheet
Hitachi Displays, Ltd. Date Dec.6,2004 3284STD - 2345 - 2 Page 2-1/1
No.
DESCRIPTION
The following specifications are applied to the following Super-TFT module.
Note : Inverter for back light unit is built in this module.
Product Name : TFTMD80160CBC
General Specifications
Effective Display Area : (H)697.6845◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
